Home > Products > Locking assembly > Expansion Bush RLK 132 Locking Elements With Short Axial Width

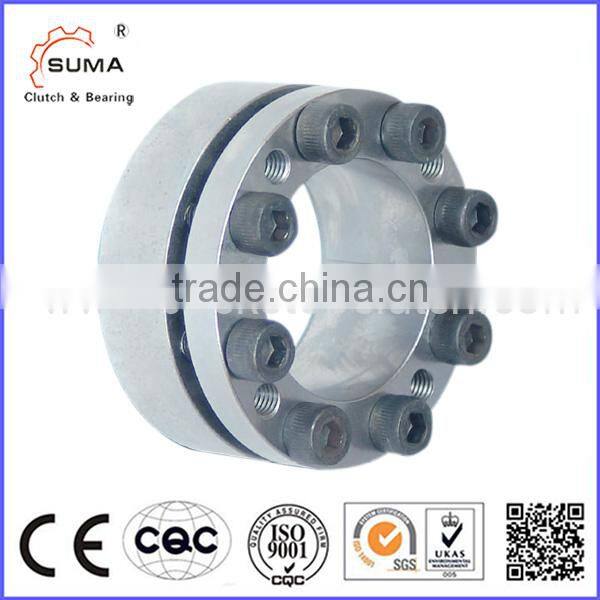

Expansion Bush RLK 132 Locking Elements With Short Axial Width
- Shanghai; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Locking Parts RLK 130 Clamping Sheath With High Torque
-
No Axial Displacement Expansion Sleeve RLK 131 Locking Device
-
Radial Flat Height Taper Lock Hub and Adapter RLK 110K
-
Lock Assembly RLK 110 Taper Lock Hub Capt Lock With Radial Flat Height
-
Keyless Shaft-hub-connections Lock Disk RLK603
-
Non-key Connection Stainess Steel Shaft Locking Assembly RLK603
Product Details
| Structure | Disc | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Steel | |
| Brand Name | Suma | Place of Origin | Jiangsu, China | |
| Model Number | RLK 132 |
Product Description
| Expansion Bush RLK 132 Locking Elements with Short Axial Width | ||
| Details | ||
| Model | RLK132 | |
| Material | steel | |
| Type | cone clamping element | |
| Inner Diameter | 20mm | |
| Outer Diameter | 47mm | |
| Weight | 0.3kg | |
| Width | 34mm | |
| Transmissible torque | 410Nm | |
| axial force | 41kN | |
Features
1.Centres the shaft to the hub
2.High transmissible torques
3.Short axial width
4. For shaft diameters between 20 mm and 200 mm
specifications

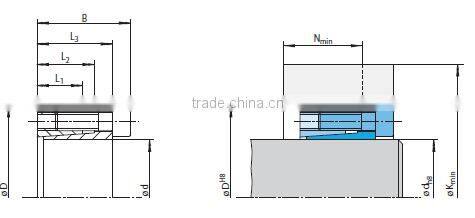

Application example
Backlash free connection of a belt pulley to the drive shaft with a Cone Clamping Element RLK
132. The Cone Clamping Element also centres the pulley to the shaft. The compact Cone Clamping Element is a cost-efficient solution especially for applications with low space requirements.
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Q: Why do we choose your company?
A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
