Home > Products > dump truck hydraulic cylinder > Double Acting Hydraulic Cylinder for Tipper Truck / Telescope Cylinder
Double Acting Hydraulic Cylinder for Tipper Truck / Telescope Cylinder
- QINGDAO
- T/T Credit Card
You May Like
-
Telescopic Hydraulic Systems for Trucks/hydraulic Cylinder for Dump Truck
-
Hydraulic Telescopic Cylinder for Tipper Truck , Hydraulic Systems for Trucks , Truck Hoist
-
Front Pushed Telescopic Hydraulic Cylinder for Dump Truck
-
50 Ton Hydraulic Cylinder , Cylinder Hone , Farm Tractor Parts
-
Dump Truck Telescopic Hydraulic Cylinder Manufacturer
-
Front-end Telescopic Hydraulic Cylinder for Dump Truck
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Hydraulic | Body Material | Steel | |
| Maximum Stroke | 4000mm | Shaft Diameter | 28-320mm | |
| Place of Origin | Shandong, China | Brand Name | Shandong Wantong |
Product Description
double acting hydraulic cylinder for tipper truck
Technical Specifications
Double acting hydraulic cylinder for tipper truck special design
1) end cushioning
2) integrated displacement
3) integrated proximity switches
4) valve mounting faces
5) flanged cover/bottom construction
6) complete 45 steel design
7) low friction seals
Work flow

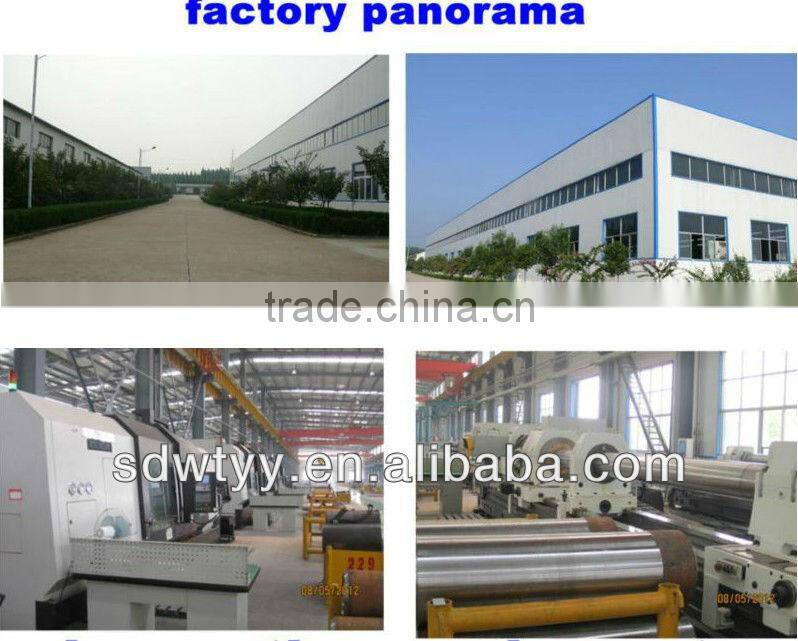

Factory overview
Founded in 2004, our skilled craftsmen, using the newest methods and technologies, allow us to produce the durable, high quality, hydraulic cylinders that today's industrial world demands. We offer a solid product, competitive prices, on-time deliveries, quick order to ship times and we stand behind our product before and after the sale. Whether a single, custom cylinder or a mass order, we can deliver hydraulic cylinders of the highest quality, the first time!
The products and services offered by us include a total design service coupled with full system testing. As an ISO certified (ISO 9001-2008) company, we are confident of meeting the quality requirements of our valued customers.
our certificate
We also customize cylinder for our customer. Welcome you to visit our factory anytime
