Multi Stage Hydraulic Cylinder for Construction Truck

multi stage hydraulic cylinder for construction truck

Telescopic Hydraulic Cylinder is applicable to large tonnage front lifting system.

It works together with hydraulic pump, reversing valve and limit valve to lift, pause and lower the truck carriage.It can be designed and manufactured according to customer’s requirements.

Specification:

Company introduction:

We are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R&D, and manufacturing of hydraulic machinery products. Our factory covers an area of 180,000 square meters with 600 employees in it. Its annual production capacity is 200,000 sets with 700 sets of manufacturing equipment.

Company Information

  We are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R & D and manufacturing of hydraulic machinery products etc, with its annual production capaciy of 200000 sets.My company with 600 employees in it ,covers an area of 180000 square meters.There are 700 sets of mnufacturing equipment .

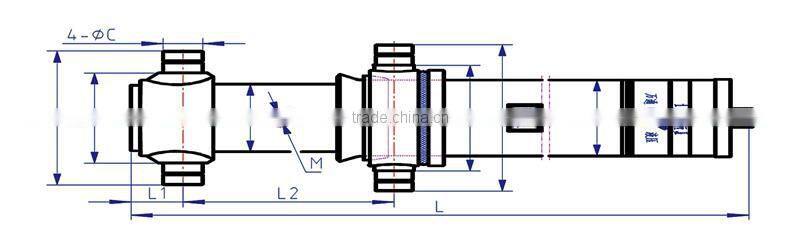

1. dump truck telescopic hydraulic cylinder parameter

hydraulic cylinder for dump truck , trail truck,garbage truck,crane

1.Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

2.underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

hydraulic cylinder for coal mine dump truck

3.Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.

4.Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.

5. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.

2.hydraulic cylinder products showcase

3.hydraulic cylinder produce line

700 sets manufacturing equipment,such as cold drawing production line ,heat treatment production line ,surface treatment production line,testing equipment,various digital-control machining equipment,gantry style linear electroplating production line.

4.hydraulic cylinder quality guarantee system

Program before Delivery

1. Trial Operation Test

2. Start-up Pressure Test

3. Pressure-Tight Test

4. Leak Test

5. Full Stroke Test

6. Buffer Test

7. Testing the Effect of Limit

8. Load Efficiency Test

9. Reliability Test

Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.

Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

5.packing

 6.certificates

FAQ

Q1:What's the brand name of your products ?

A:Generally,we use our own brand "WTJX",OEM is also available as required.

Q2:Hydraulic cylinder internal leakage?

A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to  bear the overload power.We have numerical control machine  to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3:Does your piston rod get ruptured easily?

A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.

Q4:Is your design reasonable? What about your product safe coefficient?

A:We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.

Q5:What about the quality feedback of your products?

A: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder. !!!

WE HAVE NEVER RECEIVED EVEN ONCE QUALITY COMPLAINT FOR MANY YEARS OF INTERNATIONAL TRADE.

Q6:Is the sample free?

A:Yes.In our acceptable range, we can offer a sample by charging freight. And we will return the fee after you place bulk order.

Q7:How about the delivery time?

A: Over 700 sets advanced equipments to meet customer's large demand in short delivery time.Generally ,it's 7-15 days.

Q8:What 's the after-service?

A:If the quality can’t meet your requirement ,we will pay all your lost and offer technical support to solve your problem!!!

Q9:How can I contact with you ?

A:Mobile phone:+86-15098698374 (Any time call available)
