Home > Products > dump truck hydraulic cylinder > hyva FE FC type hydraulic telescopic cylinder used for dump truck
hyva FE FC type hydraulic telescopic cylinder used for dump truck
- Qingdao
- T/T L/C D/P D/A
You May Like
-
underbody single-act T type hydraulic cylinder used for dump trailer
-
single-acting hydraulic tilting cylinders for hoppers
-
multi-stage underbody telescopic hydraulic ram for tipping trailer/hydraulic cylinder manufacturer
-
multi-stage underbody telescopic tipping cylinder for trailer
-
underbody single-act piston cylinder for dump truck
-
underbody single-act T type hydraulic piston cylinder for dump truck
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Hydraulic | Body Material | Steel | |
| Maximum Stroke | 9030mm | Shaft Diameter | 191/169/149/129/110 | |
| Place of Origin | Shandong, China | Model Number | FE191-5-06180/FC149-4-05180 | |
| Brand Name | WTJX |
Product Description
hyva FE FC type hydraulic telescopic cylinder used for dump truck
Company Information
We are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R & D and manufacturing of hydraulic machinery products etc, with its annual production capaciy of 200000 sets.My company with 600 employees in it ,covers an area of 180000 square meters.There are 700 sets of mnufacturing equipment .
1. dump truck telescopic hydraulic cylinder parameter
|
|
Bore Diameter | 2'-60'/50-1500mm |
Rod Diameter | 1' - 60'/25 -1500 mm |
Wall Thickness | 0.1'-4'/3-100 mm |
Max Stroke | 366'/9280 mm |
Max Pressure | 9600 psi/600 bar |
Test Pressure | 14500 psi/1000 bar |
Material | 20#,40#,45#,16Mn,27SiMn,etc |
Seal Kits | Hallite,Parker,NOK,SKF,DICHTOMATIK,Trelleborg,Merkel,etc |
Diamensional Accuracy | H7-H11 |
Bore Roughness | Ra 0.4-1.6mm |
Coating | hard chrome |
Purpose | Construction,metallurgical,mining,agricultural,forestry machinery,etc |
OEM | Yes |
MOQ | 1 Piece |
Certificates | ISO9001,ISO/TS16949,ABS,AQA,API,CCS,CCRI,DNV |

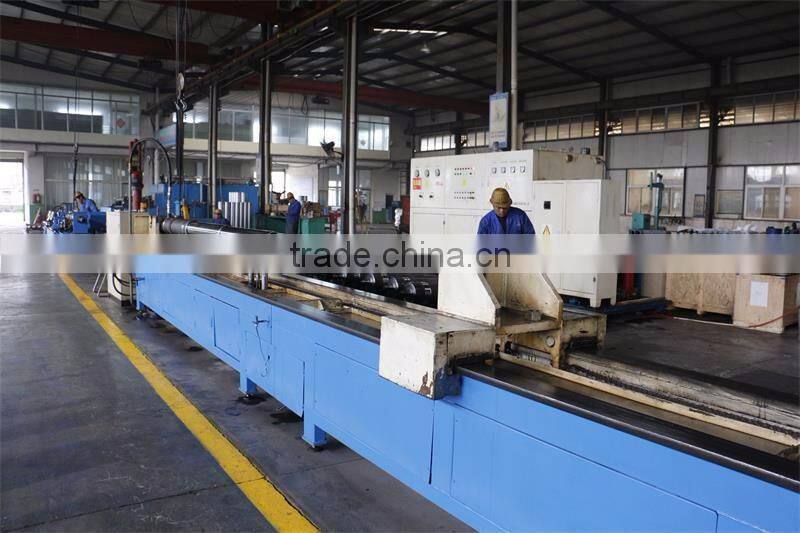

escopic hydraulic cylinder production line
700 sets manufacturing equipment,such as cold drawing production line ,heat treatment production line ,surface treatment production line,testing equipment,various digital-control machining equipment,gantry style linear electroplating production line.

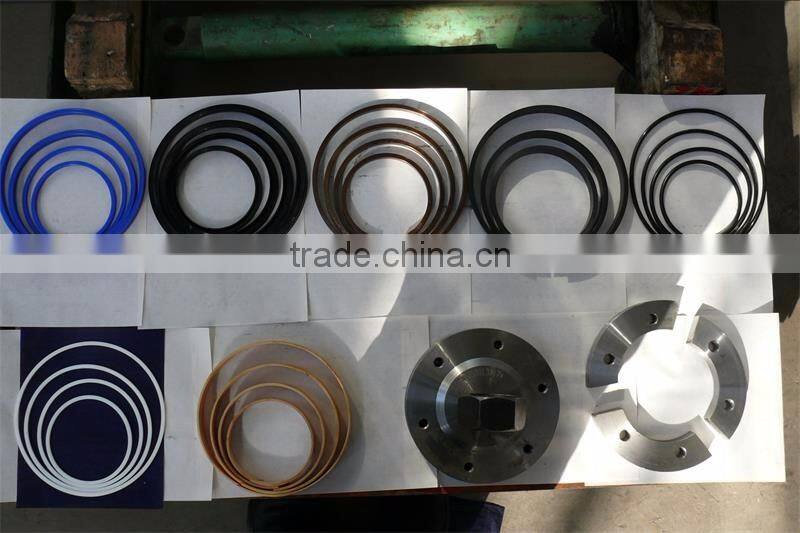

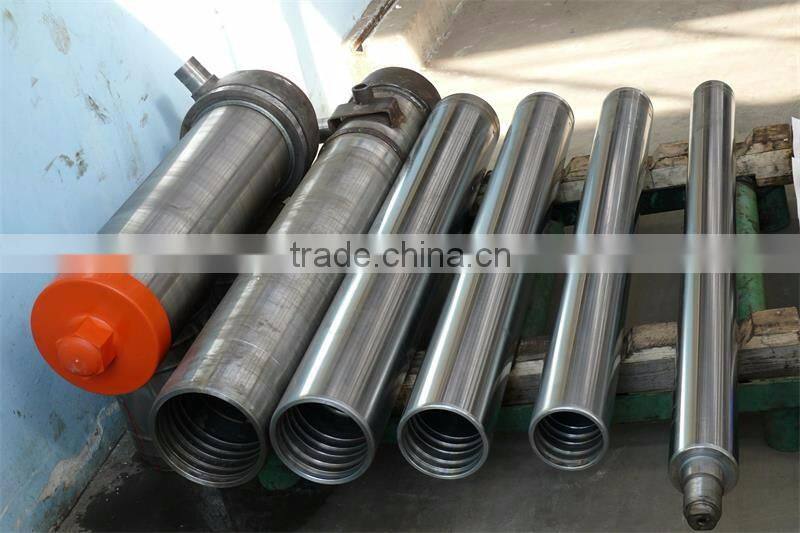

3. telescopic hydraulic cylinder parts
escopic hydraulic cylinder quality guarantee system

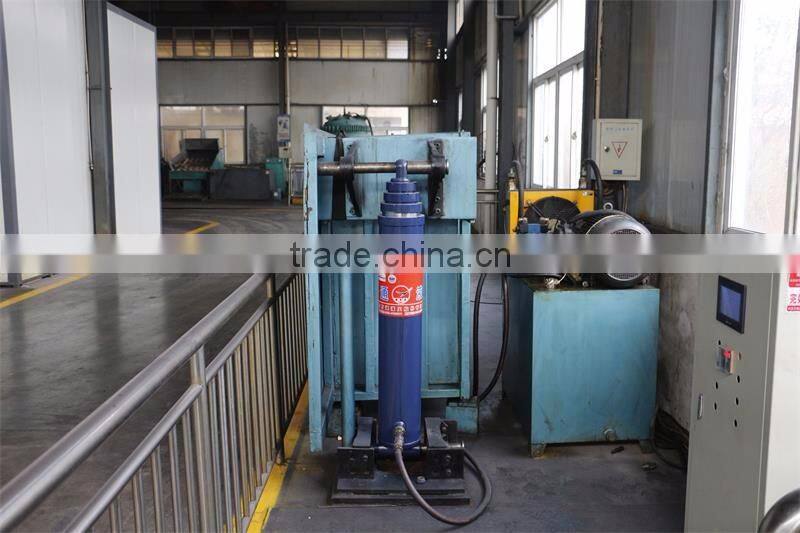

Test items before delivery:
1. Trial Operation Test; 2. Start-up Pressure Test; 3. Pressure-Tight Test; 4. Leak Test; 5. Full Stroke Test;
6. Buffer Test; 7. Testing the Effect of Limit; 8. Load Efficiency Test; 9. Reliability Test

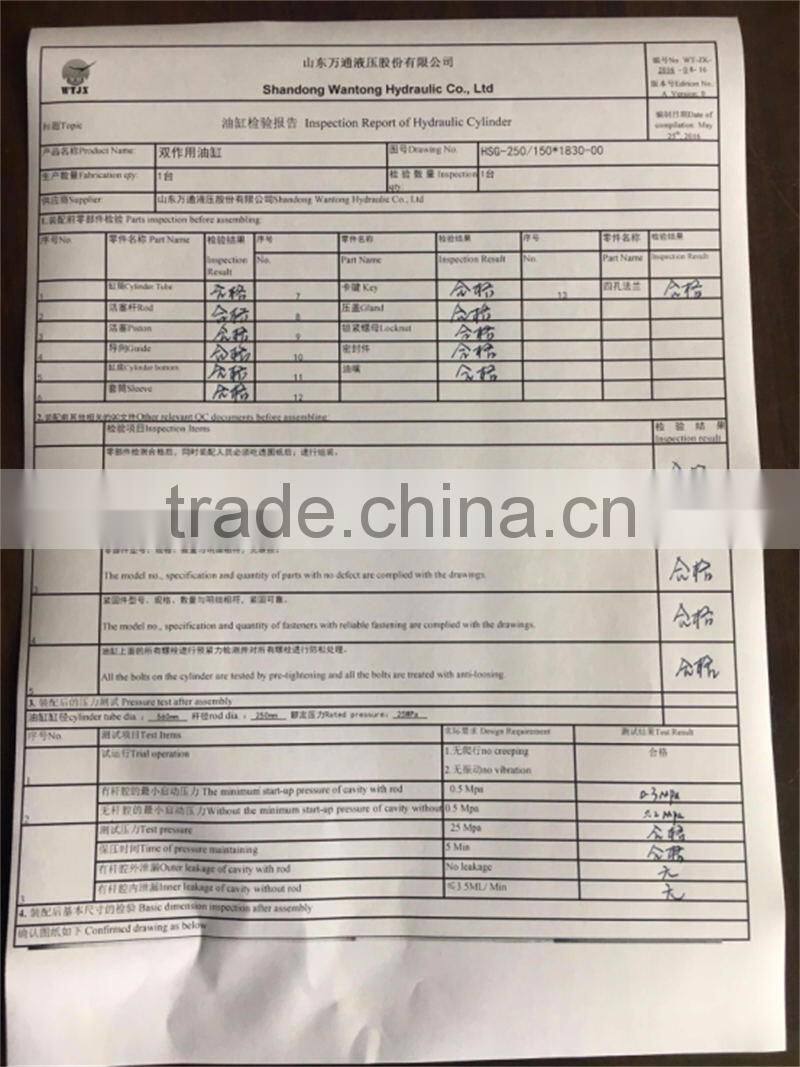

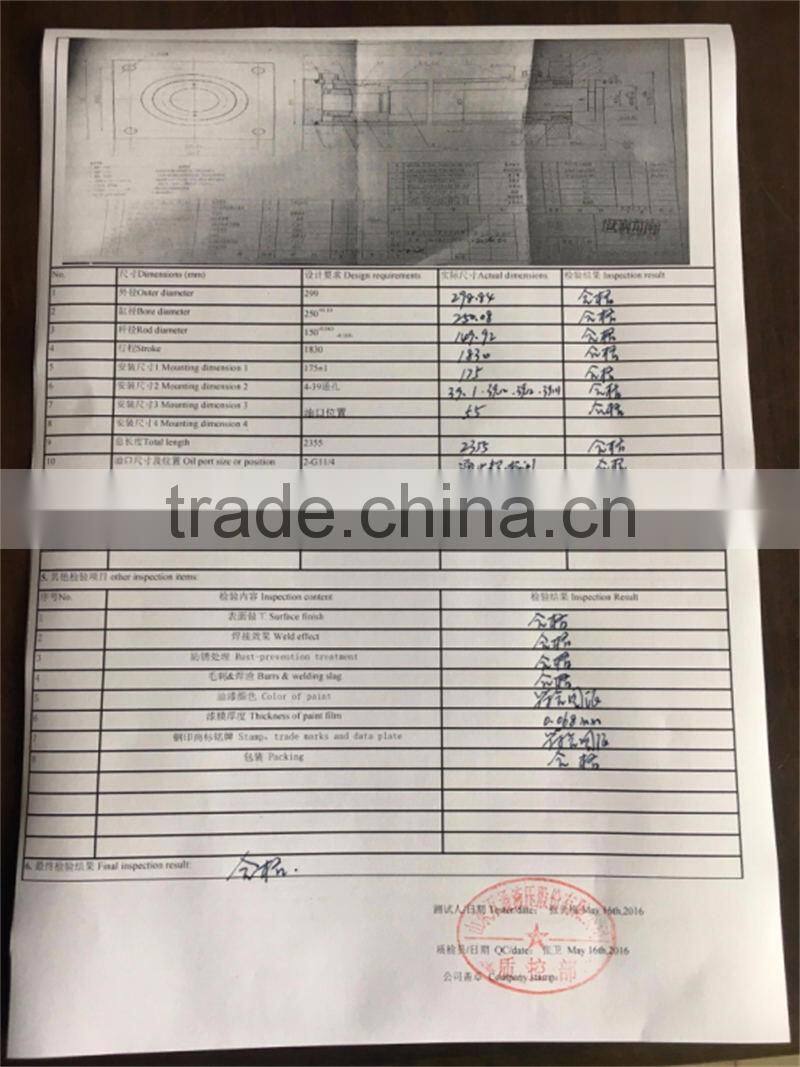

Factory inspection report for every piece of telescopic hydraulic cylinder:

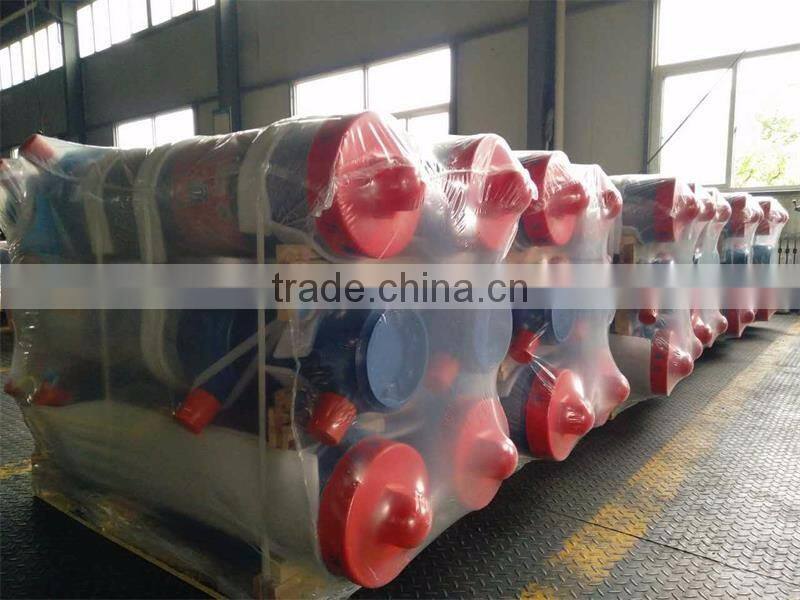

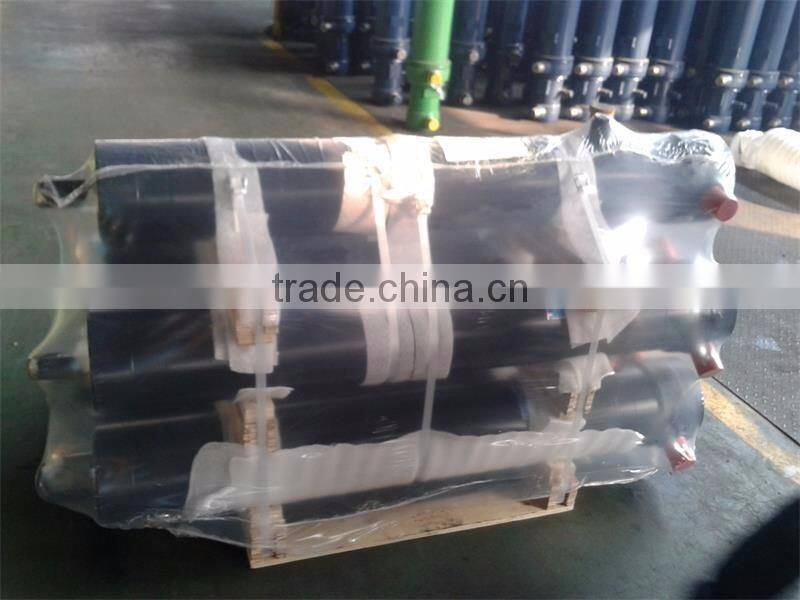

5. packing
6. Cooperative brands:
various telescopic hydraulic cylinder for your choice
