Home > Products > Bolt ,Nut,Washer,Stud > M20 Bolt Tension Control Bolt

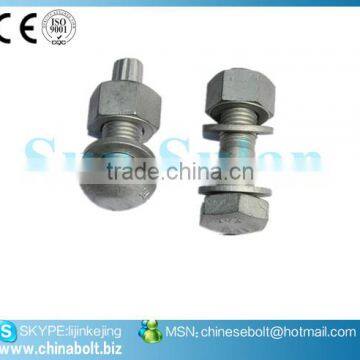

M20 Bolt Tension Control Bolt
- shanghai or ningbo port
You May Like
-
M24 Forging Bolt Tension Control Bolt
-
M27 Forging Bolt Tension Control Bolt /TC Bolt /Twist-off-type Tension Control Bolt
-
A-325 TEN. CON. C/TCA 2H Y F-436 ASTM F1852 TYPE 1 ROUND HEAD TC BOLT NUT WASHER
-
3/4 X 1 3/4 " A-325 TEN. CON. C/TCA 2H Y F-436 ASTM F1852 TYPE 1 ROUND HEAD TC BOLT NUT WASHER
-
7/8 " ROUND HEAD TC BOLT NUT WASHER
-
S10t tc Bolt
Product Details
| Place of Origin | Zhejiang, China | Brand Name | papaya | |
| Standard | ANSI |
Product Description
Specifications
Tension Control Bolt1.Hot foring,
2.Size: M16~M100
3.Finish:plain, black ,zinc plated, hot dip galva
Use the top grade raw material,Through ultrasonic flaw detection,chemical composition analysis,
standard requiremnt
Management Standard:
• ISO9001:2001 • ISO/TS16949
ASTM F1852 technical specification
ASTM F1852 tornional shear bolt/nut/gasket matching form | |||
| bolt | nut | gasket |
type/standard | ASTM F 1852 | ASTM A563 | ASTM F436 |
performance level | A325 | ASTM A194 Grade 2 | 38-45HRC |
surface treatment | Parkerizing | Parkerizing | Parkerizing |
connection fittings’ fasten axial force | ||||||
spec | 1/2”-13UNC | 5/8”-11UNC | 3/4”-10UNC | 7/8”-9UNC | 1”-8UNC | 1-1/8”-7UNC |
Fasten axial force lbs/KN | 13000/57.85 | 20000/89.00 | 29000/129.05 | 41000/182.45 | 54000/240.30 | 59000/262.55 |
ASTM F1852-05 |
Bolt mechanical behavior | |||||
Behavior grade | Bolt spec | Tensile strength Ksi/Mpa | Assure loading Ksi/Mpa | Yield strength Ksi/Mpa | Rockwell hardness HRC |
A 325 | 1/2”~1” | 120/827 | 85/586 | 92/634 | 25~34 |
1-1/8 | 105/724 | 74/510 | 81/558 | 19~30 | |
Nut mechanical behavior |
| gasket mechanical behavior | |||
Behavior grade | Assure loading Ksi/Mpa | hardness | Behavior grade | hardness | |
A 194 2H | 175/1207 | 24HRC~38HRC | F 436 | 38~45HRC | |
