Home > Products > Bolt ,Nut,Washer,Stud > china wholesale best price High Tensile wheel hub bolt 10.9 Grade 40Cr s10t torshear type high strength bolt

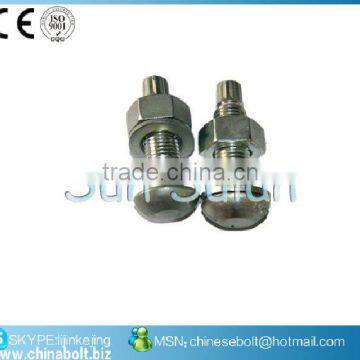

china wholesale best price High Tensile wheel hub bolt 10.9 Grade 40Cr s10t torshear type high strength bolt
- 60000 Piece / Pieces per Month
- SHANGHAI OR NINGBING PORT
- T/T L/C D/P D/A
You May Like
-
high strength torsional shear bolt(TC bolts)
-
TC BOLT(HIGH TENSION BOLT/ TORQUE CONTROL BOLT/ CONSTRACTION BOLT )
-
SWC Flexible Shaft / Universal shafts / Cardan Shaft
-
SWC,SWP Universal Coupling / Industrial Cardan Shaft
-
flexible drive shaft
-
drive shaft /cardan shaft /pto shaft /universal joint /U-Joints
Product Details
| Place of Origin | Zhejiang, China | Brand Name | papaya | |
| Standard | ANSI |
Product Description
Specifications
s10t tc bolt1.Hot foring,
2.Size: M16~M100
3.Finish:plain, black ,zinc plated, hot dip galva
Use the top grade raw material,Through ultrasonic flaw detection,chemical composition analysis,
standard requiremnt
Management Standard:
• ISO9001:2001 • ISO/TS16949
ASTM F1852 technical specification
connection fittings’ fasten axial force | ||||||
spec | 1/2”-13UNC | 5/8”-11UNC | 3/4”-10UNC | 7/8”-9UNC | 1”-8UNC | 1-1/8”-7UNC |
Fasten axial force lbs/KN | 13000/57.85 | 20000/89.00 | 29000/129.05 | 41000/182.45 | 54000/240.30 | 59000/262.55 |
|
Bolt mechanical behavior | |||||
Behavior grade | Bolt spec | Tensile strength Ksi/Mpa | Assure loading Ksi/Mpa | Yield strength Ksi/Mpa | Rockwell hardness HRC |
A 325 | 1/2”~1” | 120/827 | 85/586 | 92/634 | 25~34 |
1-1/8 | 105/724 | 74/510 | 81/558 | 19~30 | |
Nut mechanical behavior |
| gasket mechanical behavior | |||
Behavior grade | Assure loading Ksi/Mpa | hardness | Behavior grade | hardness | |
A 194 2H | 175/1207 | 24HRC~38HRC | F 436 | 38~45HRC | |
