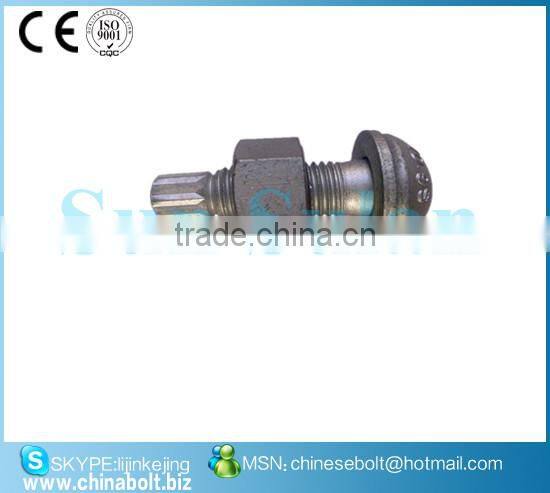

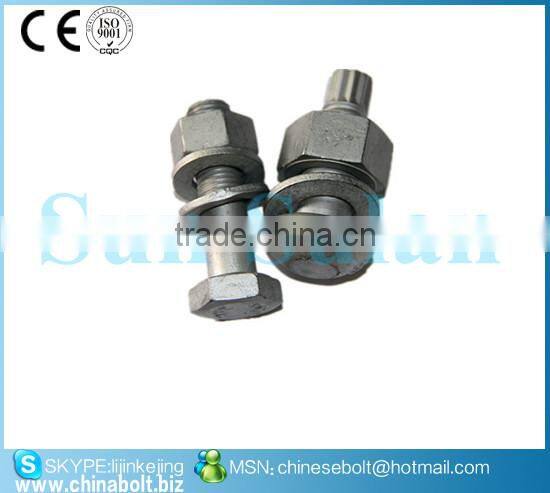

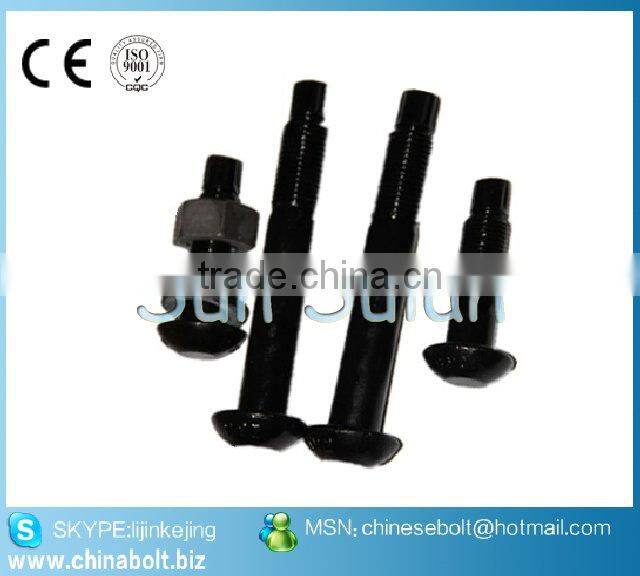

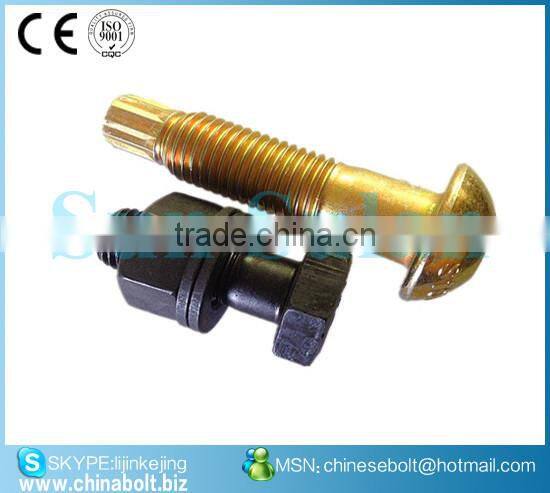

JSS S10T Structural Bolt Set
US$ 1 - 1.1
/ Ton
1 Ton(Min. Order)
- SHANGHAI OR NINGBING PORT
- T/T L/C D/P D/A
You May Like
-
China Wholesale Best Price High Tensile Wheel Hub Bolt 10.9 Grade 40Cr S10t Torshear Type High Strength Bolt
-
High Strength Torsional Shear Bolt(TC Bolts)
-
TC BOLT(HIGH TENSION BOLT/ TORQUE CONTROL BOLT/ CONSTRACTION BOLT )
-
SWC Flexible Shaft / Universal Shafts / Cardan Shaft
-
SWC,SWP Universal Coupling / Industrial Cardan Shaft
-
Flexible Drive Shaft
Product Details
| Place of Origin | Zhejiang, China | Brand Name | papaya | |
| Standard | ANSI |
Product Description
Specifications

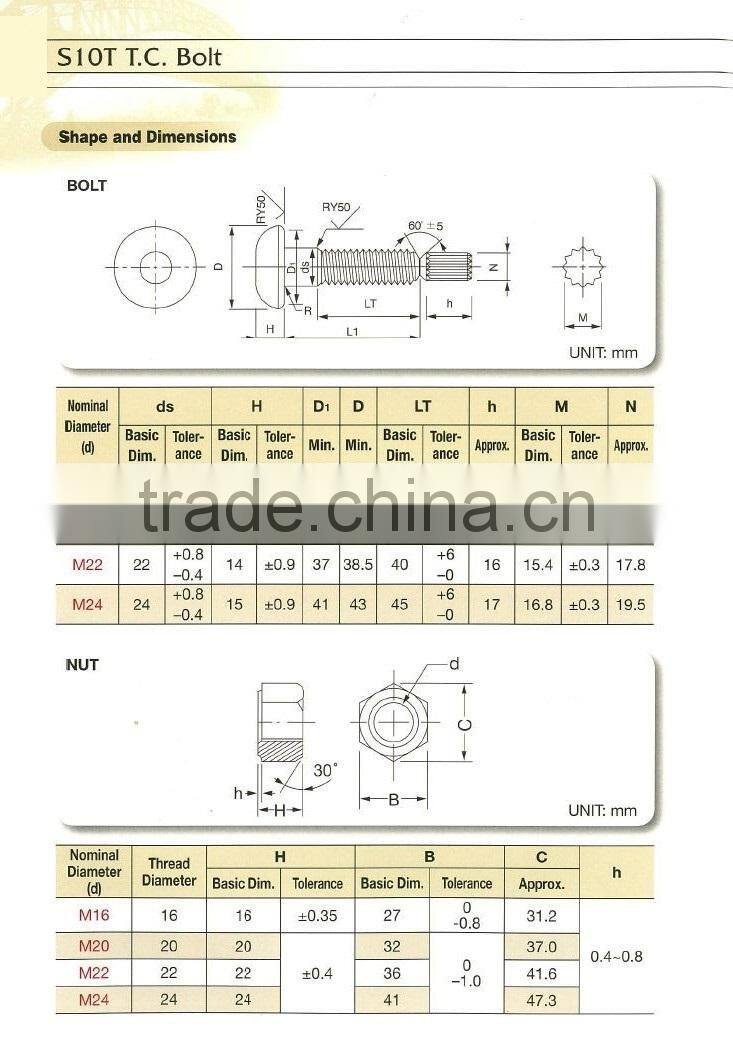

s10t tc bolt1.Hot foring,
2.Size: M16~M100
3.Finish:plain, black ,zinc plated, hot dip galva

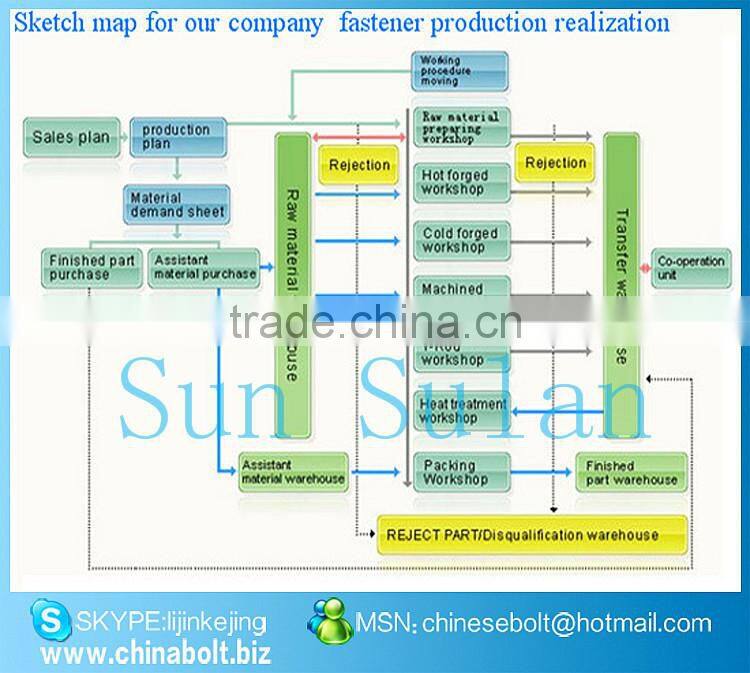

Use the top grade raw material,Through ultrasonic flaw detection,chemical composition analysis,
spectroscopic analysis,mechanical property test and spark discrimination detecting,
completely rejects any mixed raw material,and keep the material selection complying to
standard requiremnt
standard requiremnt
Management Standard:
• ISO9001:2001 • ISO/TS16949
ASTM F1852 technical specification
connection fittings’ fasten axial force | ||||||
spec | 1/2”-13UNC | 5/8”-11UNC | 3/4”-10UNC | 7/8”-9UNC | 1”-8UNC | 1-1/8”-7UNC |
Fasten axial force lbs/KN | 13000/57.85 | 20000/89.00 | 29000/129.05 | 41000/182.45 | 54000/240.30 | 59000/262.55 |
|

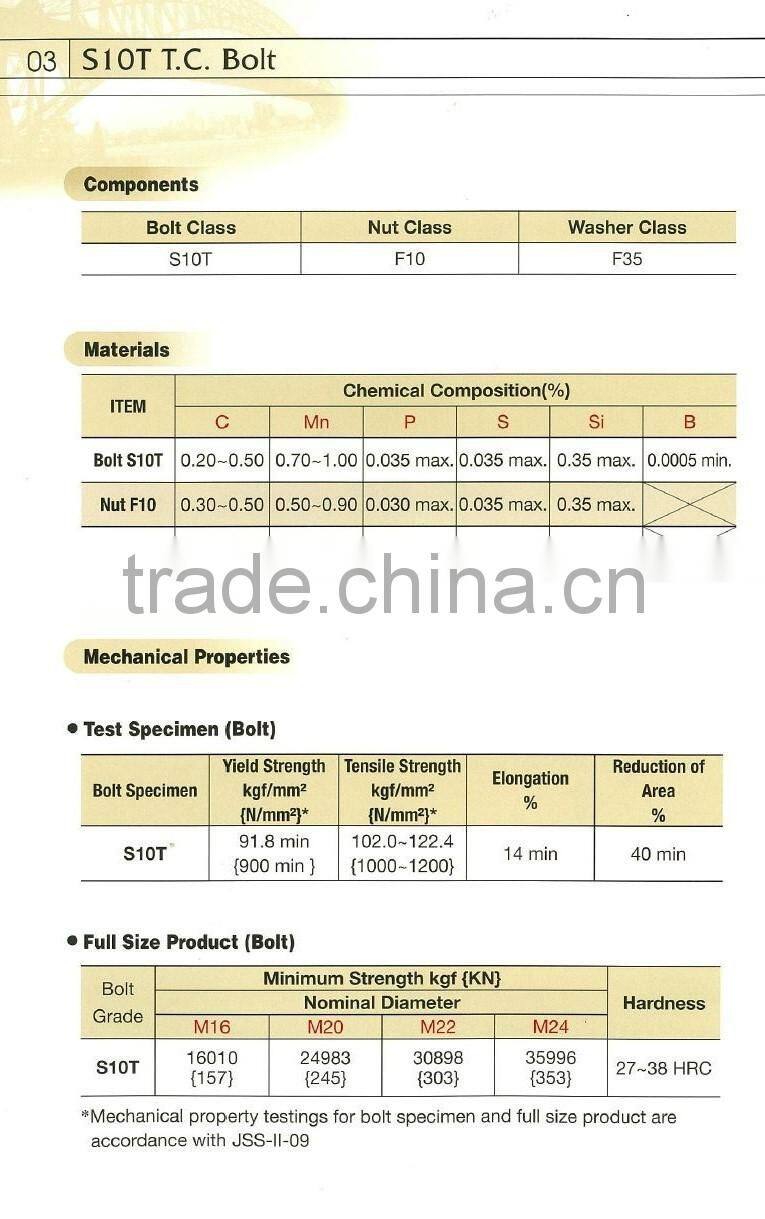

Bolt mechanical behavior | |||||
Behavior grade | Bolt spec | Tensile strength Ksi/Mpa | Assure loading Ksi/Mpa | Yield strength Ksi/Mpa | Rockwell hardness HRC |
A 325 | 1/2”~1” | 120/827 | 85/586 | 92/634 | 25~34 |
1-1/8 | 105/724 | 74/510 | 81/558 | 19~30 | |

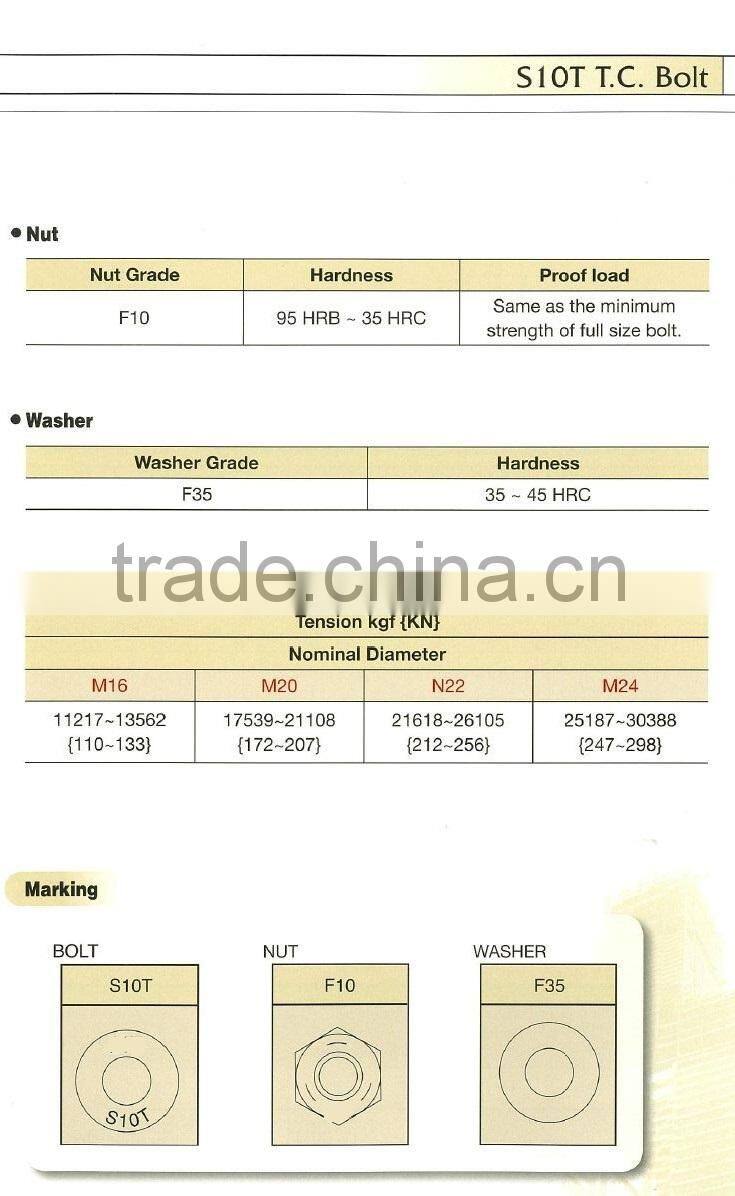

Nut mechanical behavior |
| gasket mechanical behavior | |||
Behavior grade | Assure loading Ksi/Mpa | hardness | Behavior grade | hardness | |
A 194 2H | 175/1207 | 24HRC~38HRC | F 436 | 38~45HRC | |
