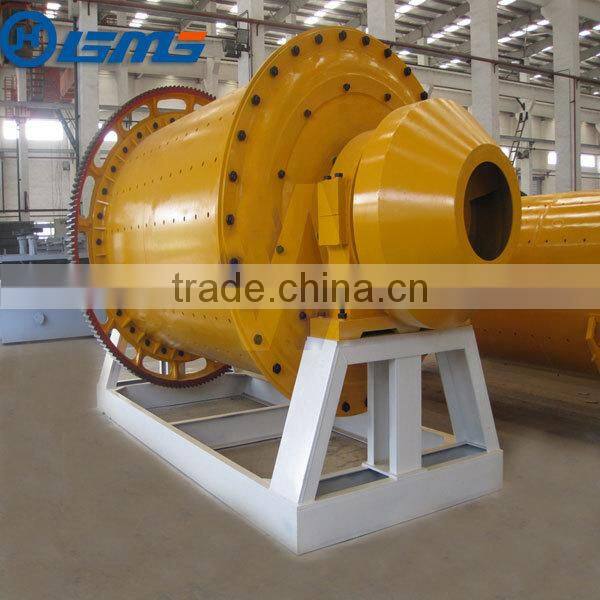

Energy Saving Ball Mill for Grinding Iron Ore, Gold Ore
- 20 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Production Capacity | according to different ball mill | |
| Place of Origin | Henan, China | Brand Name | GMG ball mill | |
| Model Number | ball grinding mill | Voltage | 380v | |
| Power(W) | according to different ball mill | Dimension(L*W*H) | according to different ball mill | |
| Weight | according to different ball mill | Certification | CE ISO9001:2000 | |
| Warranty | Main body wholelife | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Ball Mill for Grinding Iron Ore1.High grinding efficiency
2.large production capacity
3. energy saving
4.easy maintaintence
Specifications
Ball Mill for Grinding Iron Ore
1.high efficency,energy saving
2.durable structure
3.large grinding rate
4.Strict quality control system
Energy Saving Ball Mill for Grinding Iron Ore, Gold Ore
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine . So as a mine machinery ball grinding mill, it is widedly used to grinding gold ore, iron ore or limestone etc, so it also is a ball mill for iron ore, gole ore.
Ball mill is widely used for the cement, the licate produce, new type building material, chemical fertilizer, blak and non-ferrous metal glass, ceramic and etc.
Ball mill is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.
There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

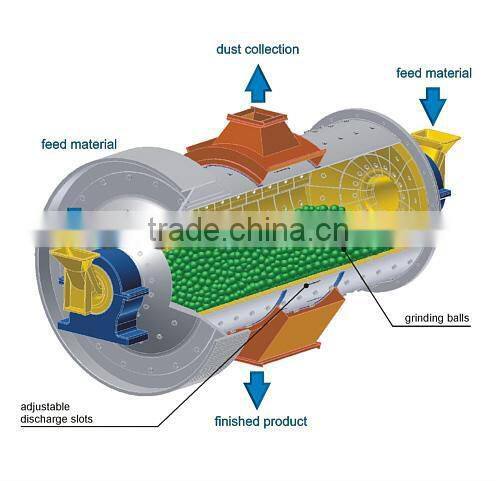

Working principle of Energy Saving Ball Mill for Grinding Iron Ore, Gold Ore:
Features of Ball Mill for Grinding Iron Ore:
Related: dry grid ball mill wet ball mill .Our engineers will suggest the most suitable one for you according to your information.
Structure of Ball Mill for Grinding Iron Ore:
This Ball Grinding Mill is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, Lubrication and cooling device electric motor and electric control.
Technical Parameter of Ball Mill for Grinding Iron Ore:
Specifications (m) | Capacity (t/h) Close Circuit / Open Circuit | Effective Volume (m3) | Feeding Size (mm) | Rotating Speed (r/min) | Load of Grinding Media (t) | Driving mode | Main Motor | Main Reducer | Weight (t) | ||
Type | Power | Type | Speed Ratio | ||||||||
ø1.83 x7.5 | 9.5-10.0 | 17.68 | ≤25 | 23.9 | 22.5 | Edge | JR138-8 | 245 | ZD60-8 | 4.5 | 40 |
Ø2.2X (6.5+1) (Dry) | 21-25 | 21.3 | ≤25 | 21.4 | 31 | Edge | JR15-88 | 380 | ZD70-9 | 5 | 50 |
Ø2.2 X13 | 34-38 | 42.4 | ≤25 | 21.4 | 58 | Edge | YR630-8 | 630 | ZD80 | 5 | 95 |
Ø2.4 X7 | 26-28 | 28.17 | ≤25 | 20.4 | 39 | Edge | JR1512-8 | 570 | ZD80 | 5 | 72 |
Ø2.4 X8 | 28-30 | 32.2 | ≤20 | 20.4 | 42 | Edge | JR1512-8 | 570 | ZD80 | 5 | 77 |
Ø2.4 X9 | 36-38 | 36.2 | ≤20 | 20.4 | 45 | Edge | JR1512-8 | 570 | ZD80 | 5 | 81 |
Ø2.4 X10 | (open)34-38 (close)40-44 | 40.3 | ≤20 | 20.91 | 50 | Edge | YR630-8 | 630 | MBY630 | 5 | 111 |
Ø2.4 X11 | (open)34-38 (close)44-47 | 43.4 | ≤20 | 20.91 | 58 | Edge | JR1512-8 | 630 | MBY630 | 5 | 125 |
Ø2.4 X12 | (open)40-42 (close)45-48 | 46.5 | ≤25 | 21.5 | 64 | Edge | YR800-8 | 800 | MBY710 | 6.3 | 126 |
Ø2.4 X13 | (open)42-44 (close)48-51 | 49.6 | ≤25 | 21.5 | 70 | Edge | YR800-8 | 800 | MBY710 | 6.3 | 130.6 |
Ø2.6X8.5 | 50-55 | 38.6 | ≤20 | 19.6 | 56 | Edge | YR630-8 | 630 | MBY630 | 5.6 | 110 |
Ø2.6X10 | 52-55 | 45.47 | ≤20 | 19.6 | 72 | Edge | YR1000-8 | 1000 | MBY710 | 5.6 | 140 |
Ø2.6X13 (Wet) | 50-55 | 60.5 | ≤25 | 19.11 | 80 | Edge | YR1000-8 | 1000 | MBY710 | 4.5 | 158 |
Ø3x9 | 55-60 | 58.5 | ≤25 | 18.98 | 85 | Edge | YR1000-8 | 1000 | MBY710 | 5.6 | 147 |
Ø3x (8.5+5) (Dry) | 58-62 | 61.5 | ≤25 | 18.98 | 82 | Edge | YR1000-8 | 1000 | MBY710 | 5.6 | 160 |
Ø3.2x9 | 70-75 | 62 | ≤25 | 18.3 | 90 | Edge | YR1250-8 | 1250 | MBY900 | 6.3 | 175 |
Ø3.5X8 | 75-80 | 68 | ≤25 | 17.1 | 91 | Edge | YR1250-8 | 1250 | MBY900 | 5.6 | 182 |
Ø3.5X10 (Dry) | 80-85 | 85 | ≤25 | 17.1 | 80 | Center | YR1400-8 | 1400 | MBYX 900 | 6.3 | 194 |
Ø3.6x (7.5+1.5) (Dry) | 95-100 | 83.7 | ≤25 | 17.05 | 85 | Edge | YR1400-8 | 1400 | MBY900 | 6.3 | 220 |
Ø3.8X7.5 (Air-swept) | 85-90 | 82 | ≤20 | 16.7 | 95 | Edge | YR1400-8 | 1400 | MBY800 | 5.6 | 182 |
Ø3.8X7.5 (Dry) | 85-90 | 82 | ≤20 | 16.7 | 103 | Edge | YR1400-8 | 1400 | MBY800 | 5.6 | 182 |
Ø3.8X12 (Dry) | 135-138 | 108.5 | ≤25 | 16.6 | 112 | Center | YR800-8 | 2000 | MFY 200A JS130-A |
| 295 |
Ø4.2x (8.5+2.5) (Dry) | 130-140 | 116 | ≤25 | 15.6 | 130 | Center double slide shoe | YRKK 900-8 | 2500 | MFY 250A JS130- C2 |
| 355 |
Ø4.2x (10+3.5) (Dry) | 150-160 | 130 | ≤25 | 15.1 | 160 | Center double slide shoe | YRKK 900-8 | 3150 | MFY 320A JS140-C |
| 400 |
Ø4.6x (9.5+3.5) (Dry) | 185-190 | 145 | ≤25 | 15.1 | 180 max | Center double slide shoe | YRKK 1000-8 | 3550 | MFY 355A JS150-B |
| 415 |
Ø4.6x (10+3.5) (Dry) | 190-200 | 160 | ≤25 | 15.1 | 190 max | Center double slide shoe | YRKK 1000-8 | 3550 | MFY 355A JS150-B |
| 423 |
Ø4.6x (11+3.5) (Dry) | 220-240 | 191 | ≤25 | 15.2 | 258 max | Center double slide shoe | YRKK 1000-8 | 4000 | MFY 400A JS160-B |
| 480 |
Spare parts of Ball Mill for Grinding Iron Ore:

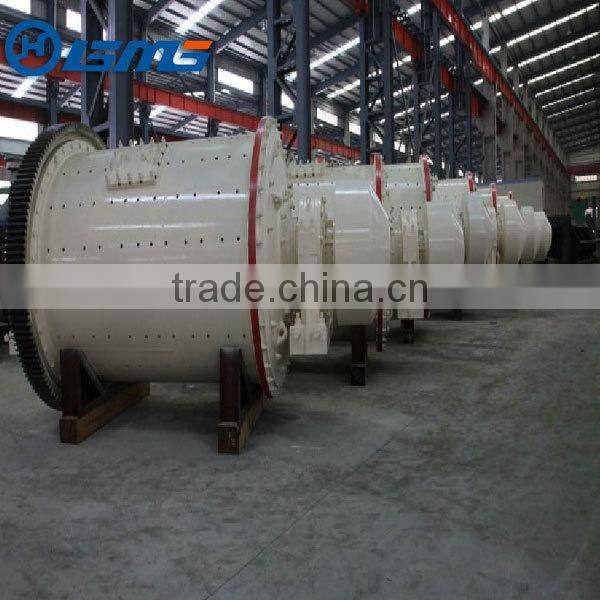

Factory workshop of Ball Mill for Grinding Iron Ore:

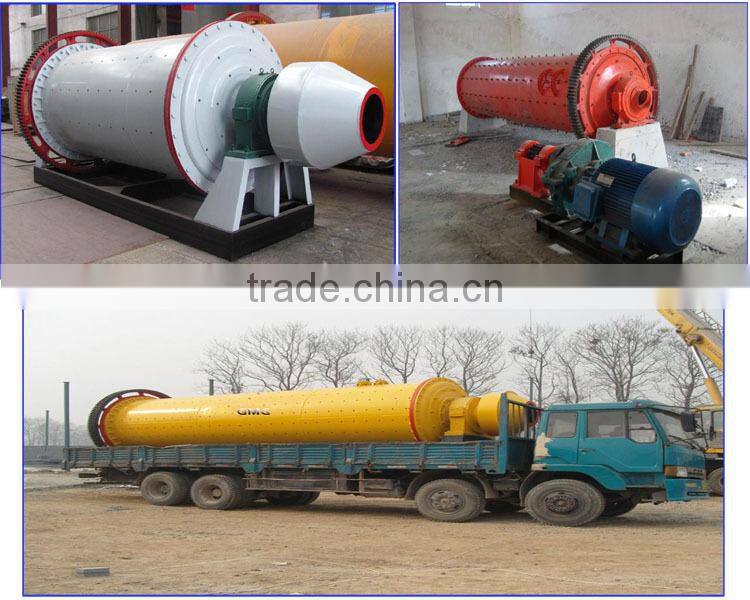

Transportaion of Ball Mill for Grinding Iron Ore:
Certification of Ball Grinding Mill:
