Whole Cement Plant Clinker and Raw Material Ball Grinding Mill

Specifications

Compete Cement Grinding Machine

Brief introduction of Cement Clinker Grinding Plant Process:

A. Raw Materials of Cement Clinker Grinding Plant or Cement Grinding Plant:

Clinker, Gypsum and Other Additives.

B.Cement Clinker Grinding Plant Process Includes:

a. Gypsum and Blending Materials Crushing System

b . Cement Proportioning and Grinding System

c. Cement Storage and Bulk Loading

d. Cement Packing and the finished-product Storage

  <img src="/kf/HTB1Twj6FVXXXXXTXVXXq6xXFXXXe/201247726/HTB1Twj6FVXXXXXTXVXXq6xXFXXXe.jpg" width="669" height="378" style="margin: 0px; padding: 0px; font-size: 0px; font-style: inherit; line-height: 15px; vertical-align: middle; color: transparent; width: 669px; display: inline; height: 378px;" ori-width="673" ori-height="380">

1.Clinker storage

 Clinker will be unloaded into the hooper by wheel loader after being stored in the cement factory, then will be fed into the different silo by belt and bucket elevator .

2.cement clinker and mixed materials storage

Gypsum will be unloaded into the hooper after being stored in cement plant, then will  be fed into the different silo by belt and bucket elevator through being crushed by jaw crusher.

3. Raw material blending

Five materials blending bins for clinker,gypsum and volcanic ash, Speed governable belt balances will be used at the bottom of the material blending bins. Raw materials will be blended according to requirements and fed onto the raw mill system by belt conveyor.

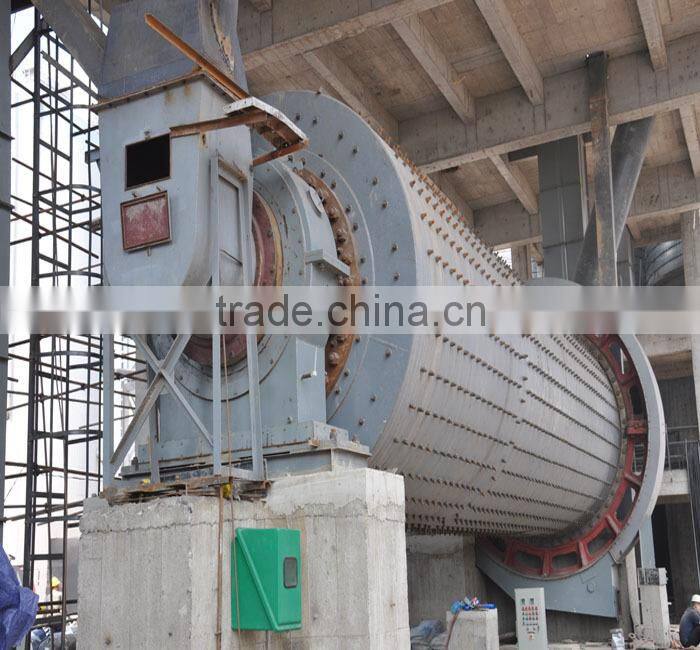

 4.Cement grinding

After material blending at bottom of clinker silo, admixture silo and gypsum silo, material will be fed into the cement mill. Then material will be fed into cement separator by bucket elevator. Finished product will be conveyed into three cement silos via elevator. Coarse powder will return to mill to regrind.

5.Cement storage and Cement packing

Three round silos will be used for cement storage.

Feeding cement from cement silo to packing machine, cement packer will be used for cement packing. Cement will be fed into vibration sieve by elevator, then into cement hooper, and then into cement packer. Bagged cement will be sent into loading machine by belt conveyor.

The weight of each bag will be measured and adjusted by electron balance when packing.

Packing system sets has the complete soot-eliminating devices to ensure the exhaust standard.

C.Main Equipments in Cement Clinker Grinding Plant:

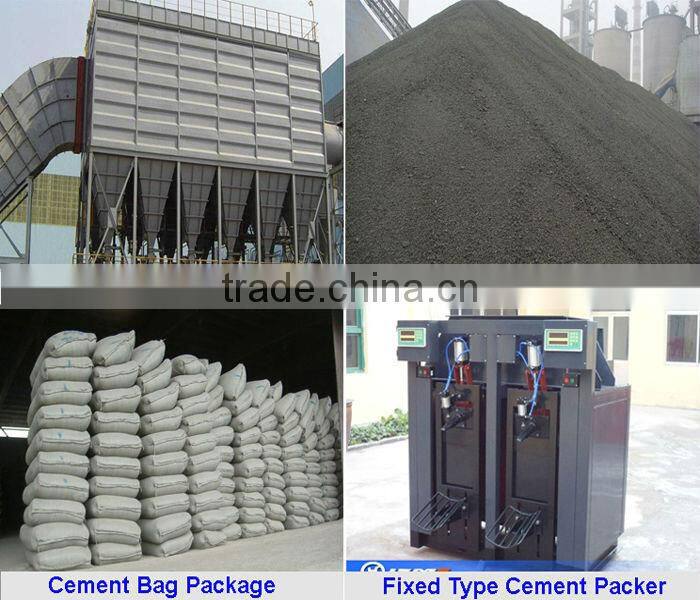

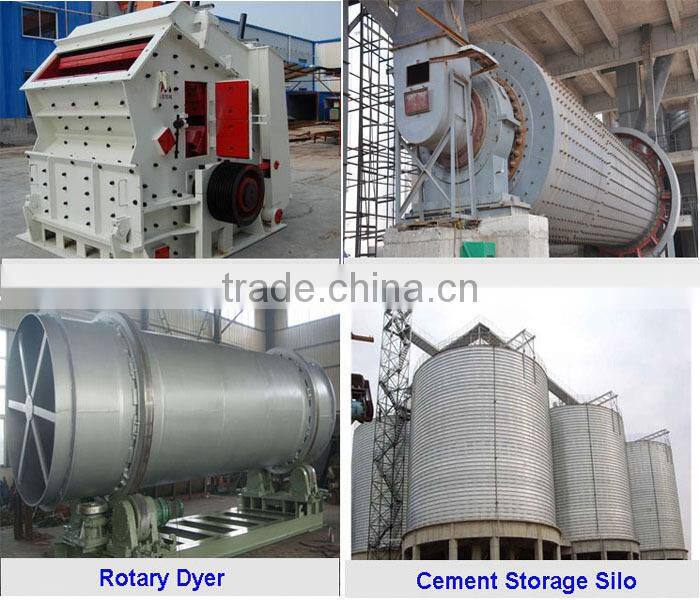

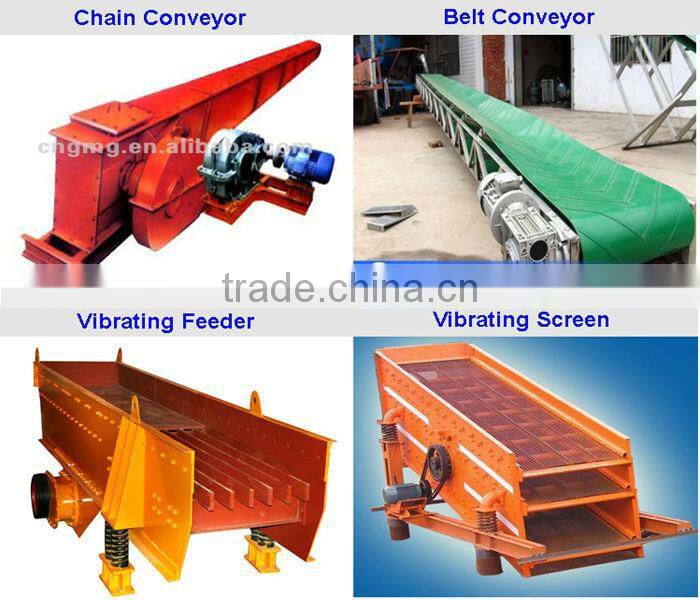

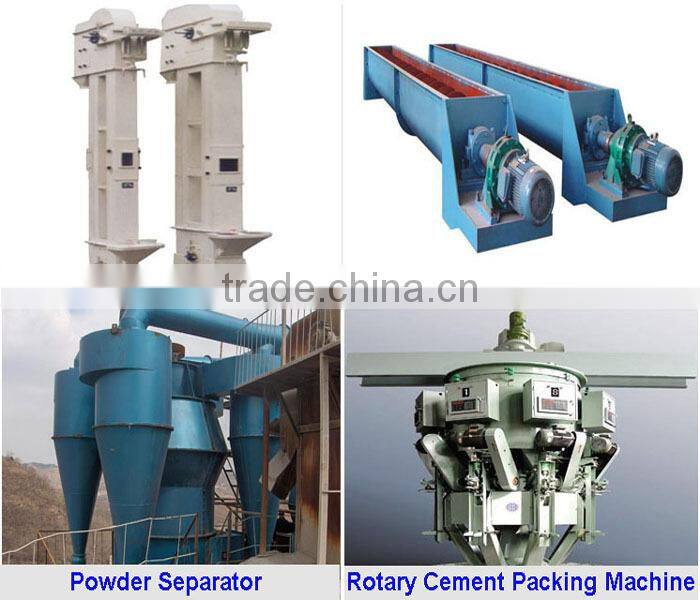

Main equipments used in the cement clinker grinding plant or cement grinding plant includes: crusher, cement clinker grinding ball mill, cement separator, rotary dryer, bag type dust collector

dust collector, cement storage silo,cement packing machine and other conveyor machine.

<img src="/kf/HTB12kMFFVXXXXcVXXXXq6xXFXXXv/201247726/HTB12kMFFVXXXXcVXXXXq6xXFXXXv.jpg" alt="500-3000TPD Clinker Cement Grinding Plant with Compete Cement Grinding Machine" style="margin: 0px; padding: 0px; font-size: 0px; font-style: inherit; line-height: inherit; vertical-align: middle; color: transparent;" ori-width="700" ori-height="600">

<img src="/kf/HTB1u.EsFVXXXXbOXFXXq6xXFXXXW/201247726/HTB1u.EsFVXXXXbOXFXXq6xXFXXXW.jpg" alt="500-3000TPD Clinker Cement Grinding Plant with Compete Cement Grinding Machine" style="margin: 0px; padding: 0px; font-size: 0px; font-style: inherit; line-height: inherit; vertical-align: middle; color: transparent;" ori-width="700" ori-height="600">

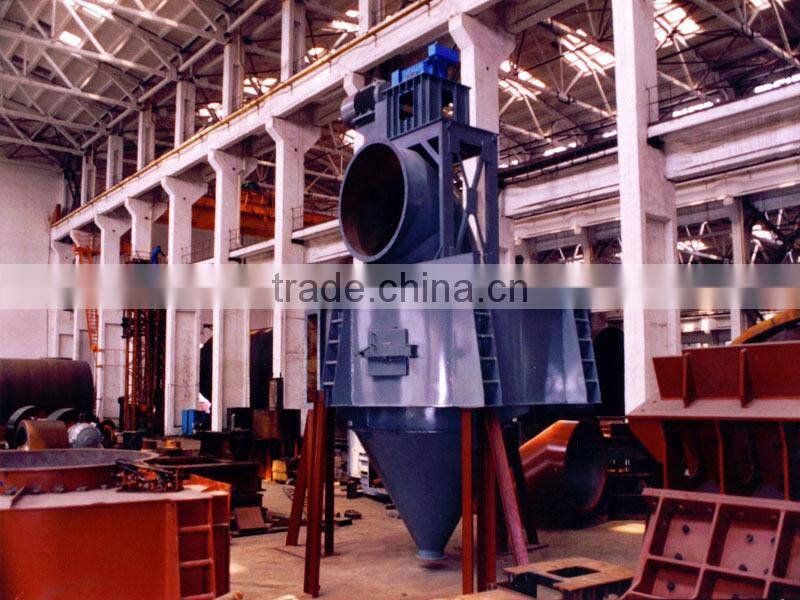

Horizontal Vortex Type Powder Separator for Cement Clinker Grinding Plant:


<img src="/kf/HTB14C5FFVXXXXcdXFXXq6xXFXXX8/201247726/HTB14C5FFVXXXXcdXFXXq6xXFXXX8.jpg" alt="500-3000TPD Clinker Cement Grinding Plant with Compete Cement Grinding Machine" style="margin: 0px; padding: 0px; font-size: 0px; font-style: inherit; line-height: inherit; vertical-align: middle; color: transparent;" ori-width="800" ori-height="600">

ShowCase of Successful Cement Plant Projects Built  in Foreign Countries:

  <img src="/kf/HTB1A1CWFVXXXXaaaXXXq6xXFXXXe/201247726/HTB1A1CWFVXXXXaaaXXXq6xXFXXXe.jpg" alt="500-3000TPD Clinker Cement Grinding Plant with Compete Cement Grinding Machine" style="margin: 0px; padding: 0px; font-size: 0px; font-style: inherit; line-height: 15px; vertical-align: middle; color: transparent;" ori-width="700" ori-height="450">
