High Quality Ball Mill for Grinding Iron Ore With CE Certificate
- Shanghai
- T/T
You May Like
-
Ce Certificate Ball Mill Grinder or Ball Mill Grinding Machine for Sale
-
High Efficiency Gold Mining Ball Mill for Gold Ore Grinding
-
Limestone Ball Mill Grinding Machine For Cement Production Line
-
Advanced Technology China Quartz Sand Grinding Mill
-
High Fineness Silica Sand Grinding Mill In Mine Industry
-
High Grinding Performance Ball Mill Grinder Machine
Product Details
| Condition | New | Production Capacity | according to the specification | |
| Place of Origin | Henan, China | Brand Name | GMG ball mill grinder | |
| Model Number | according to the specification | Voltage | 380v | |
| Power(W) | according to the specification | Dimension(L*W*H) | according to the specification | |
| Weight | according to the specification | Certification | CE ISO9001:2000 | |
| Warranty | Main body wholelife | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Ball Mill for Grinding Iron Ore1.High grinding efficiency
2.large production capacity
3. energy saving
4.easy maintenance
Specifications
ball mill for grinding iron ore
1.high efficency
2.durable structure
3.large grinding rate
4.Strict quality control system
High Quality Ball Mill for Grinding Iron Ore with CE Certificate
Ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.
Related: dry grinding ball mill, wet ball mill .Our engineers will suggest the most suitable one for you according to your information.
Working principle of Ball Mill for Grinding Iron Ore:
Features of Ball Mill for Grinding Iron Ore:

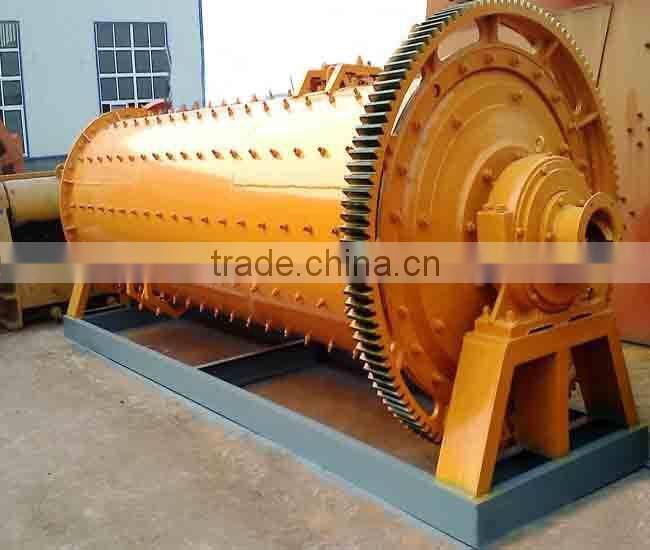

Structure of Ball Mill for Grinding Iron Ore:
This Ball Mill is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, Lubrication and cooling device electric motor and electric control.
Technical Parameter of Ball Mill for Grinding Iron Ore:
Specifications (m) | Capacity (t/h) Close Circuit / Open Circuit | Effective Volume (m3) | Feeding Size (mm) | Rotating Speed (r/min) | Load of Grinding Media (t) | Driving mode | Main Motor | Main Reducer | Weight (t) | ||
Type | Power | Type | Speed Ratio | ||||||||
ø1.83 x7.5 | 9.5-10.0 | 17.68 | ≤25 | 23.9 | 22.5 | Edge | JR138-8 | 245 | ZD60-8 | 4.5 | 40 |
Ø2.2X (6.5+1) (Dry) | 21-25 | 21.3 | ≤25 | 21.4 | 31 | Edge | JR15-88 | 380 | ZD70-9 | 5 | 50 |
Ø2.2 X13 | 34-38 | 42.4 | ≤25 | 21.4 | 58 | Edge | YR630-8 | 630 | ZD80 | 5 | 95 |
Ø2.4 X7 | 26-28 | 28.17 | ≤25 | 20.4 | 39 | Edge | JR1512-8 | 570 | ZD80 | 5 | 72 |
Ø2.4 X8 | 28-30 | 32.2 | ≤20 | 20.4 | 42 | Edge | JR1512-8 | 570 | ZD80 | 5 | 77 |
Ø2.4 X9 | 36-38 | 36.2 | ≤20 | 20.4 | 45 | Edge | JR1512-8 | 570 | ZD80 | 5 | 81 |
Ø2.4 X10 | (open)34-38 (close)40-44 | 40.3 | ≤20 | 20.91 | 50 | Edge | YR630-8 | 630 | MBY630 | 5 | 111 |
Ø2.4 X11 | (open)34-38 (close)44-47 | 43.4 | ≤20 | 20.91 | 58 | Edge | JR1512-8 | 630 | MBY630 | 5 | 125 |
Ø2.4 X12 | (open)40-42 (close)45-48 | 46.5 | ≤25 | 21.5 | 64 | Edge | YR800-8 | 800 | MBY710 | 6.3 | 126 |
Ø2.4 X13 | (open)42-44 (close)48-51 | 49.6 | ≤25 | 21.5 | 70 | Edge | YR800-8 | 800 | MBY710 | 6.3 | 130.6 |
Ø2.6X8.5 | 50-55 | 38.6 | ≤20 | 19.6 | 56 | Edge | YR630-8 | 630 | MBY630 | 5.6 | 110 |
Ø2.6X10 | 52-55 | 45.47 | ≤20 | 19.6 | 72 | Edge | YR1000-8 | 1000 | MBY710 | 5.6 | 140 |
Ø2.6X13 (Wet) | 50-55 | 60.5 | ≤25 | 19.11 | 80 | Edge | YR1000-8 | 1000 | MBY710 | 4.5 | 158 |
Ø3x9 | 55-60 | 58.5 | ≤25 | 18.98 | 85 | Edge | YR1000-8 | 1000 | MBY710 | 5.6 | 147 |
Ø3x (8.5+5) (Dry) | 58-62 | 61.5 | ≤25 | 18.98 | 82 | Edge | YR1000-8 | 1000 | MBY710 | 5.6 | 160 |
Ø3.2x9 | 70-75 | 62 | ≤25 | 18.3 | 90 | Edge | YR1250-8 | 1250 | MBY900 | 6.3 | 175 |
Ø3.5X8 | 75-80 | 68 | ≤25 | 17.1 | 91 | Edge | YR1250-8 | 1250 | MBY900 | 5.6 | 182 |
Ø3.5X10 (Dry) | 80-85 | 85 | ≤25 | 17.1 | 80 | Center | YR1400-8 | 1400 | MBYX 900 | 6.3 | 194 |
Ø3.6x (7.5+1.5) (Dry) | 95-100 | 83.7 | ≤25 | 17.05 | 85 | Edge | YR1400-8 | 1400 | MBY900 | 6.3 | 220 |
Ø3.8X7.5 (Air-swept) | 85-90 | 82 | ≤20 | 16.7 | 95 | Edge | YR1400-8 | 1400 | MBY800 | 5.6 | 182 |
Ø3.8X7.5 (Dry) | 85-90 | 82 | ≤20 | 16.7 | 103 | Edge | YR1400-8 | 1400 | MBY800 | 5.6 | 182 |
Ø3.8X12 (Dry) | 135-138 | 108.5 | ≤25 | 16.6 | 112 | Center | YR800-8 | 2000 | MFY 200A JS130-A |
| 295 |
Ø4.2x (8.5+2.5) (Dry) | 130-140 | 116 | ≤25 | 15.6 | 130 | Center double slide shoe | YRKK 900-8 | 2500 | MFY 250A JS130- C2 |
| 355 |
Ø4.2x (10+3.5) (Dry) | 150-160 | 130 | ≤25 | 15.1 | 160 | Center double slide shoe | YRKK 900-8 | 3150 | MFY 320A JS140-C |
| 400 |
Ø4.6x (9.5+3.5) (Dry) | 185-190 | 145 | ≤25 | 15.1 | 180 max | Center double slide shoe | YRKK 1000-8 | 3550 | MFY 355A JS150-B |
| 415 |
Ø4.6x (10+3.5) (Dry) | 190-200 | 160 | ≤25 | 15.1 | 190 max | Center double slide shoe | YRKK 1000-8 | 3550 | MFY 355A JS150-B |
| 423 |
Ø4.6x (11+3.5) (Dry) | 220-240 | 191 | ≤25 | 15.2 | 258 max | Center double slide shoe | YRKK 1000-8 | 4000 | MFY 400A JS160-B |
| 480 |

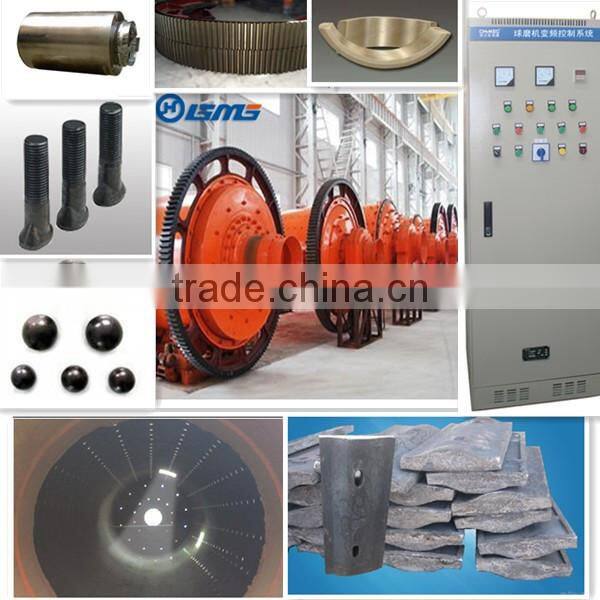

Spare parts of Ball Mill for Grinding Iron Ore:

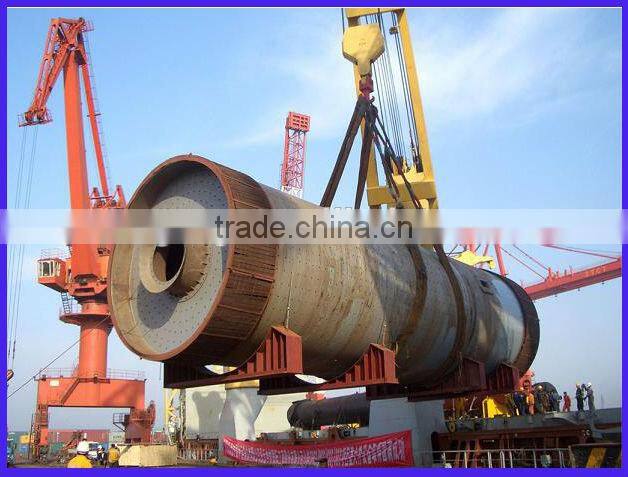

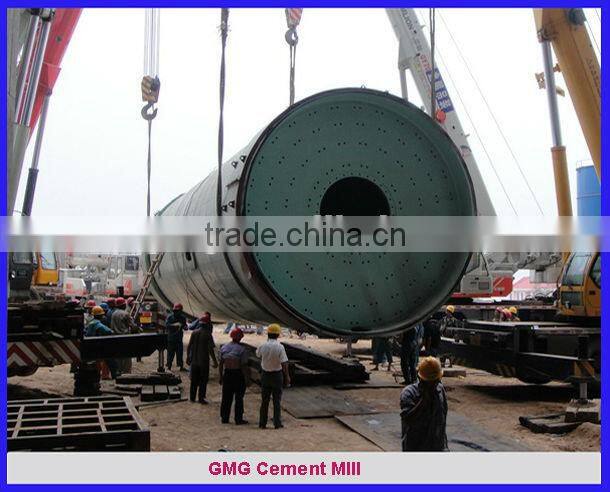

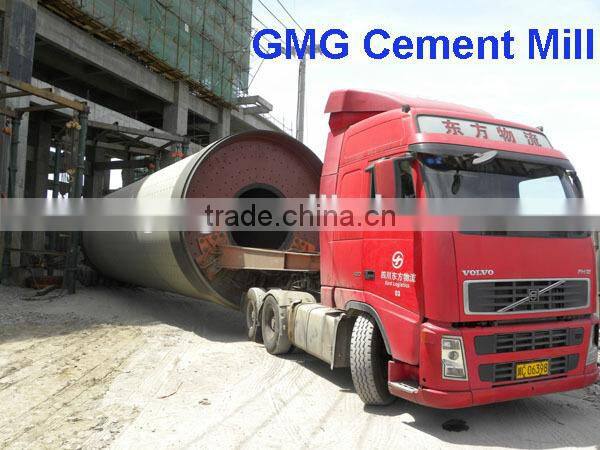

Transportaion and Installtation of Ball Mill for Grinding Iron Ore:

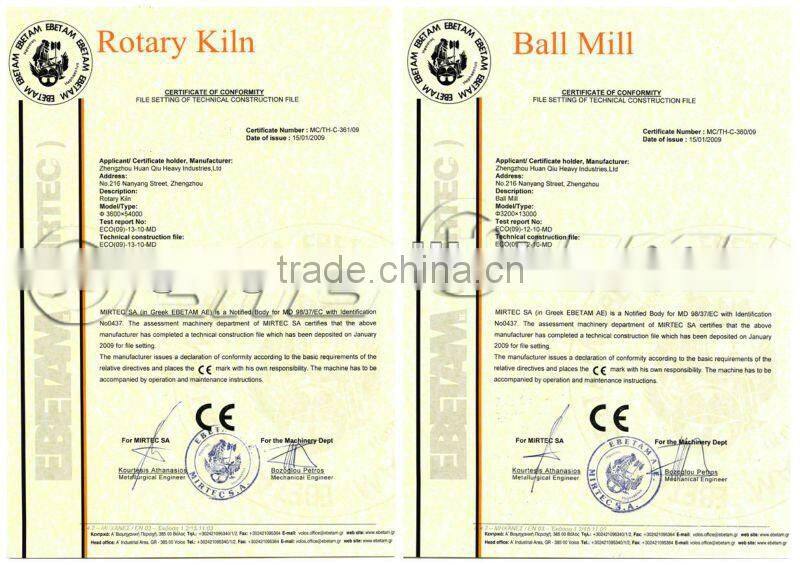

Certification of Ball Mill for Grinding Iron Ore:
