7.5 KW Mixer Projective Plastering Machine for Sale
- SHANGHAI/ NINGBO PORT
- T/T Credit Card
You May Like
-
2000m2 per 7hours Render Plaster Machine for Wall
-
Putzmeister MP22 Plaster Spray Equipment With CE
-
800-1000m2 per 7hrs JP40-L Plastering Machines Used for EPS or 3D Panels
-
1000-1500m2 per 7hrs JP40-L Sprayer Cement Mortar for EPS Panels
-
German Air Compressor and Motor JP70-P Mortar Spray Machine Plaster
-
PZ-5 Gunite Pump Application Dry Concrete/ Fireproofing Material
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Power(W) | 7.5KW | Rendering Thickness | 15 mm | |
| Rendering Height | 40 m | Place of Origin | Zhejiang, China | |
| Brand Name | Wengong | Model Number | JP60D-W | |
| Dimension(L*W*H) | 2600 x 1170 x1100mm | Weight | 580kgs | |
| Certification | CE, ISO9001:2008 | Warranty | 6months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
projective plastering machine>includes mixer and pump
>highly spray mortar for 3D panel
>capacity:3000m2 in 8hours
JP60D-W projective plastering machine
1. JP60D-W is the high efficiency machine introduced German technology.
2. It's applicable to large area plastering for plastering and screeding mortar, fireproofing, thermal insulation mortar, and thick layer of mortar, masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar.
3.With variable speed regulation, can freely choose output, pressure and controlling pressure according to mortar characteristics and use.
4.Sets the pressure protection system, and achieves the remote control.
5.With simple design and high power, it equips with large output conveying pump with steady work. It has combined functions of mixing, pumping, bonding and plastering.
Technical parameters
Model | — | JP60D-W |
Supply power | — | 400V 50Hz |
Motor power | kw | 7.5 |
Maximum grain size | mm | 5 pump type: Putzmeister 2L6 |
Output | l/min | 40 |
Delivery pressure | bar | 30 |
Horizontal delivery distance | m | 60 |
Vertical delivery distance | m | 40 |
Mixer power | kw | 3 |
Mixer volume | L | 250 |
Hopper volume | L | 230 |
Net weight | kg | 580 |
Dimension (L×W×H) | mm | 2600×1170×1100 |

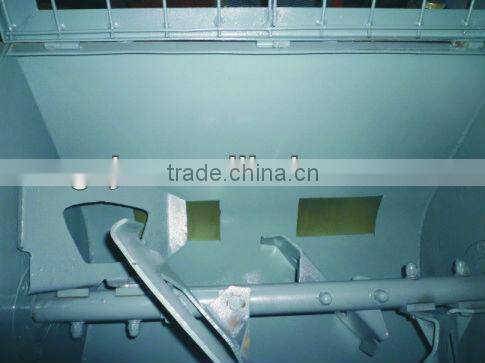

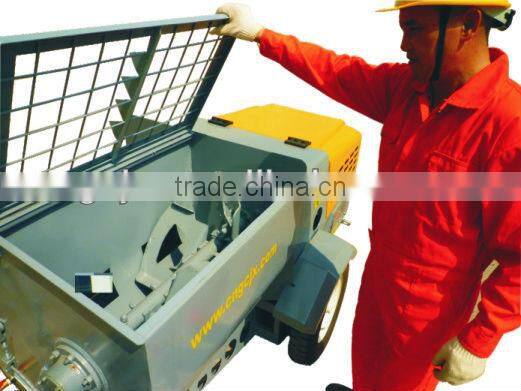

1. JP60D-W mortar spraying machine includes Mortar Mixer and pump:
The wet mixed mortar will be discharged from mixer tank

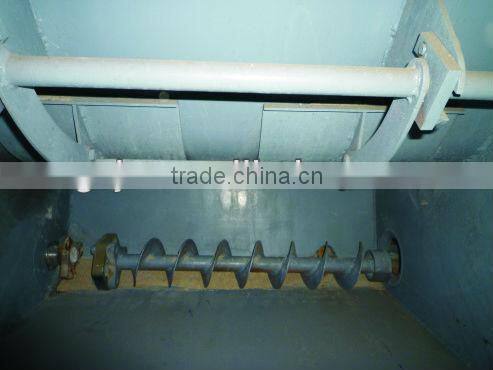

into below Worm pump tank system:

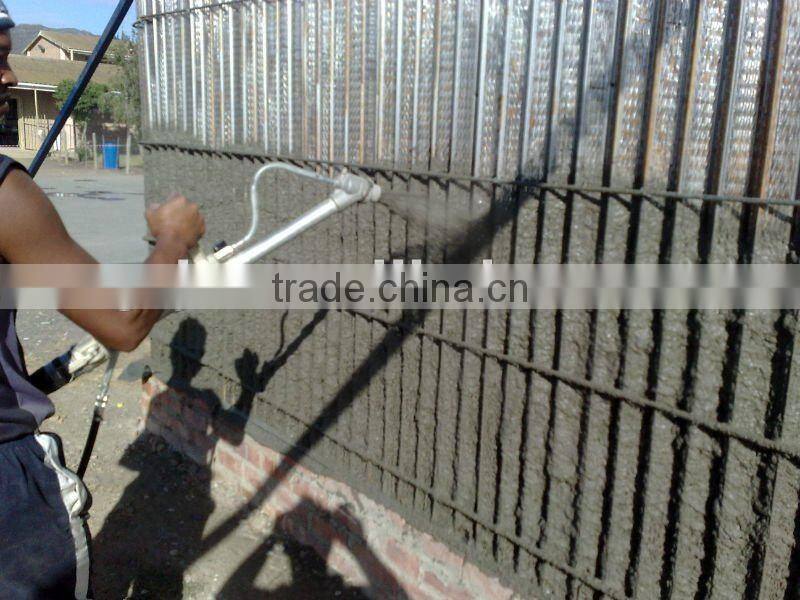

2. Spraying fireproof inslution mortar into 3D panle surface
3. wall screeding plaster machine can screed the mortar to floor
