ISO9001:2008 Aliva 6m3/h Small Gunite Machine
- shanghai/ ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Max. Conveying Distance | 200m | |
| Max Aggregate Size | 20mm | Hose Inner Diameter | 50 mm | |
| Air Consumption | 7-8m3/h | Place of Origin | Zhejiang, China | |
| Brand Name | Wengong | Model Number | PZ-6 | |
| Voltage | 220V/380V,/440V | Power(W) | 5.5KW | |
| Dimension(L*W*H) | 1300x900x1100mm | Weight | 70kgs | |
| Certification | CE, ISO9001:2008 | Warranty | 6months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
small gunite machine1.use all kind of dry gunites works
2.6m3/h, dry concrete
3.stardard part:hose,spraying gun

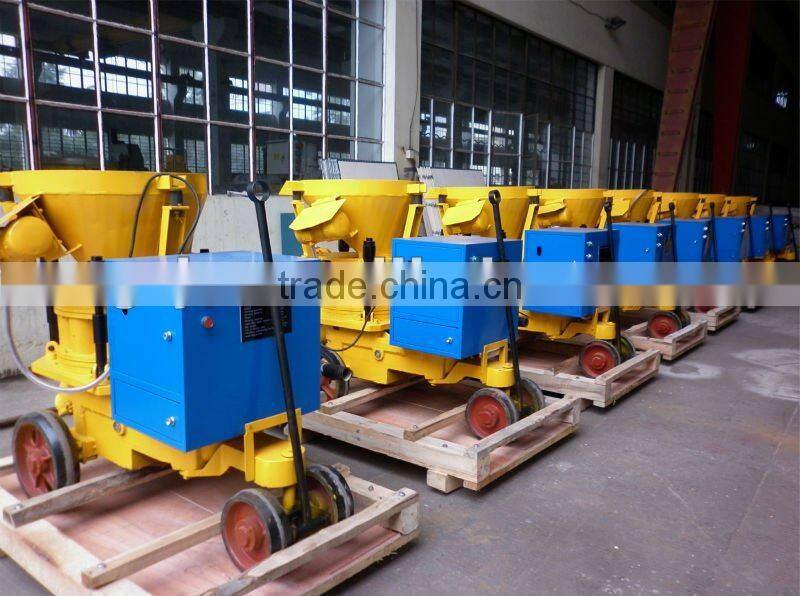

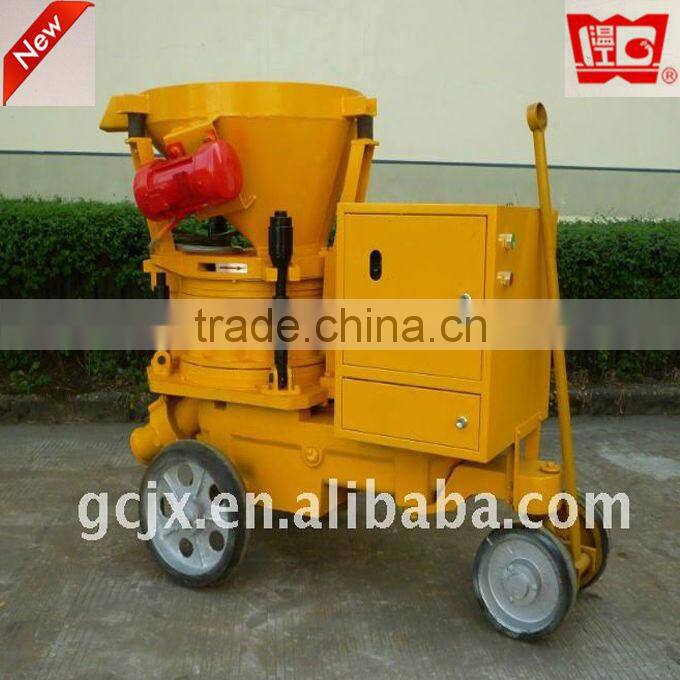

PZ-6 small gunite machine
Model PZ-6 concrete gunite machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. HPS-6 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality.
Technical parameter
Model | PZ-6 | PZ-9 |
Production capacity (m3/h) | 6 | 7-9 |
Max horizontal delivery distance(m) | 200 | 200 |
Max vertical delivery distance(m) | 40 | 40 |
Cement-sand ratio | 1 : 3-5 | 1 : 3-5 |
Water-cement ratio | ≤0.4-0.45 | ≤0.4-0.45 |
Vibration motor power(kw) | 0.25 | 0.25 |
Max aggregate size (mm) | 20 | 20 |
Inner diameter of delivery hose(mm) | 51 | 51 |
Working air pressure (Mpa) | 0.2-0.4 | 0.2-0.4 |
Air consumption(m3/h) | 7-8 | 10-12 |
Motor power(kw) | 5.5 | 7.5 |
Dimensions(mm) | 1300×900×1100 | 1300×800×1300 |
Net Weight(kg) | 700 | 900 |
1. PZ-6 always export lots of overseas conutries including Russia, Mexico, Philippines, Malaysia, Chile etc.
2. PZ-6 can be used for below applications:

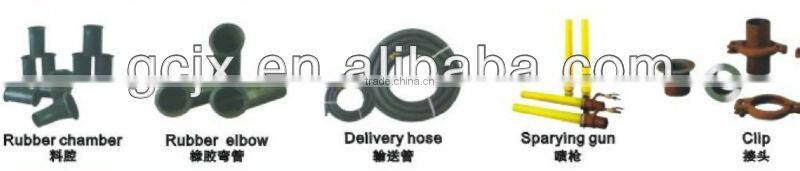

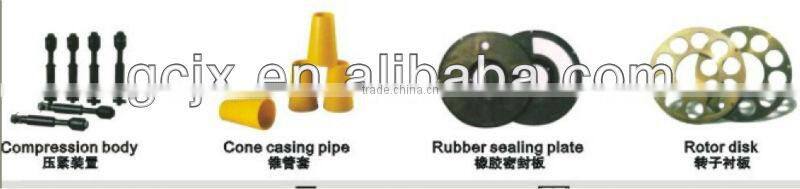

vulnerable parts:
