Putzmeister 2L6 Stator Rotor Design JP60-P Stucco Sprayer
- SHANGHAI/NINGBO
- T/T Credit Card
You May Like
-
Pump Max Height to 50m Diesel Engine Exterior Wall Plaster Machine
-
ISO9001:2008, CE!! S5 Ready Mix Cement Plaster Machine for Building
-
Peristaltic Cement Plaster Sprayer With Air Compressor for 30m Height
-
3m3/h UBJ3 Peristaltic Cement Mortar Injection Pump for Sale
-
Peristaltic Cement Injection Equipment With Air Compressor
-
3m3/h Diesel Engine Cement Grouting Injection Equipment
Product Details
| Condition | New | Application | spray stucco, plaster, fireproofing, EIFS and cementitious coat | |
| Place of Origin | Zhejiang, China | Brand Name | Wengong | |
| Model Number | JP60-P stucco sprayer | Dimension(L*W*H) | 2290X680X660mm | |
| Weight | 275KGS | Certification | CE, ISO9001:2008 | |
| Warranty | 6months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
stucco sprayer>ISO9001:2000;make 6years
>spray stucco,mortar,plaster,fireproof
>capacity:50L/min,2000m2/8hours

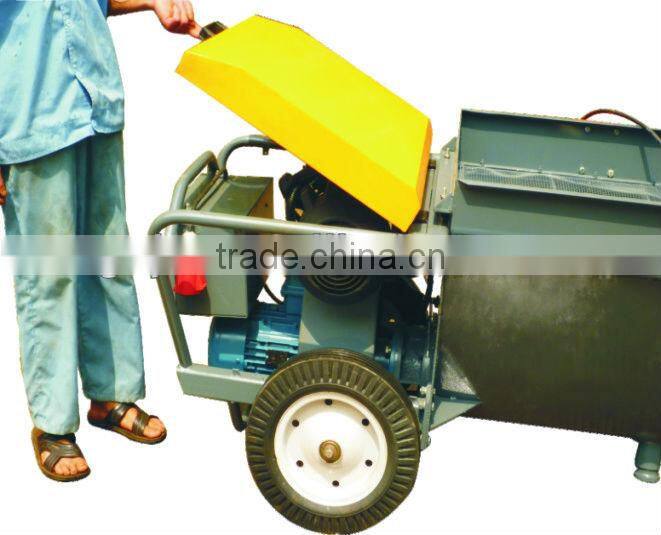

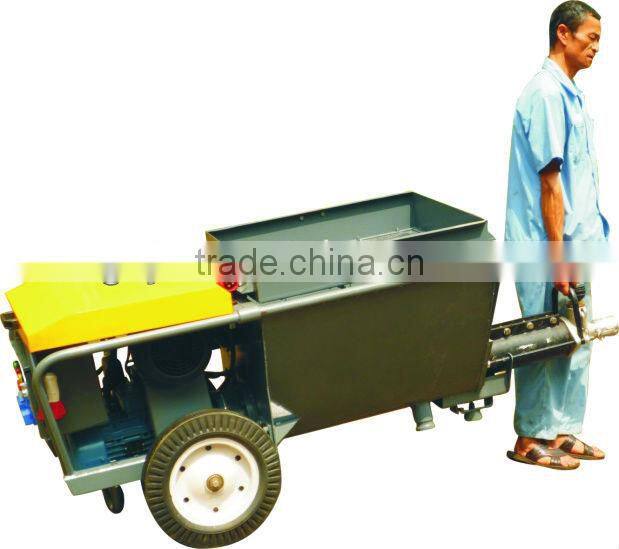

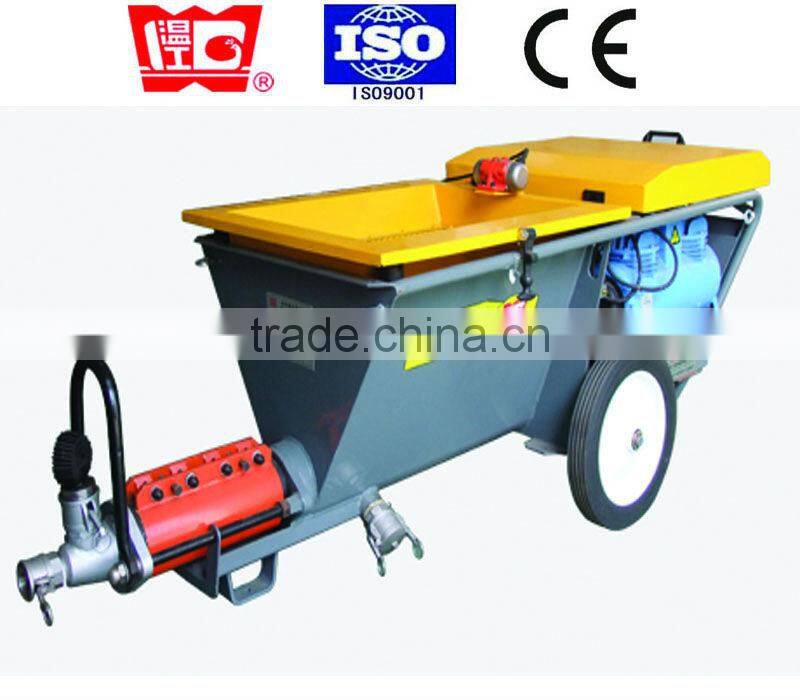

JP60-P Stucco sprayer
1. JP60-P plastering machine is multi-functional large output plastering machine introduced German technology. Adopts 2L6 stator and rotor putzmeister design.
3. With modular structure, it's easy to move, dissemble and operate.
4.With variable speed regulation, JP60-P plastering machine can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.
Technical parameters of JP60-P Mortar plastering machine
Model | — | JP60-P | JP60-S |
Supply power | — | 400V 50Hz | 400V 50Hz |
Motor power | kw | 4.0/5.1 | 4.0/5.1 |
Compressor power | kw | 2 | — |
Maximum grain size | mm | 6 | 6 |
Output | l/min | 40 | 40 |
Delivery pressure | bar | 30 | 30 |
Horizontal delivery distance | m | 60 | 60 |
Vertical delivery distance | m | 40 | 40 |
Hopper volume | L | 100 | 100 |
Net weight | kg | 280 | 210 |
Dimension (L×W×H) | mm | 2290×680×660 | 2290×680×660 |

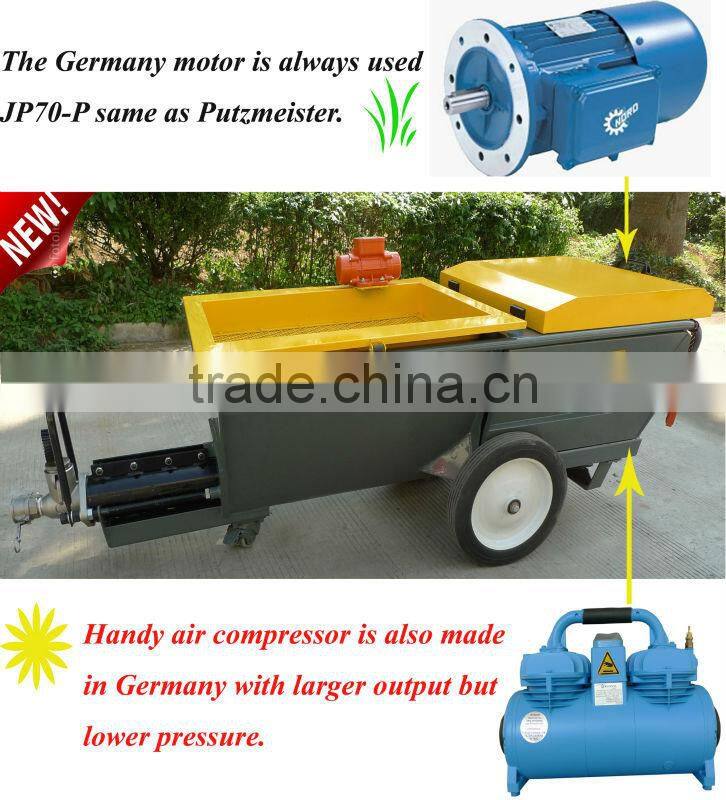

1. JP60-P plastering machine is installed air compressor and motor, the motor is imported from Germany. The quality you can be no worried too much.

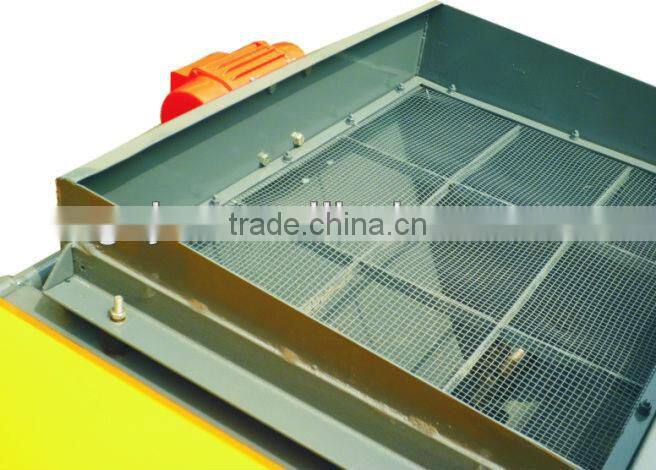

2. The vibrating sieve screen matches vibrating motor and the vibrating sieve is 10x10mm( or 8x8mm) to slecet the bigger size material out to protect stator and rotor of plastering machine.
3. JP60-P is easy to move for plastering work, it's one of ideal plastering machine for pleaster choice!
4. you can see the plastering effect with fast speed about 800-1200m2 per 7hours.
2. Our Bamua fair in Shanghai 2012
