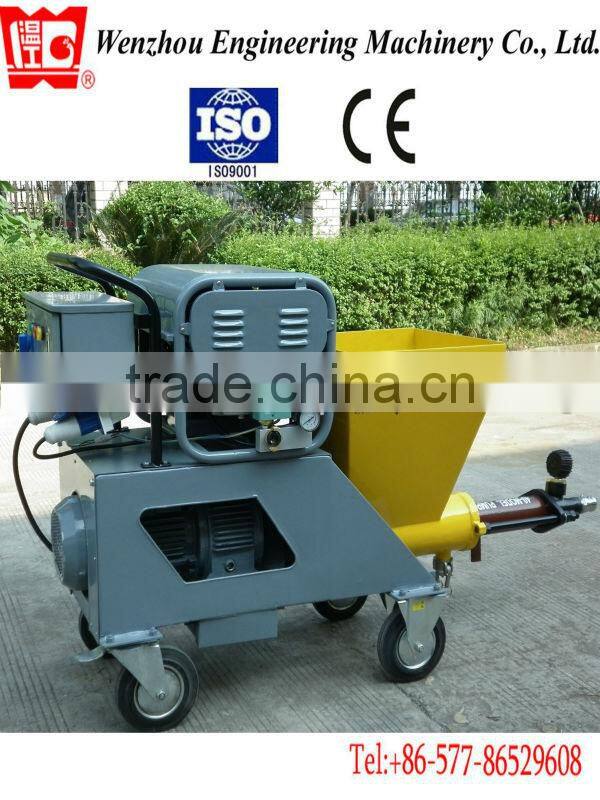

ISO9001:2008 JP40-II Wet Mortar Pump Mortar Sprayer Gun
- SHANGHAI/ NINBBO PORT
- T/T Credit Card
You May Like
-
2L6 Worm Pump -wall Plasterer Equipment Pump
-
Mixing Itself Putzmeister MP22 Dry Wall Plastering Machine
-
ISO9001:2008 UBJ1.8 Peristaltic Portable Grout Pump
-
Low Maintenance Cost UBJ3-Q Petrol Squeeze Hand Grout Pump
-
7.5 KW Mixject Wet Mortar Spray Machine Imported From France Technology
-
CE, 220V or 380V 50/60HZ Dry Mortars/plaster Machine
Product Details
| Condition | New | Application | plastering/rendering mortar | |
| Place of Origin | Zhejiang, China | Brand Name | wengong | |
| Model Number | JP40-II wet mortar pump | Dimension(L*W*H) | 1550x700x1020mm | |
| Weight | 280kgs | Certification | CE, ISO9001:2008 | |
| Warranty | 6MONTHS | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
wet mortar pump>ISO:9001,plaster mortar or gypsum wall
>varible speeds:0-40L/min
>capacity:3000m2/ 8hour
JP40-II Wet mortar pump
1. JP40-II is small plastering machine introduced German technology.
2. It's applied for delivery, bonding and plastering of various characteristics and use of ready-mixed dry mortar.
3. With variable speed regulation, can adjust plastering speed and output freely as your demand.
4. It sets the pressure controlling protection mechanism and achieves the remote control. Its structure is very compact, and it's easy to move and operate.
Technical parameters
Model | — | JP40- II |
Supply power | — | 400V 50Hz |
Motor power | kw | 4 |
Maximum grain size | mm | 5 |
Output | l/min | 30 |
Delivery pressure | bar | 30 |
Horizontal delivery distance | m | 50 |
Vertical delivery distance | m | 30 |
Hopper volume | L | 60 |
Net weight | kg | 280 |
Dimension (L×W×H) | mm | 1550×700×1020 |
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
The products are improved without notice!
1. JP40-11 is pumped mortar by screw mortar conveyor and stator & rotor.

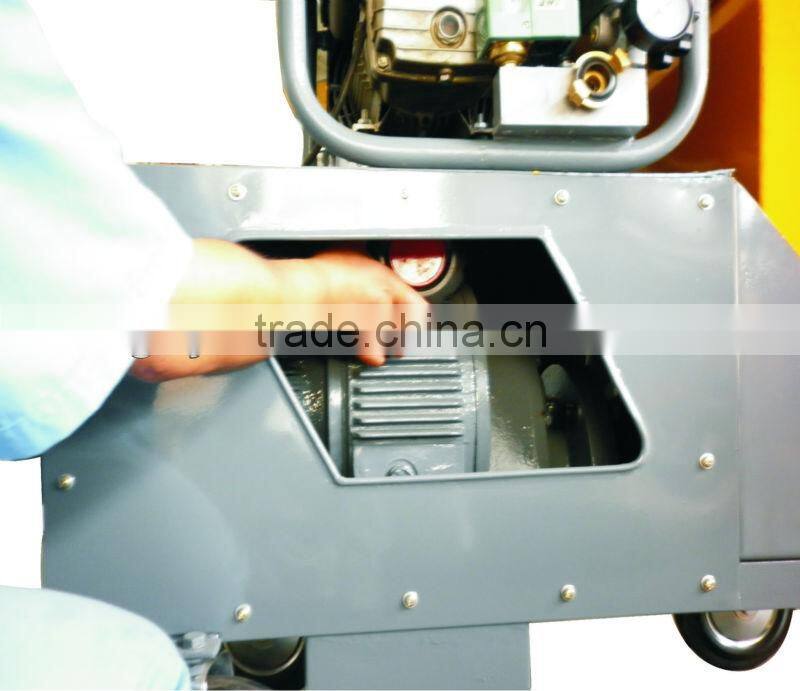

2. Working speed of JP40-11 can be adjusted freely from 0-30L/min via the red hadwheel on various speed motor.
3. JP40- II design structure is very sample as below shown:
4. JP40- II standard spare parts:
5. Our machine working in real construction plastering:
