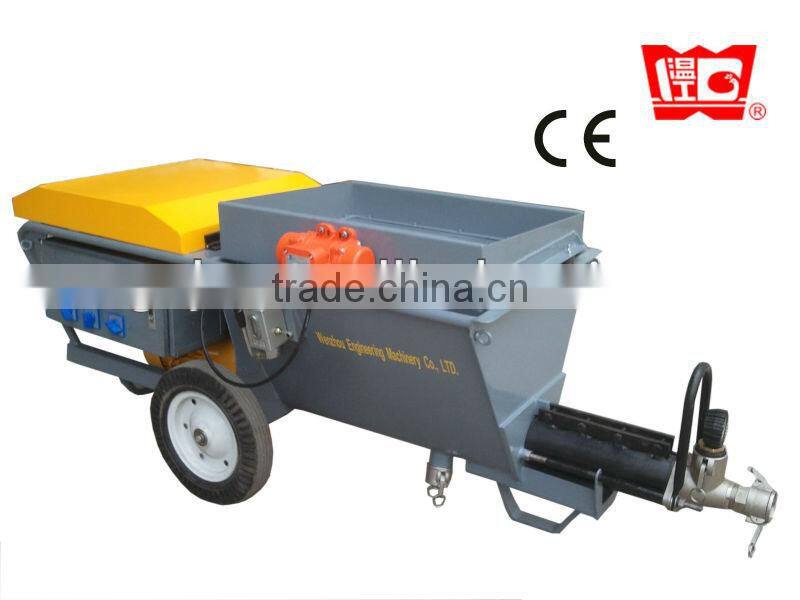

Newest model! smallest wall for plastering machine JP70-P
- 500 Set / Sets per Month
- SHANGHAI/NINGBO
- T/T Credit Card
You May Like
-
Hottest in Indian market! JP40-L cement coating machine
-
40L/min concrete mortar plaster screw pump
-
CE, ISO9001:2008 certificate JP60-L wall for plastering machine
-
ISO9001:2008 Aliva 6m3/h refractory spraying machine
-
JP60-L refractory spraying machine design same as Putzmeister S5EV
-
ISO9001:2008 JP40-II wet mortar pump mortar sprayer gun
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Power(W) | 4.0kw | Rendering Thickness | 30 mm | |
| Rendering Height | 30 m | Place of Origin | Zhejiang, China | |
| Brand Name | Wengong | Model Number | JP70-P wall for plastering machine | |
| Dimension(L*W*H) | 2290x680x660mm | Weight | 280kgs | |
| Certification | CE,iso9001:2008 | Warranty | 6months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
wall for plastering machine>ISO9001:2000;make 6years
>plaster&pump mortar,fireproof
>capacity:60L/min,25bar,3000m2/8hours
JP70-P Wall for plastering machine
1. It's optional to choose the universal various speed motor or two speed working motor for worm pump. It can spray for ready-mix dry and wet mortar out of a bag or silo.
2. The basis for this is a powerful worm pump with a performance of up to 60 l/min.
3. Suitable for: materials up to 6 mm grain, e.g. ground coat plasters and insulating plasters, rough coat and textured plasters, trowel plaster, adhesive bonded joint, masonry mortar, refractory mortar, sealing suspensions, injection mortar, filling and anchoring mortar, dispersion plaster, fiber mortar, fibreglass concrete, bonding mortar, floor screed – infinitely variable according to material from approx. 7 l/min to 60 l/min.
Technical parameters
Model | — | JP70-P |
Supply power | — | 400V 50Hz |
Motor power | kw | 4.0/5.1 |
Maximum grain size | mm | 8 |
Output | l/min | 40 |
Delivery pressure | bar | 30 |
Horizontal delivery distance | m | 60 |
Vertical delivery distance | m | 40 |
Mixer power | kw | — |
Mixer volume | l | — |
Hopper volume | L | 100 |
Net weight | kg | 280 |
Dimension (L×W×H) | mm | 1700×680×660 |

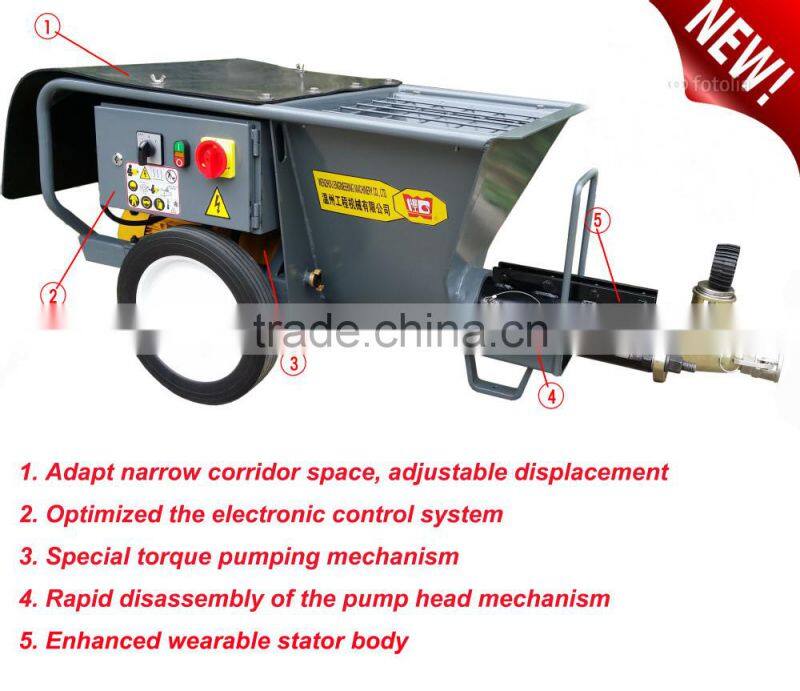

1. Wall plastering equipment JP70-P working structure as below, pumping motor and air compressor are made in Germany.
1. Make vibrating motor on JP70-P to avoid over lager grain size to block delivery hose and spraying gun.
3. JP70-P has been used for 3years in Mexcio and Philipines for plastering motar.
