Max Plastering Height 30m JP70-L Machine for Plaster for EPS Panels and Ceiling
- shanghai/ningbo
- T/T Credit Card
You May Like
-
German Handy Air Compressor JP60-P Plastering Machine China
-
Germany Motor 25L/min JP25 Fully Automatic Plaster Robot
-
2m3/h Universial- Speed Wall Plaster Sprayer Used for Mortar, Stucco, Gyspum
-
Squeeze Plastering Machine Adpoted Japanese Technology
-
ISO9001:2008 Manufactuer Fireproofing Spray Machine Over 15years
-
22L/min Crack Injection Pump for Injecting Crack, Mortar Plastering, Floor Screed
Product Details
| Condition | New | Application | plastering and grouting | |
| Place of Origin | Zhejiang, China | Brand Name | wengong | |
| Model Number | JP70-L machine for plaster | Dimension(L*W*H) | 2040x820x1270mm | |
| Weight | 395kgs | Certification | CE; ISO9001:2000 | |
| Warranty | 6months | After-sales Service Provided | Overseas third-party support available |
Product Description
JP70-L Machine for plaster

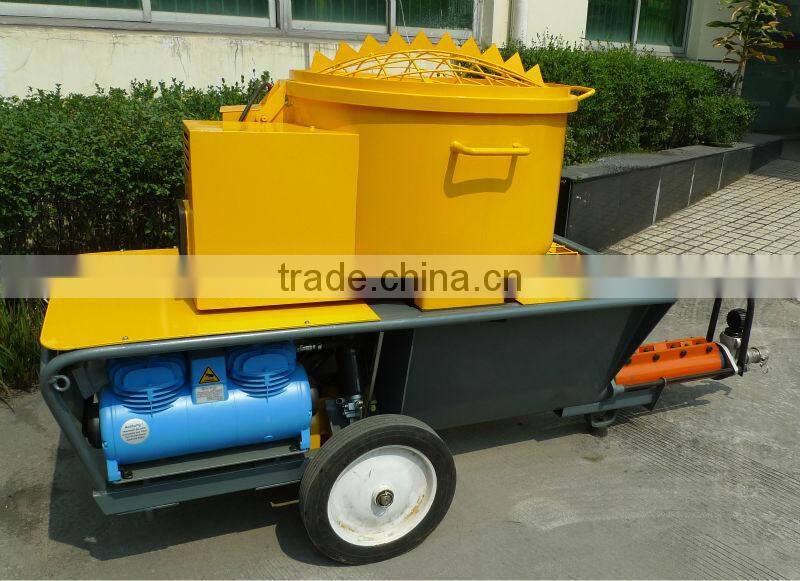

1. There are two options of air compressor and pumping motar for JP70-L plastering machines.
2.. For spraying or pumping traditional mortar and pre-mixed plasters, fiber-reinforced and refractory mortars, fireproof materials, self-leveling screeds and for reinforcing injections at controlled pressure.
Technical parameter
Model | — | JP70-L |
Supply power | — | 400V 50Hz |
Motor power | kw | 3.7/4.4 |
Compressor power | kw | 2.2 |
Maximum grain size | mm | 8 |
Output | L/min | 50 |
Delivery pressure | bar | 30 |
Horizontal delivery distance | m | 60 |
Vertical delivery distance | m | 30 |
Mixer power | kw | 1.1 |
Mixer volume | l | 120 |
Hopper volume | l | 120 |
Net weight | kg | 395 |
Dimension (L×W×H) | mm | 2040×820×1270 |
1. JP70-L always is exported to KUWAIT each month, it always is used for fireproofing mortar plastering in tunnel and steel board house.

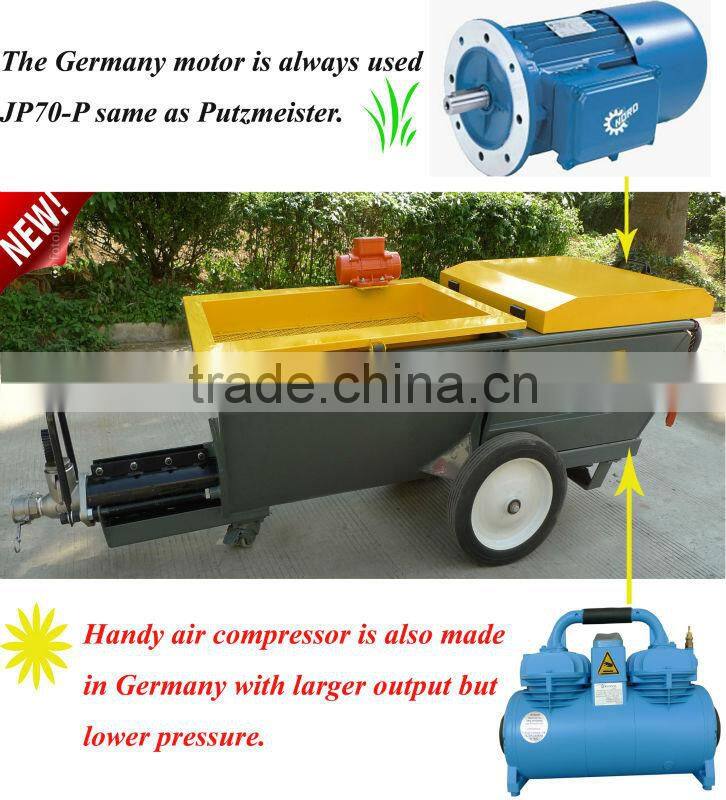

2. It's optional to choose air compressor and pumping motor made in German or made in China. JP70-L the main components are same as JP70-P as below shown:
3. JP70-L offered training service in India
4. It's suitable for large plastering about 1000-2000m2/7hours. There are 5people as one team: 1for plastering, 1for controlling machine, 1 for feeding hopper, 3for trowelling and finishing wall surface.

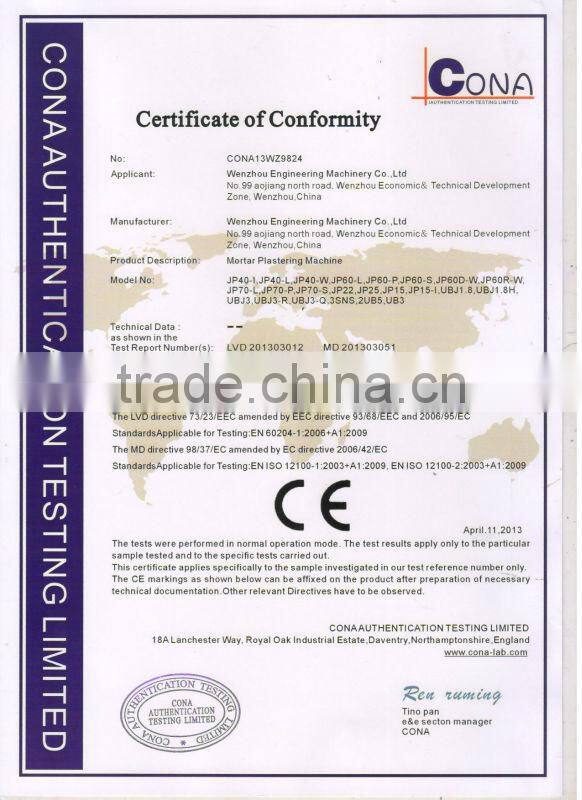

6. JP70-L CE certificate
