Home > Products > Concrete Mixer > JZC Series Rotating Drum Concrete Mixing Machine

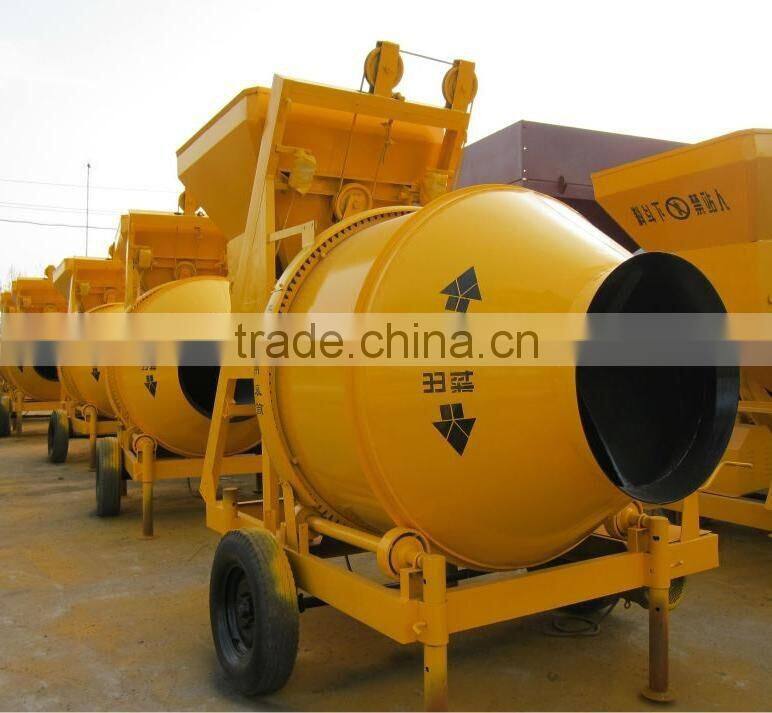

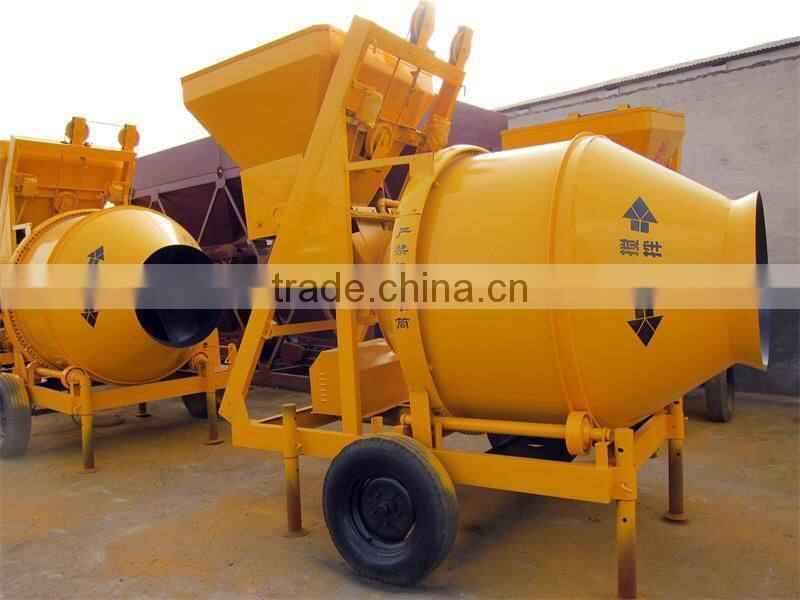

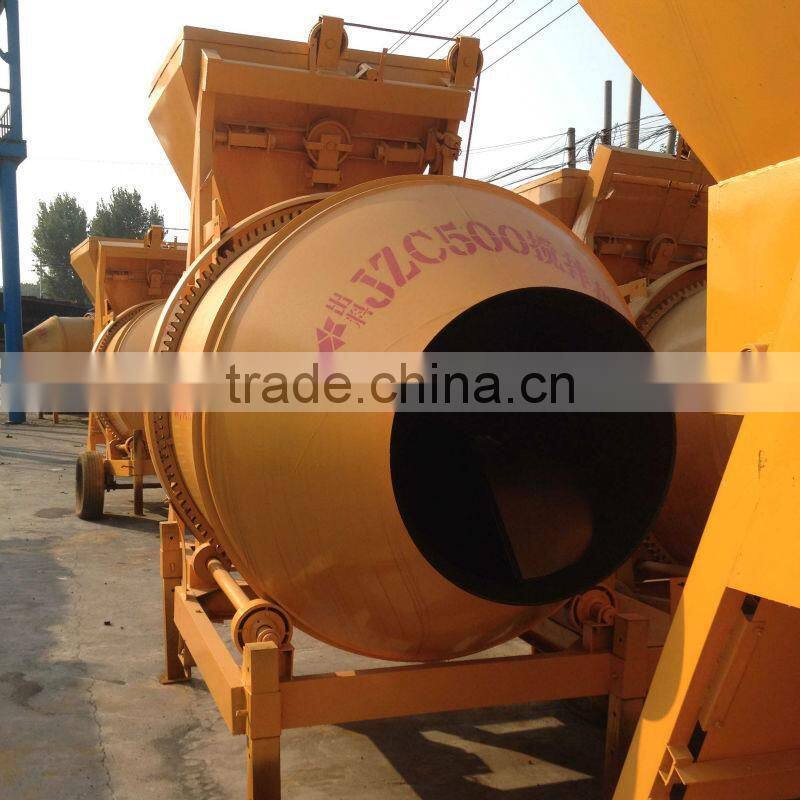

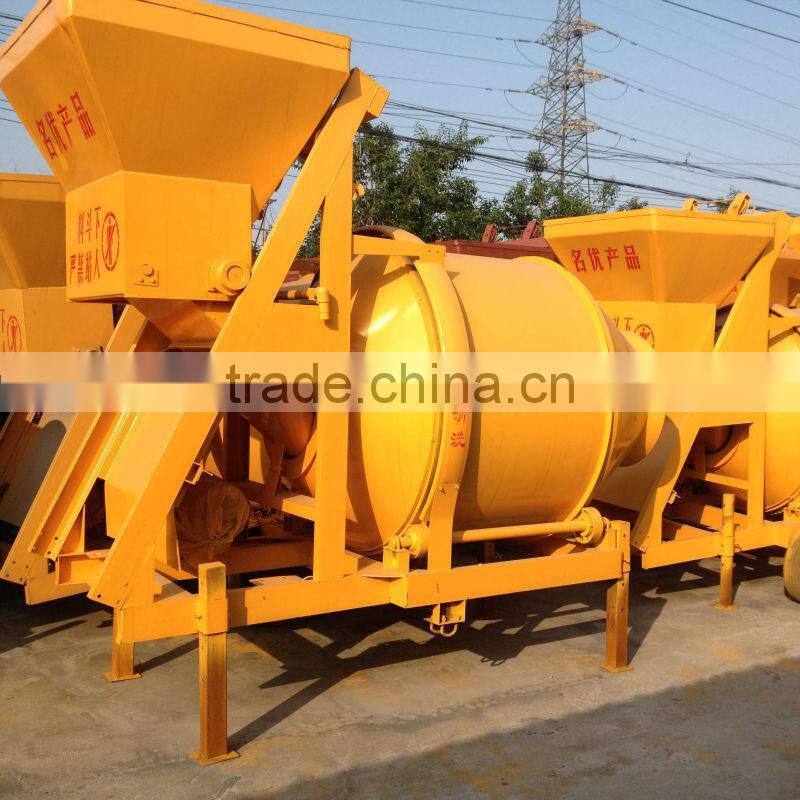

JZC Series Rotating Drum Concrete Mixing Machine

FOB Price

US$ 2,000 - 5,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	TENGFEI	Model Number	JZC500
Motor Power	17.6KW	Mixing Power	11KW
Charging Capacity	500L	Reclaiming capacity	800L
Speed of Mixing Drum	13r/min	Water Supply Mode	pump
Working Cycle Period	60s	Discharge Way	Auto
Outline Dimension	522622005460mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

JZC Series Rotating Drum Concrete Mixing Machine

Product Description

JZC series drum concrete mixing machine is self loading mobile concrete mixer, the mixing drum mixes the material by rotating positively ,and discharges by rotating reversely. They adopt Electric Motor or Diesel Engine for power supply and commonly install 2 tyres for mixer position moving,four adjustable legs,traction part.

It could be used for mixing plastic and dampdry rigid concrete.It is adaptable for architectural building site,civil engineer ,and bridge project, small and medium concrete plant.simple structure and lightweight,it is easy to clean and move.It is ideal for the relatively small construction site or homeowners.

Item	Specification	JZC350	JZC350B	JZC500
Working performance	Discharging Capacity (L)	350	350	500
	Charging Capacity (L)	560	560	680
	Production Capacity(m3/h)	10-14	10-14	18-20
	Max Aggregate Diameter	60	60	60
	Mixer Shaft Rev Speed (r/min)	14	14	14
	Water Supply Precision	error≤2%	error≤2%	error≤2%
Motor	Stirring Power (kw)	5.5	5.5	2*5.5
	Winding Power (kw)	0	4.5	5.5
	Water Pump Power (kw)	0.55	0.55	0.55
	Working Cycle Period (s)	60	60	60
	Tyre Size	6.5-16	6.5-16	7.5-16
	Max Pulling Speed (km/h)	20	20	20
	Dimension (mm)	276621403000	276621403000	522622005460
	Total Weight (kg)	1950	1950	3100

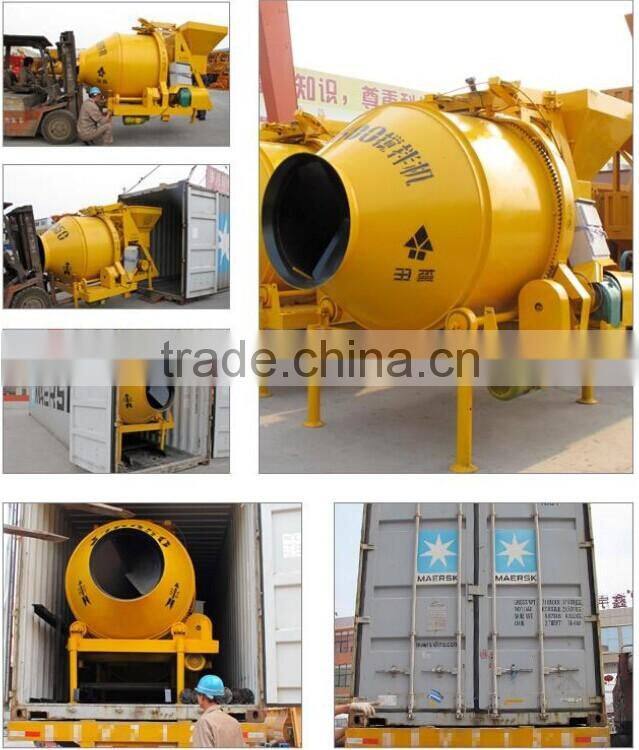

Packaging & Shipping

1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
