Home > Products > Concrete Mixer > ready concrete mixer for sale js1000/concrete mixer for sale
ready concrete mixer for sale js1000/concrete mixer for sale
- Qingdao/Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | TengFei | Model Number | JS1000 | |
| Motor Power | 37kw | Mixing Power | 37kw | |
| Charging Capacity | 1600L | Reclaiming capacity | 1000L | |
| Speed of Mixing Drum | JS1000 concrete mixer | Water Supply Mode | water pump | |
| Working Cycle Period | 60s | Discharge Way | Pneumatic discharge | |
| Outline Dimension | 10460*3400*9050mm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Size:10460*3400*9050mm2.Discharge capasity:1000L
3.Total weight: 8700KG
4.Total Power: 52KW

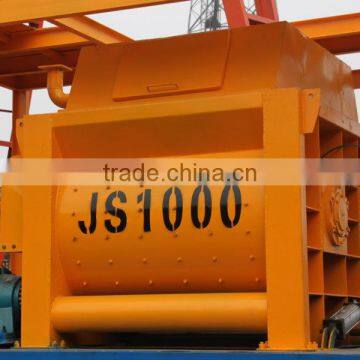

JS1000 electric concrete mixer machine
Electric concrete mixer machine Applications
JS1000 concrete mixer can mix dry rigid concrete, plastic concrete, the mobility of concrete, lightweight aggregate concrete and every kind of mortar.It could be used for all kinds of precast plants, highways, bridges, water conservancy, ports, terminals, etc. and construction sectors.
Overview
This series of products can not only be used as a stand-alone use but also be a mixing console to make up a concrete batching plant with series PL concrete batching machine.
Technical parameters Electric concrete mixers
Item | JS1000 | |
Discharging capacity (L) | 1000L | |
Charging capacity (L) | 1600L | |
Output Capacity(m3/h) | 50m3/h | |
Max. Aggregate Size (mm) | 60/80mm | |
Cycle Time (s) | 60-75s | |
Mixer Motor | Power (kw) | 37 |
QTY | 1 unit | |
Hoist Motor | Power (kw) | 11kw |
QTY | 1 unit | |
Water Motor | Power (kw) | 1.1kw |
QTY | 1 unit | |
Mixing Blade | Rotate Speed (r/min) | 25r/min |
QTY | 2*8=16 units | |
Feeding type | Skid Hopper | |
Discharging type | Pneumatic control, Automatically | |
Dimensions (m) | Transportation situation | 4.32*2.2*3.3m |
Working situation | 10.46*3.4*9.05m | |
Weight (t) | 6.8tons | |
Working principle
After electrify, the main raw material through the hopper, into the internal mixer, two stirring shaft by the motor reducer drive, in the opposite direction of rotation of the mixing work, make sufficient raw materials mixing
Detail about JS1000 electric concrete mixer machine
1.Stirring motor
2.Reducer
3.Hoister motor
4.Wear-resisting side plate
