Lifting Equipment
- Tianjin Qingdao Shanghai
- T/T D/P D/A
You May Like
Product Details
| Brand Name | BIDRAGON | Model Number | JTK | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1lifting equipment2Large steel wire capacity to 2000m
3We can make capacity 20T and so on
4Stability and reliability
Lifting Equipment
1.Introduction of Lifting Equipment
JTK series mine hoist is designed and manufactured to comform to PRC Safety Production Industry Standard for Single-rope Winding Mine Hoist.This product is mainly applied in the mine and ground vertical and inclined shafts for lifting and lowering materials,people or devices.The electrical equipment of this product is not explosion proof,so it is not suitable in inflammable and explosove places,such as gas and coal dust.
2.Features:
1Hoist reliability.
2. Availability and performance.
3. Reliable and efficient designs.
4. High quality steel made.
5. Every design meets the customer’s requirements.
6. Shaft equipment such as skips, ropes with attachments and measuring pockets.
7. Modern AC or DC drive systems.
8. Advanced digital control and monitoring.
9. Customer training.
3.Technical prameters:
| MODEL | WIRE ROPE | REDUCTION RATIO | MAX.LIFTING SPEED | MOTOR | OUTLINE DIMENSION(L*W*H) | MACHINE DESIGN WEIGHT | |||
| MAX. DIA. | Total Broken Tension | ROTATE SPEED | MAX.POWER | ||||||
| UNIT | mm | KN | i | m/s | r/min | kW | mm | Kg | |
| JTK | JTK-0.8×0.6 | 14 | 97.5 | 30 | 1.5 | 955 | 22 | 3000×2200×1700 | 3569 |
| JTK-1×0.8 | 12 | 97.5 | 30 | 1.8 | 960 | 45 | 3400×2125×1600 | 4860 | |
| JTK-1.2×1 | 14 | 136.5 | 30 | 2 | 967 | 55 | 4320×3540×1800 | 5739 | |
| JTK-1.6×1.2 | 20 | 279 | 30 | 4 | 979 | 132 | 5320×3000×2200 | 12669 | |
| 2JTK-1.2×0.8 | 14 | 136.5 | 30 | 2.5 | 967 | 55 | 5151×3540×1800 | 7934 | |
| 2JTK-1.6×0.9 | 20 | 279 | 30 | 4 | 976 | 110 | 6268×3000×2200 | 15609 | |
| JTKB | JTKB-1.2×1W | 20 | 270 | 30 | 1.9 | 980 | 55 | 4276×3650×1800 | 7836 |
| JTKB-1.6×1.2W | 26 | 405 | 30 | 2.6 | 990 | 132 | 5572×4365×1800 | 11369 | |

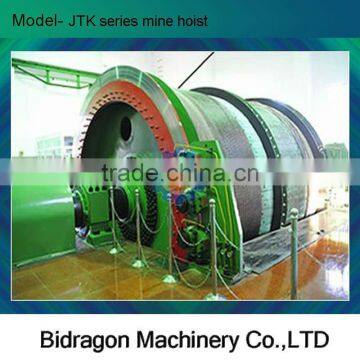

4.Pictures
If you need more information on hoist machine, contact with Robbon at any time!
