JZ-25/1500 series hydraulic winch manufacturers
- Tianjin Qingdao Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Bidragon | |
| Model Number | JZ-25/1500 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Large steel wire capacity to 2000M.2.We can make lifting 20T, 30T, 30T, 40T, 50T
3.Stability and reliability on operation
This equipment is used to lift the commodity such as coal, ore equipment and building materials. This equipment use electric motor as power source. The power passes through reducer to the drum.
We will appreciate much if you can give us some details below.
1. Usage of machine (mine or something else)
2. Lifting workers or materials
3. The loading capacity
4. Depth of mine (angle if inclined)
5. Dia. and width of drum
6. Dia. of the rope
7. Lifting speed you want (m/s)
8. The power and voltage of motor
9. The electrical control system
Applications:
JZ Series Shaft Sinking Winch is applied to overhang like scaffold ,water pump ,water pipe, grouting pipe, wind-cone, etc. during sinking operation on vertical shaft of coal ,metal and nonmetallic mine.
Technical Parameters:
| Model | JZ-5/400 | JZA-5/600 | JZ-10/800/1000 | JZ-16/800 | JZ-16/1000/1300 | JZ-25/1300/1500 | ||
| Maximum Static Tension of Rope | 5000KG | 5000KG | 10000KG | 16000KG | 16000KG | 25000KG | ||
| Rope Capacity | 400M | 600M | 800/1000M | 800M | 800/1300M | 1300/1500M | ||
| Mean Speed of Rope | High Speed | 6M/MIN | 6M/MIN | 6M/MIN | 6M/MIN | 6M/MIN | 6M/MIN | |
| Low Speed | 3M/MIN | 3M/MIN | 3M/MIN | 3M/MIN | 3M/MIN | 3M/MIN | ||
| Twisting Layers | 6 Layers | 10 Layers | 7 Layers | 6 Layers | 7 Layers | 9 Layers | ||
| Rope Diameter | 23MM | 23MM | 31MM | 40MM | 40MM | 52MM | ||
| Winding Drum | Diameter | 400MM | 400MM | 800MM | 1000MM | 1000MM | 1050MM | |
| Width | 900MM | 1000MM | 1050MM | 1400MM | 1400MM | 1560MM | ||
| Center Height | 650MM | 580MM | 800MM | 1050MM | 1050MM | 1250MM | ||
| Speed Ratio | Reducer | High Speed | 50 | 50 | 63.5 | 77 | 77 | 77 |
| Low Speed | 100 | 100 | 127 | 154 | 154 | 154 | ||
| Overall gear ratio | High Speed | 252.5 | 252.5 | 388 | 506.6 | 506.6 | 506.6 | |
| Low Speed | 505 | 505 | 776 | 1013.2 | 1013.2 | 1013.2 | ||
| Motor | Model | Y160L-6 | Y160L-6 | Y200L2-6 | YR250M1-8 | YR250M1-8 | YZR280M-8 | |
| Power | 11KW | 11KW | 22KW | 30KW | 30KW | 55KW | ||
| Rotate Speed | 970 Rp/M | 950 Rp/M | 970 Rp/M | 720 Rp/M | 720 Rp/M | 728 Rp/M | ||
| Voltage | 380V | 380V | 380V | 380V | 380V | 380V | ||

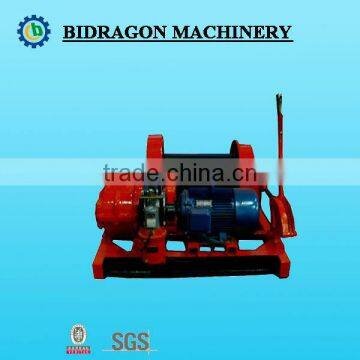

Pictures:
