Home > Products > Mine Equipment > JZ-25/1300 series hoists and winches

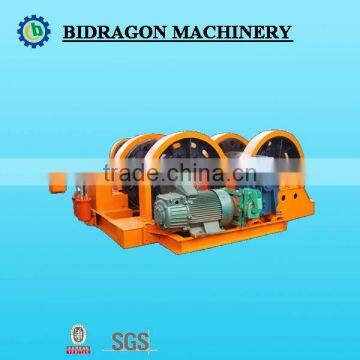

JZ-25/1300 series hoists and winches
US$ 5,000 - 8,000
/ Set
1 Set(Min. Order)
- Tianjin Qingdao Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Bidragon | |
| Model Number | JZ-25/1300 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Large steel wire capacity to 2000m2.We can make capacity 20T, 30T, 30T, 40T, 50T
3.Stability and reliability on operation
This equipment is used to lift the commodity such as coal, ore equipment and building materials. This equipment use electric motor as power source. The power passes through reducer to the drum.
Applications:
JZ Series Shaft Sinking Winch is applied to overhang like scaffold ,water pump ,water pipe, grouting pipe, wind-cone, etc. during sinking operation on vertical shaft of coal ,metal and nonmetallic mine.
Technical Parameters:
| Model | JZ-5/400 | JZA-5/600 | JZ-10/800/1000 | JZ-16/800 | JZ-16/1000/1300 | JZ-25/1300/1500 | ||
| Maximum Static Tension of Rope | 5000KG | 5000KG | 10000KG | 16000KG | 16000KG | 25000KG | ||
| Rope Capacity | 400M | 600M | 800/1000M | 800M | 800/1300M | 1300/1500M | ||
| Mean Speed of Rope | High Speed | 6M/MIN | 6M/MIN | 6M/MIN | 6M/MIN | 6M/MIN | 6M/MIN | |
| Low Speed | 3M/MIN | 3M/MIN | 3M/MIN | 3M/MIN | 3M/MIN | 3M/MIN | ||
| Twisting Layers | 6 Layers | 10 Layers | 7 Layers | 6 Layers | 7 Layers | 9 Layers | ||
| Rope Diameter | 23MM | 23MM | 31MM | 40MM | 40MM | 52MM | ||
| Winding Drum | Diameter | 400MM | 400MM | 800MM | 1000MM | 1000MM | 1050MM | |
| Width | 900MM | 1000MM | 1050MM | 1400MM | 1400MM | 1560MM | ||
| Center Height | 650MM | 580MM | 800MM | 1050MM | 1050MM | 1250MM | ||
| Speed Ratio | Reducer | High Speed | 50 | 50 | 63.5 | 77 | 77 | 77 |
| Low Speed | 100 | 100 | 127 | 154 | 154 | 154 | ||
| Overall gear ratio | High Speed | 252.5 | 252.5 | 388 | 506.6 | 506.6 | 506.6 | |
| Low Speed | 505 | 505 | 776 | 1013.2 | 1013.2 | 1013.2 | ||
| Motor | Model | Y160L-6 | Y160L-6 | Y200L2-6 | YR250M1-8 | YR250M1-8 | YZR280M-8 | |
| Power | 11KW | 11KW | 22KW | 30KW | 30KW | 55KW | ||
| Rotate Speed | 970 Rp/M | 950 Rp/M | 970 Rp/M | 720 Rp/M | 720 Rp/M | 728 Rp/M | ||
| Voltage | 380V | 380V | 380V | 380V | 380V | 380V | ||
Pictures:
