Home > Products > New Products > DZ18-2 concrete laser screed for sale
DZ18-2 concrete laser screed for sale
- Qingdao Port
- T/T
You May Like
-
The one manufacture of new type of mini mobile concrete batching plant
-
Concrete batching plant,MB1200 mobile concrete plant
-
Steel silo prices,professional cement silo manufacture
-
Small mini powder storage silo
-
CMP750 Planetary concrete mixer ,concrete mixer,vertical shaft concrete mixer
-
Horizontal cement silo,portable cement silo
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SZ | Model Number | DZ18-2 | |
| Power Source | Electric | Power(W) | 3KW | |
| Voltage | 220v | Weight | 165KG | |
| Dimension(L*W*H) | 272x95x104mm | Certification | ISO | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DZ18-2 concrete laser screed for sale
1.Introduction:

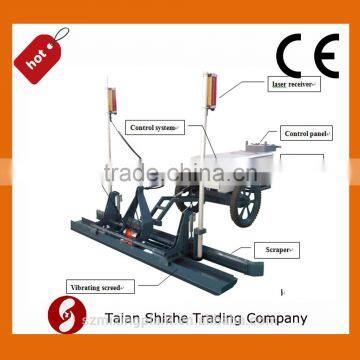

Laser screed is made of machine body and screed system. The screed system is the main part, t includes: scraper, vibrating screed, vibrating motor, control system, control panel and laser receiver.
When it works, laser transmitter transmit rotate laser, after the laser receiver receive the signal, laser measuring and controlling system will analyze it and feedback it to computer control system who can control the left and right linear actuators to adjust the height of the scraper, so that it can make sure of the leveling accuracy.
Laser screed can take away the concrete that was scraped to reach the designed standard height. The vibrating frequency is 4000 times per minute. Working width is 1.8m.
2.Technical Data
Parameters | DZ18-2 | DZ25-2 |
Engine | ||
Model | HOND GX200 | HOND GX200 |
Features | Gasoline | Gasoline |
Electrical Start | Electrical Start | |
Single Cylinder | Single Cylinder | |
Power | 6.5Hp/3600RPM | 6.5Hp/3600RPM |
Oil tank volume | 17L | 17L |
Hydraulic oil Volume | 0.4L | 0.4L |
Fuel consumption | 125G/KWH | 125G/KWH |
Traveling System | ||
Driving | Electric Double-Driving | Electric Double-Driving |
Wheels | Solid Puncture-Proof Tyre | Solid Puncture-Proof Tyre |
No-Working Speed | 0-40 M/Min | 0-40M/Min |
Working Speed | 0-8 M/Min | 0-8M/Min |
Laser Control System | ||
Control Type | Microcomputer Laser Scan | Microcomputer Laser Scan |
Control Effect | Flat,Slope,Double Slope(3D) | Flat,Slope,Double Slope(3D) |
Operating Way | Walk-Behind Type | Walk-Behind Type |
Go Forward And Backward | Electric Button | Electric Button |
CVT(Continuously Variable Transmission) | CVT(Continuously Variable Transmission) | |
Steering | Electric | Electric |
Leveling System | ||
Leveling Way | Automatic Self-Leveling | Automatic Self-Leveling |
Width | 180CM | 250CM |
Paving Way | Scraper | Scraper |
Exciting Force | 2000N | 2000N |
Vibration Frequency | 50HZ | 50HZ |
Paving Thickness | 5-50CM | 5-50CM |
Scraper | Automatic | Automatic |
Leveling Control | ||
Dimension And Weight | ||
Dimension | 272x95x104(CM) | 272x119x109(CM) |
Weight | 165Kg | 205KG |
3.Advantage
a. High quality
It has little working error and high wholeness.It vibrates 4000 times per minute to make the surface much more dense and evenly.
b. High efficient
It is suitable for large area.Every working team need 8 workers. They can finished 300m2 /h.
c. Reduce cost
It has high degree of automation. So it can reduce the cost of plywood, steel frame and workers. Also with high quality of the finished surface, the cost of maintenance is very little.
4.Deatail of the screed
Laser receiver and transmitter
Any problems,feel free to contact us,pls.
