Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SZ | Model Number | ZDN42 | |
| Type | Internal | Drive Mode | Electric Vibrator | |
| Frequency | 12000vpm | Vibrating Amplitude | >=1.5mm | |
| Length of Flexible Shaft | 355mm | Voltage | 220v/380v | |
| Power(W) | 1.2kw | Weight | 11kg | |
| Dimension(L*W*H) | 355*210*212mm | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Manufacture supply directly Popular overseas concrete vibrator for sale
ZND series concrete vibrator is the newest motor-in-head high frequency vibrator .ZDN 220v series use brushless permanent magnet motor featuring high torque and high efficiency.
Using 220v power, it is not only suitable to small and medium size projects, but also residence communities and rural areas without 380v power.
Technical parameter
Item | Unite | Data |
Series | 220V series | |

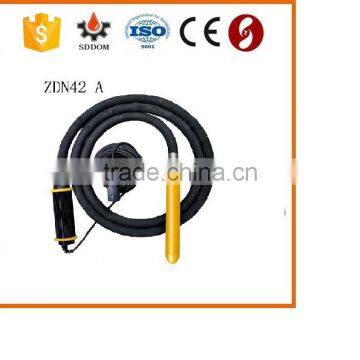

Model | ZDN42 A type & ZDN42 B type | |
Diameter | mm | 42 |
Length | mm | 355 |
Vibration Frequency | vpm | 12000 |
Amplitude | mm | ≥1.5 |
Centrifugal Force | N | 3200 |
Voltage | V | 220 |
Power | KW | 1.2 |
Net weight | Kg | 11 |
The conventer of Model A connects the hose,workers can carry it on their shoulders with a strap.
Since the switch is on the converter,it is easy to turn on and off.
The converter of Model B is at the end of the cable,which can keep it away from the concret mud.
It is easy to keep the converter clean,thus saving time in maintance.
Converter
Vibrator head
Air plug
The whole set
Features
1. portable, only 11 Kg ,save 50% labor cost;
2. long working life,5 times as long as the conventional ones;
3. powerful centrifugal force:12000vpm,200HZ;
4. low noise, only 70db.
Portable&Powerful
ZDN 220v series frequency concrete vibrators adopt buildin motor design with the whole unit weighting only 13kgs. Oneworker can easily operator it, which can save a lot of labor cost.At the same time, it’s 12000 vpm powerful centrifugal force ensures high efficiency in concrete paving work.
Durable
ZDN 220v series use centrifugal block structure to provide stable, high-frequency vibration(12000vpm) . Its working life is 5 times as long as the conventional ones.
the structure of vibrator
Low noise
With only 70db noise, ZDN series vibrator will not disturb the resident around construction sites.
On-site application
20 sets package
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided
5. Our Products can be customized according to clients' different requirement.
Taian Shizhe Trading Company, combined with the manufacture(Shandong DOM Machinery Equipment Co., Ltd) and trading company, mainly produce and export Concrete Batching/mixing Plant, Asphalt Mixing Plant, Stabilized Soil Mixing Plant and related equipments, including cement silo, concrete mixer, batching machine, screw conveyor and so on. Besides, small road machine, tower crane and other construction machinery are also an area for research and development.
Our customers are from 43 countries all over the world. We provide customize service for our customers.
We are a young company with rapid developing speed, energetic and professional research and develop team, young and responsible sales managers. We want positive assessment from our customers and provide best quality and service.
