Home > Products > Home Appliance Motor > GM20-180 of 20mm dc gear motor with encoder 12v mini home appliance motor

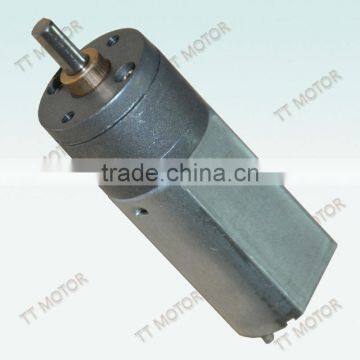

GM20-180 of 20mm dc gear motor with encoder 12v mini home appliance motor
USD $3.8 - $4.5
/ Piece
100 Pieces(Min. Order)
- Hong Kong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOR | |
| Model Number | GM20-180SH | Type | Other, gear motor | |
| Use | Other, Electrical Lock,Optic Equipment. | Motor | Brush | |
| Voltage | Other, 6.0 V | Certification | Other, TS16949,QS9000,ROHS |
Product Description
Specifications
dc gear motor,GM20-180SH:1.Rated Voltage:3-12V
2.Speed:110,240RPM
3.Stall Toruqe: 3.5kg.cm
4.Low Noise,Reliable performance
MODEL:GM20-180SH,12v dc gear motor
20mm dc motor with gearbox,with planetary gearbox,Can be equipped with encoder
1.Widely used in robot,lock. Auto shutter, USB fan,
=====Slot machine,Money detector,
=====Coin refund devices,Currency count machine,
=====Towel dispensers,Automaitic doors,Peritoneal =====machine,Automatic TV rack,Office equipemt ,
=====Household appliances,Automatic
2.Voltage:3-24V
3.Speed:3-1500RPM
4.Stall Torque: 20kg.cm
5.Low noise,low current no spark
6.electric motor with encoder,3-16 pulse signal
7.Reduction Ratio:3-1000
8.size:20*45 mm,just 45.0 mm length mini motor
9.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days
| Typical Applications | Description |
| Automatic window curtain, Financial apparatus, Electronic game machine. Storage box, Ad equipment, Audio equipment, Electronic game machine. | Gear motor reduction ratio: 20MM GEARBOX Reduction Ratio: 29 31.2 L=15.9 31.2 55.9 73 78 L=17.4 107 140 182 L=18.9 205.4 268 349 446 488 L=20.4 |
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM20-180SH | 1250-31 | 6-15 | 12.0 | 160 | 0.04 | 138 | 0.1 | 0.025 | 0.25 | 0.35 | 0.18 | 1.8 | 0.42 |
1250-78 | 6-15 | 12.0 | 64 | 0.04 | 55 | 0.1 | 0.05 | 0.5 | 0.29 | 0.38 | 3.8 | 0.42 | |
1250-195 | 6-15 | 12.0 | 25 | 0.05 | 22 | 0.11 | 0.11 | 1.1 | 0.27 | 0.87 | 8.7 | 0.42 | |
1250-488 | 6-15 | 12.0 | 10 | 0.05 | 8.5 | 0.11 | 0.26 | 2.6 | 0.24 | 1.9 | 19 | 0.42 | |
24100-31 | 15-28 | 24.0 | 329 | 0.05 | 277 | 0.19 | 0.05 | 0.5 | 1.5 | 0.32 | 3.2 | 0.83 | |
24100-78 | 15-28 | 24.0 | 130 | 0.05 | 110 | 0.19 | 0.11 | 1.1 | 1.2 | 0.68 | 6.8 | 0.83 | |
24100-195 | 15-28 | 24.0 | 52 | 0.06 | 44 | 0.2 | 0.25 | 2.5 | 1.1 | 1.5 | 15 | 0.83 | |
24100-488 | 15-28 | 24.0 | 21 | 0.06 | 17 | 0.2 | 0.56 | 5.6 | 1.0 | 2.0 | 20 | 0.83 | |
10165-25 | 3.0-8.0 | 6.0 | 240 | 0.06 | 205 | 0.23 | 0.02 | 0.20 | 0.40 | 0.13 | 1.30 | 1.2 | |
16140-62 | 3.0-8.0 | 6.0 | 110 | 0.14 | 85 | 0.45 | 0.10 | 1.00 | 0.87 | 0.34 | 3.50 | 1.5 | |
