TEC2419 12volt dc motor high rpm
Negotiable
/ Piece
100 Pieces(Min. Order)
- HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | TEC2419 |
Product Description
Specifications
brushless motor,TEC2419 is widely used in1.air pump
2.Oxygen machine
3.automatic energy saving bath
4.both shaft brushless
TEC2419 12volt dc motor high rpm
Description:
1.Can match planet gearbox
2.no load speed:6200,8800rpm,stall torque:100,150g.cm
3.Built-in driver.
4.24.0 X 19.0 mm, just 19mm length mini motor
5.PWM Pulse wide speed range
6.Clockwise/Counter-clockwise rotation
7.FGS peed feedback signal
8.Over-current protection
9.Over-voltage protection
10.Under-voltage protection
11.30000H life time
12.Number of motor phase:3
5.PWM Pulse wide speed range
6.Clockwise/Counter-clockwise rotation
7.FGS peed feedback signal
8.Over-current protection
9.Over-voltage protection
10.Under-voltage protection
11.30000H life time
12.Number of motor phase:3
Motor Technical Data
Gear Motor Dimensions (mm)
Type | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
TEC2419-1262 | 12.0 | 6200 | 90 | 4800 | 20 | 180 | 1.4 | 105 | 0.75 |
TEC2419-2487 | 24.0 | 8700 | 70 | 7000 | 20 | 150 | 2.5 | 130 | 0.70 |
|
|
|
|
|
|
|
|
|
|

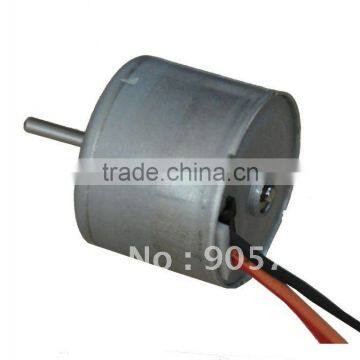

Products picture:
Parameters and shaft size can be Customized. We can offer you the samples for your reference first.
