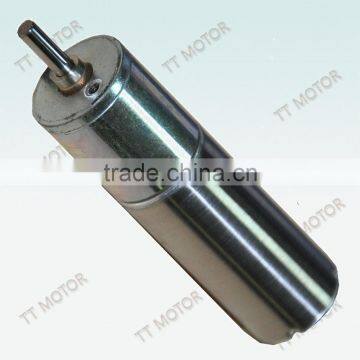

100rpm 16mm dc planetary gear motor with brushless motor

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TT Motor
Model Number	GMP16-TEC1636	Usage	Home Appliance, Other, Home Appliance, Robot, Medical equipment
Certification	ROHS	Type	Other, Brushless motor
Torque	0.1-5kg.cm	Construction	Permanent Magnet
Commutation	Brushless	Protect Feature	Explosion-proof
Speed(RPM)	4.5-2200rpm	Continuous Current(A)	2.4A max
Output Power	12w	Voltage(V)	12v 24v
Efficiency	Other, 80%

100rpm 16mm dc planetary gear motor with brushless motor

GMP16-TEC1636

Application

robot,lock. Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices
Currency count machine, Towel dispensers, Automatic doors,Peritoneal machine
Automatic TV rack, Office equipemt ,Household appliances,Automatic, medical screwdriver, robotic arms
laboratory stirrer

Characters

size:16*50 mm,just 50.0 mm length mini motor
Voltage:12V 24V
Rated spped: 4.5-2200rpm
Rated torque:5kg.cm
Reduction ratio: 4,16,29,62,104,198,231,370,455,690,850,1996,3027
16mm Planetary Gearsbox plus 16 brushless coreless motor, can be equipped with brushless motor controller
provide 0.3Nm torque
can be equiped with encoder,16 pulse signal
Samples can be sent first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.
Funciton offered: Brake, FR(CW and CCW), PWM, FG signal

Parameters and dimensions of 100rpm 16mm dc planetary gear motor with brushless motor

Gearbox with motor:GMP16-TEC1636-12120-XXX-12V

Reduction ratio	4	16	29	62	104	198	231	370	850	1996
Length mm	15.5	18.7	18.7	22.4	22.4	26	26	26	26	29.7
No-load speed rpm	2700	700	400	180	110	55	45	30	13	5
Rated speed rpm	2200	600	320	150	90	45	40	27	11	4.5
Rated torque kg.cm	0.1	0.4	0.7	1.5	2.8	5	5	5	5	5
entary tolerance torque kg.cm	0.5	2	3	8	9	9	9	9	9	9

Gearbox with motor:GMP16-TEC1636-24120-XXX-24V

Reduction ratio	4	16	29	62	104	198	231	370	850	1996
Length mm	15.5	18.7	18.7	22.4	22.4	26	26	26	26	29.7
No-load speed rpm	2700	700	400	180	110	55	45	30	13	5
Rated speed rpm	1600	430	240	100	65	45	40	25	11	4.5
Rated torque kg.cm	0.2	0.7	1.3	2.9	5	5	5	5	5	5
entary tolerance torque kg.cm	0.5	2	3	8	9	9	9	9	9	9
