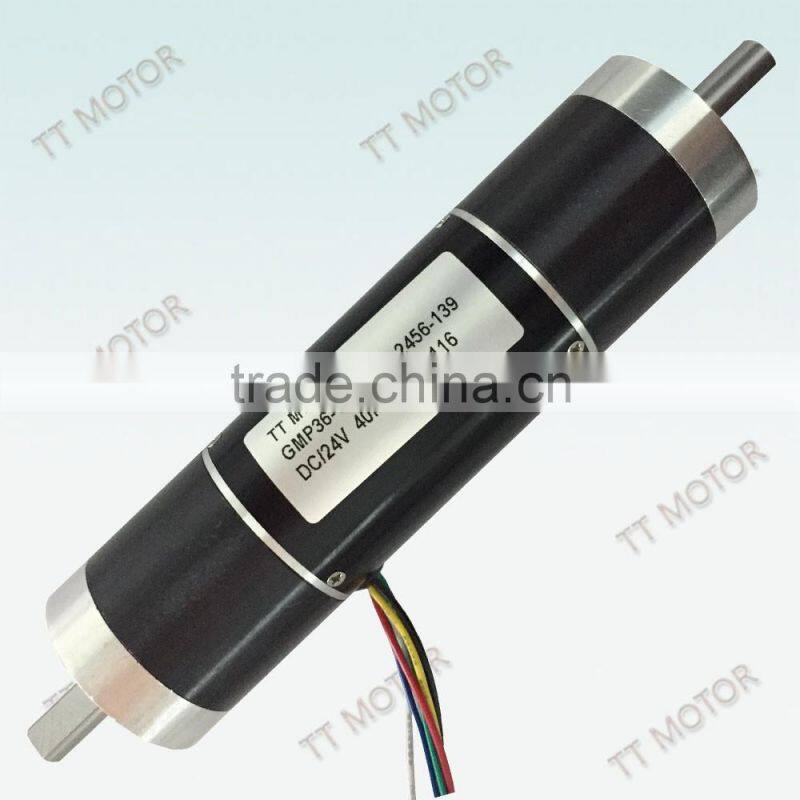

24v Automatic Door Operators dc Motor With Gearbox
- HK
You May Like
-
24v 36mm Planetary Gear dc Motor for Automatic Energy Saving Bath
-
24v 36mm Brushless dc Motor With Encoder
-
51mm High Torque Electric Motor With Reduction Gear
-
High Torque 24v dc Motor Geared
-
24v dc Planetary Gear Motor and dc 12v 24v Micro Motor
-
36mm dc Gear Motor 24v Motor Big Torque Low Speed Motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | GMP36-TEC3650 |
Product Description

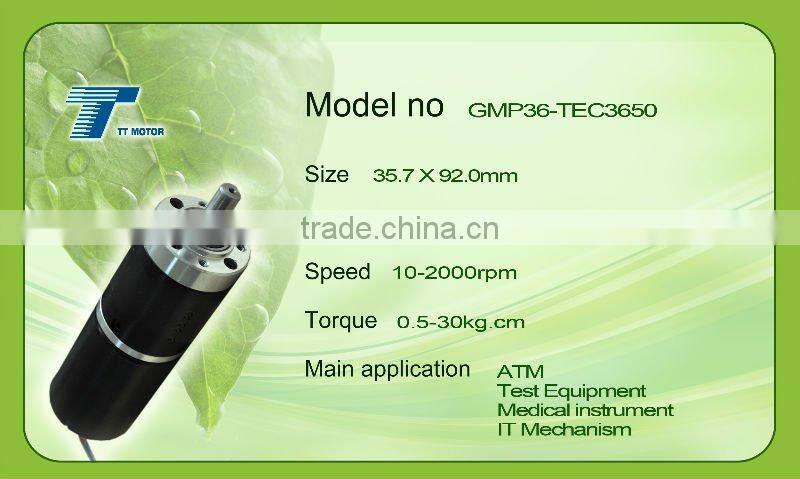

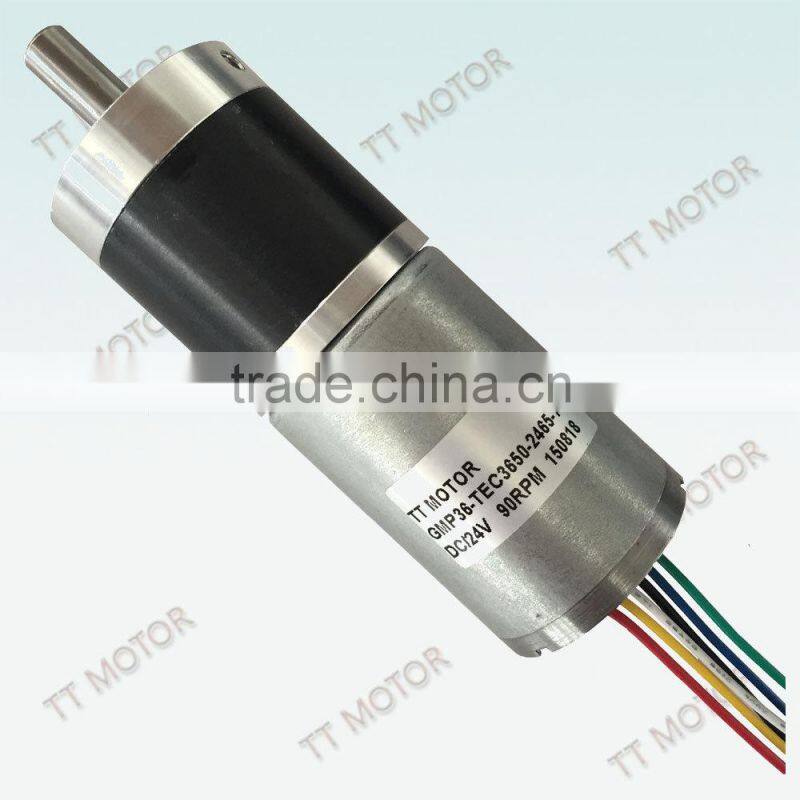

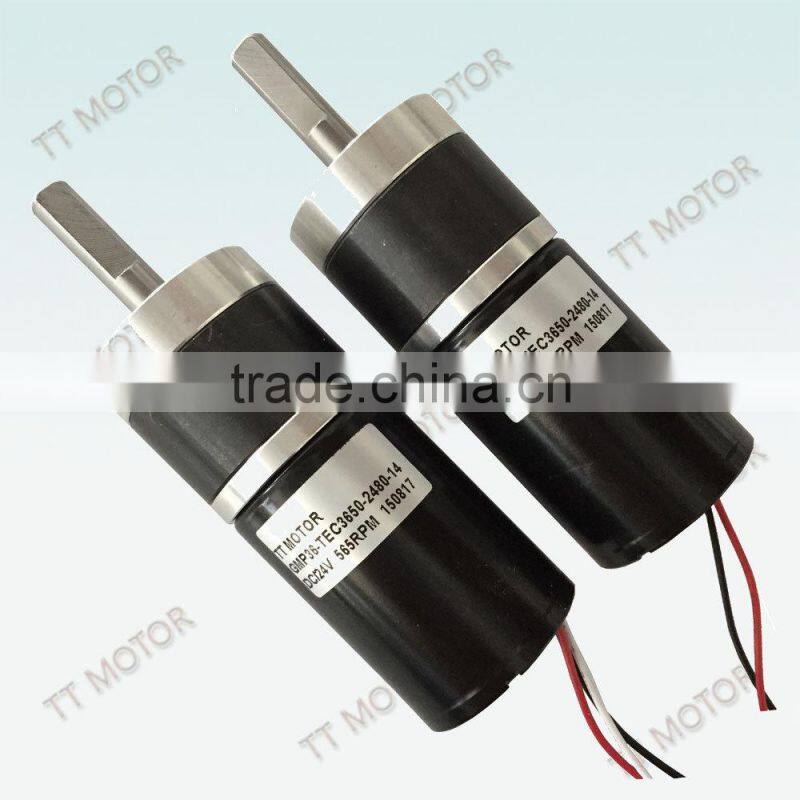

Model No: GMP36-TEC3650
24v 36mm for automatic energy saving bath dc motor

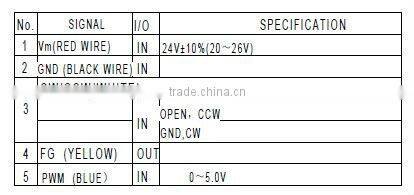

2.voltage:12.0V/24.0V

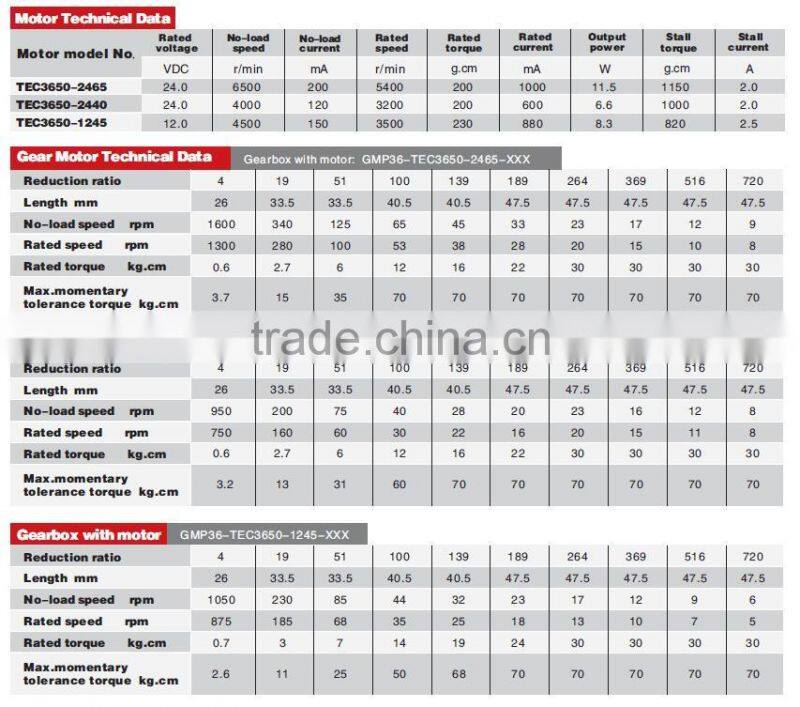

3. reduction ratio: 4,14,19,27,51,71,100,139,189,264,369,516,720
4.Clockwise/Counter-clockwise rotation
5.PWM Pulse wide speed range
6.FGSpeed feedback signal
7. Over-current protection
Over-voltage protection
Under-voltage protection
8. 10000H life time

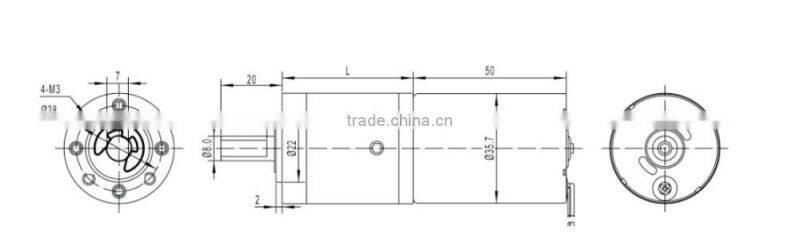

9.shaft:8.0mm diameter,usually 7mm D shaft
10.mounting holes:4-M3.0
11.we can provide samples for your test
1. Bank System: ATM Machine, Money Detector, Financial Apparatus
2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine, Slot machine, advertising machine
3. Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer ,hair dryer
4. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment, Portable Air Pump, Diaphragm Pump
5.Home Appliance: Kitchen Appliance, TV Lift, Auto Cleaner, Auto Toilet Lid, Micro Vacuum Cleaner, Electric Curtain, Electric Fan
6.Robot and Robot Arm, Electrical Scooter
7.Office Products: Printer, Paper Shredder, Label Machine, Intelligent Electronic Device
Other applications such as bake machine, package machine, warm-light, horse feeders, electric valve, machinery equipment.....
