TEC3625 12v mini brushless motor with long life time low noise
- 10000 Piece / Pieces per Month
- HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | TEC3625 |
Product Description
Model No: TEC3625

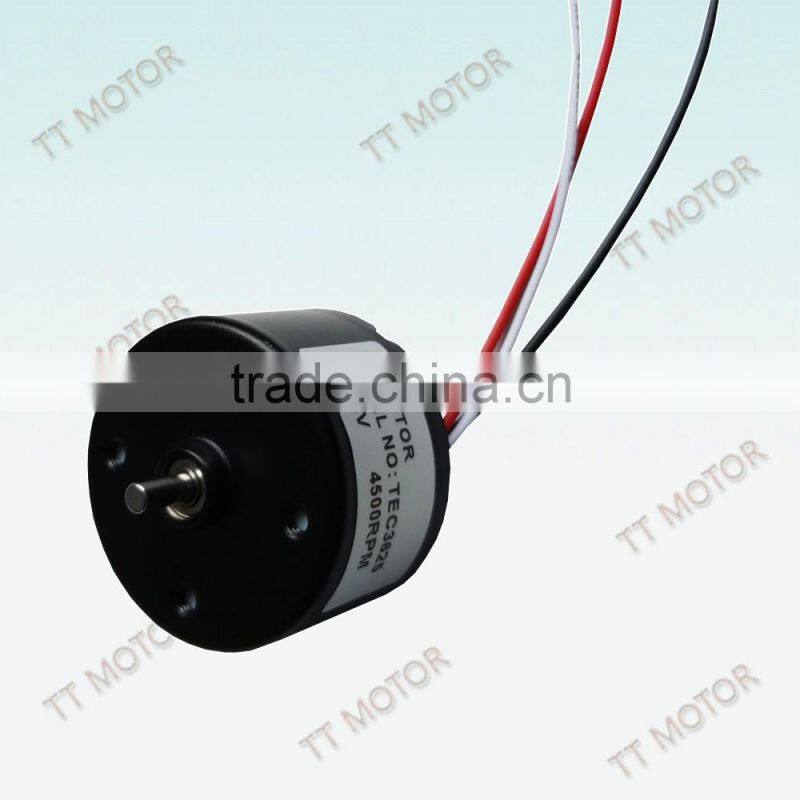

12v mini brushless motor with long life time low noise
1.typical applications:automatic energy saving bath,
electrical controlled valve,oxygen machine,optical equipment
Automat cordless power tool,lighting
2.Built-in driver
3.additional description:Clockwise/Counter-clockwise rotation
FGSpeed feedback signal
Over-current protection
Over-voltage protection
Under-voltage protection
Number of motor phase: 3

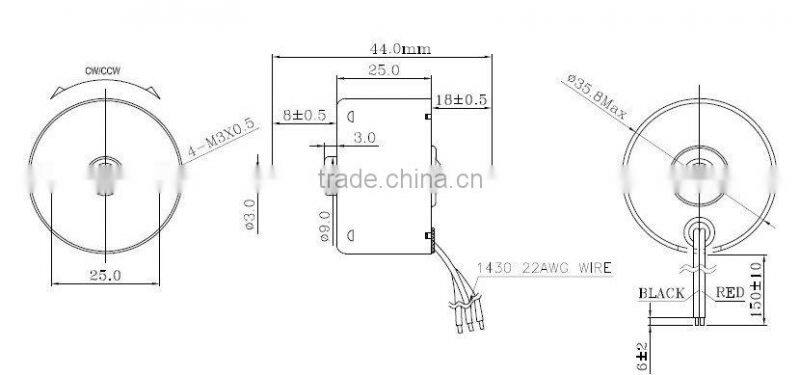

4.size:36.0 X 25.0mm,25mm length micro motor
5.we can suply dc motor,brushless motor,gear motor,stepping motor,planet gear motor,electric motot, brushless gear motor,etc.
1. Bank System: ATM Machine, Money Detector, Financial Apparatus
2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine, Slot machine, advertising machine
3. Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer ,hair dryer
4. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment, Portable Air Pump, Diaphragm Pump
5.Home Appliance: Kitchen Appliance, TV Lift, Auto Cleaner, Auto Toilet Lid, Micro Vacuum Cleaner, Electric Curtain, Electric Fan
6.Robot and Robot Arm, Electrical Scooter
7.Office Products: Printer, Paper Shredder, Label Machine, Intelligent Electronic Device
Other applications such as bake machine, package machine, warm-light, horse feeders, electric valve, machinery equipment.....
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
TEC3625 | A | 12.0-24.0 | 12 | 4500 | 0.09 | 4100 | 0.05 | 30.0 | 310 | 8.0 | 75.0 | 850.0 | 1.0 |
B | 12.0-24.0 | 24 | 6500 | 0.20 | 6200 | 0.11 | 37.0 | 370 | 22 | 130 | 1100 | 1.5 | |
