12mm 3v dc gear motor with encoder
- 100000 Piece / Pieces per Month
- HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | GM12-N20VA |
Product Description

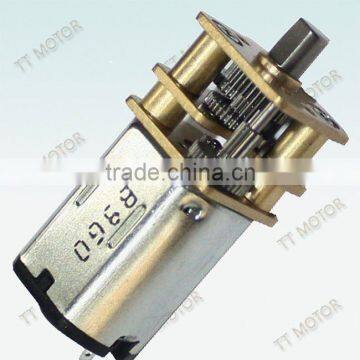

12mm gear motor, 12mm 3v dc gear motor with encoder
GM12-N20VA
1.Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector,
Coin refund devices,Currency count machine, Towel dispensers,
Automaitic doors,Peritoneal machine,Automatic TV rack,
Office equipemt ,Household appliances,Automatic
2.Voltage:3-12V
3.Speed:10-1000RPM
4.Low noise,low current no spark,can match encoder
5.Reduction Ratio:1/3,1/50,1/100,1/298,1/300,1/1000
6.size:12.0*24.0*10.0 mm,just 24.0 mm length mini motor
7.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM12-N20VA | 13110-50 | 1.5-3.0 | 2.4 | 285 | 0.075 | 200 | 0.20 | 0.01 | 0.10 | 0.34 | 0.038 | 0.39 | 1.2 |
13110-100 | 1.5-3.0 | 2.4 | 145 | 0.075 | 100 | 0.20 | 0.02 | 0.20 | 0.34 | 0.076 | 0.78 | 1.2 | |
13110-298 | 1.5-3.0 | 2.4 | 50 | 0.075 | 35 | 0.20 | 0.04 | 0.40 | 0.34 | 0.200 | 2.10 | 1.2 | |
09220-50 | 2.0-5.0 | 5.0 | 285 | 0.040 | 200 | 0.15 | 0.01 | 0.10 | 0.30 | 0.038 | 0.39 | 0.95 | |
09220-100 | 2.0-5.0 | 5.0 | 145 | 0.040 | 100 | 0.15 | 0.02 | 0.20 | 0.30 | 0.076 | 0.78 | 0.95 | |
09220-298 | 2.0-5.0 | 5.0 | 50 | 0.040 | 35 | 0.15 | 0.04 | 0.40 | 0.30 | 0.200 | 2.10 | 1.10 | |
09220-1000 | 2.0-8.0 | 6.0 | 10 | 0.020 | 8.0 | 0.055 | 0.21 | 2.10 | 0.25 | 0.680 | 6.85 | 1.12 | |
