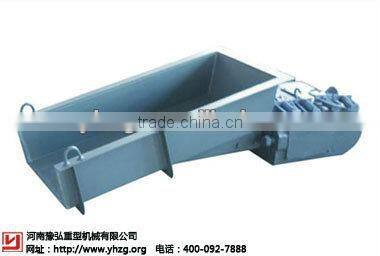

2015 YUHONG GZ Series Motor Vibrating Feeder for Ball Mill

Uses and Features

Motor Vibrating Feeder  is widely used in metallurgy, coal, electronics, machinery, chemical industry, building materials, light industry, food and other industrial and mining enterprises, in the production process, for the massive, granular and powdery materials from the storage silo or hopper quantitative continuously and evenly to the receiving device. Compared with other feeding device has the following characteristics:
(1) the use of electrical control thyristor half wave rectifier circuit. Can be stepless adjustment of the feed rate, and can be used for automatic control in the production process, production automation.
(2) the electromagnetic vibration feeder no rotating parts, no need of lubrication, simple structure, convenient maintenance.
(3) the material in micro projectile motion, groove wear small,
(4) the electromagnetic vibration feeder trough alloy steel, can be used for conveying high temperature, wear and corrosion of materials etc.

The actual capacity is greater than or less than the calculated capacity, productivity conversion according to the actual material capacity.
Particle size of less than 1mm material conveying speed decreased and water content more than 10% wet sticky materials can not be normal delivery, material thickness exceeds a certain value, will hinder the normal feeding, recommended H= (1/3~1/4) slot.
For special requirements, special specifications, special design and manufacture can I plant.

Packaging:  Standard export packing (Waterproof rust), Nude cargo and spare parts in wooden

cases (special fumigation-free wooden material).

Shipping:  Int'l Shipping, Road / railway / air / ocean transportation, or multimodal transport

 1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.

3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item

Company Information

HENAN YUHONG HEAVY MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills,drying equipment.offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.

1.Q: We need a vibrating feeder to feeding materials and can you please recommend the best type of

machine for this application?

A: Please provide the following information to help us recommend a right unit for you:

1)Material to be processed?

2)The specific gravity,moisture content of your processed materials?

3)Capacity (tons or kg or litter per hour or day)

4)Local power supply (voltage and frequency)

2.Q: Do you have MOQ (a minimum order)?

A:YES, for most of the products, we can send even 1 unit to you, very special requirement or parts

customized to be discussed. You could ask us for details.

3.Q: Do you provide free samples and how can I get them?

A: It depends on the specific item you need, for machines; usually we don't provide free samples

 as it’s big value.
