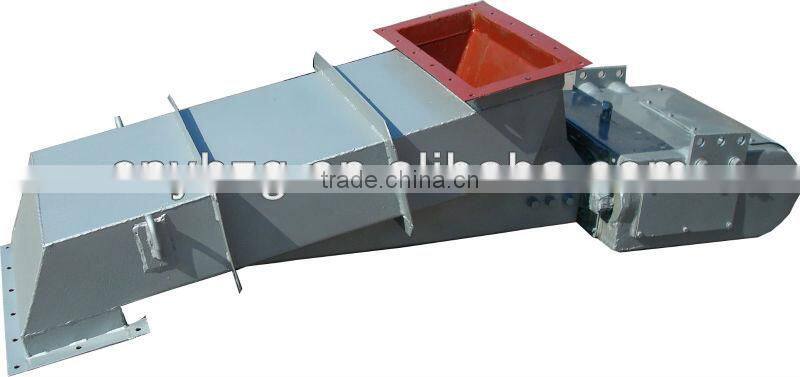

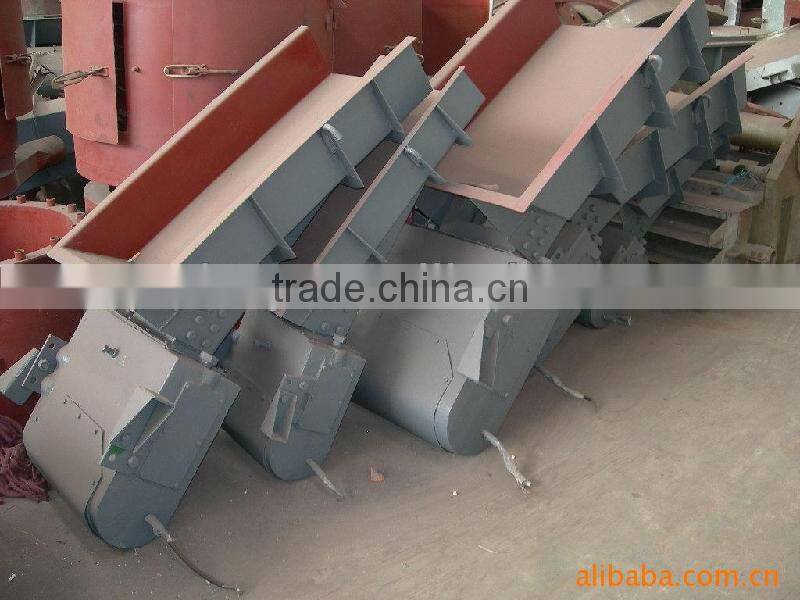

China Electromagnetic Vibrating Feeder for Mining Equipment

Specifications

 China Electromagnetic vibrating feeder Introduction:

Vibrating feeder machine is generally installed in front of the primary crusher, conveys big blocks continuously and evenly while removing the dirt and impurities by screen bars. As necessary equipment, it can effectively control the feeding capacity to match with the capacity of the whole crushing plant. It features strong construction, anti-strike, wearable, reliable in operation and long service life. They are widely used in mining, building-material and chemical industry in the crushing and screening plants.

Features:
1) Stable vibrating
2) Reliable operation, long usage life
3) Adjustable excitation force and
4) Stable and convenient control of flow
5) Vibrating motor as excitation source
a) Low noise
b) Low power consumption
6) Good adjusting performance and without material splash
7) Simple structure
8) Convenient to install and maintain
9) Light weight, small size
10) Enclosed type can prevent dust pollution (optional)

Working principle:
When the power is on, the electric current passes through the excitation coils, which creates a magnetic field. The magnetic force changes into vibrating force, which forces the feeding trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the feeding trough body, which causes the forward motion and transmission of the materials.

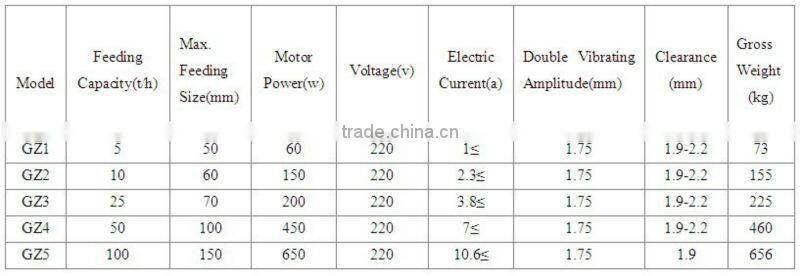

Technical Parameters:
