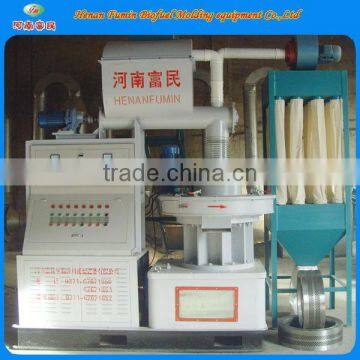

Full automtic +high quality wood sawdust pellet mill ,pellet machine made in China

Specifications

I.wood sawdust pellet mill :

1.Wood sawdust pellet mill is an automation equipment,wiith automatic grease -supply device , which can save a lot maintenance time.

2. Wheat straw pellet mill can forming with moisture less than 8%.

3.With high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.

4.Widely scope :All kinds of biomass raw material ,industrial waste It can convert biomass raw material and solid waste into energy fuel with high density.

II.Specification of wood sawdust pellet mill

III.Working principle and process detail:

 1.Material come from belt conveyor and then into the storage,screw conveyor feed material automaticllly to the pellet forming chamber

 2.In the forming chamber ,two gear and mold help to form and press pellet,Gear rotate to press pellet come out surround.

3.Automatic cutting machine arround the mold ,which can cut pellet automaticly,it can also adjust the length of pellet .

4.During the process ,the oil supply device can lubricate the gear and mold.

IV. Raw material required:

1.All kinds of biomass material,or farm waste ,such as cotton stalk,corn straw,wheat straw,sawdust,peanut shell,rice husk,animal manure.

2.Moisture of material should <15%,material size should <6-10mm

V. Pellet features

1.Pellet is new-style energy which is renewable, environmental protection,it is also clean and low cost.

2.Pellet (biomass pellet,wood pellet) is widely usedin heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal ,also being used as industial fuel.

3.High density from 1-1.6g/cm3,easy to store and transportation,Calorific value can be 3500-5500Kilocalorie.

4.Biofuel can instead of coal for biomass power generation.

VI.Detail of Spare parts:

Mold workshop

Mold

VII.Our advantage:

1.Long history in wood pellet machine and biofuel briquette machine making,has export to more than 20 countries.

2.Our product with high automation which can save labor,and it is also easy to maintenance ,save a lot of maintenance time.

3.Our machine is flat location stainless steel ring die mold and gear,which is different from Vertical location ring die machine ,which has a good performance.

VIII.wood sawdust pellet mill

1.  Crushing process:

Wood crusher which can crushed the raw material into sawdust shape ,under 6mm,which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches,nutshell,wood shavings,wood waste board,leaves,palm fiber ,etc.

2.  Dring process

Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.The dryer use hot air accompany with material and evaporated rapidly .

3.Wood pellet maker:

wood sawdust pellet mill can convert the biomass material into pellet ,the length can be customed.

4.Cooling process

You can use a cooling fan or cool it by nature about half or one hour,or cooled pellet by cooler machine.

5.Packing and bagger:

After cooling the semi-automatic quantative packing machine can pack the pellet into bag with quantative weight.

PELLET LINE FOR LARGER CAPACITY PER HOUR

This is the pellet line for larger capacity, 3 sets of pellet machine as one unit. MXKJ-9S-3 Pellet machine, its capacity is 1.2-1.5t/h, so 3 sets of MXKJ-9S-3 will be 3.6-4.5 ton/h   per hour per unit.

Bucket elevator lift the sawdust to scraper conveyor ,the scraper conveyor divide them to three pellet machine,the pellet machine  produce pellet ,then the pellet collect conveyor convey the pellet to cooler

One unit pellet line includes:

1) 3 sets of Pellet Machine

2) Bucket elevator

3) 9 meters Sub-feed Conveyor

4) Pellet Conveyor

5) Walking platform + dust cleaning device

America customer and India customer and delivery

For more detailed infromation , please contact me freely.
