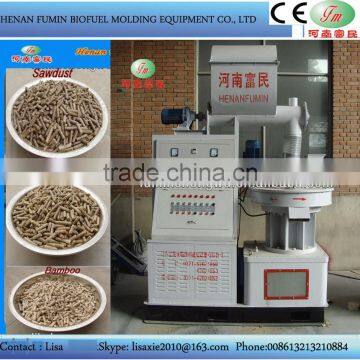

Fully automatic briquttte maker with CE , ISO9001

I.CE approved biomass briquette maker  :

1.Wood pellet making machine is an automation equipment,wiith automatic oil -supply device ,which can save a lot maintenance time.

2.Industrial biomass pellet making machines can forming with moisture less than 8%,if large it at most can be 15%,but the density will low and capacity will a little higher.

3.Wood pellet making machine with high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.

4.Widely suitability:All kinds of biomass raw material ,industrial waste It can convert biomass raw material and solid waste into energy fuel with high density.

II.Specification of biomass pellet machines

III.Working principle and process detail:

1.Material come from belt conveyor and then into the storage,screw conveyor feed material automaticllly to the pellet forming chamber

2.In the forming chamber ,two gear and mold help to form and press pellet,Gear rotate to press pellet come out surround.

3.Automatic cutting machine arround the mold ,which can cut pellet automaticly,it can also adjust the length of pellet .

4.During the process ,the oil supply device can lubricate the gear and mold.

IV.Pellet features

1.Pellet is new-style energy which is renewable, environmental protection,it is also clean and low cost.

2.Pellet (biomass briquette,biomass pellet,wood pellet) is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal ,also being used as industial fuel.

3.High density from 0.9-1.6g/cm3,easy to store and transportation,Calorific value can be 3500-5500Kilocalorie.

4.Biofuel can instead of coal for biomass power generation.

Cassava pellet

Sawdust pellet

V.Raw material required:

1.All kinds of biomass material,or farm waste ,such as cotton stalk,corn straw,wheat straw,sawdust,peanut shell,rice husk,animal manure.

2.Moisture:10%,6mm

VI.Detail of Spare parts:

Mold

VII.Our advantage:

1.Long history in wood pellet machine and biofuel briquette machine making,has export to more than 20 countries.

2.Our product with high automation which can save labor,and it is also easy to maintenance ,save a lot of maintenance time.

3.Our machine is flat location stainless steel ring die mold and gear,which is different from Vertical location ring die machine ,which has a good performance.

VIII. Industrial biomass pellet making machines

1.Crushing process:

Wood crusher which can crushed the raw material into sawdust shape ,under 6mm,which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches,nutshell,wood shavings,wood waste board,leaves,palm fiber ,etc.

2.Dring process

Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.The dryer use hot air accompany with material and evaporated rapidly .

3.Wood pellet machine:

Wood pellet machine convert the biomass material into pellet ,the length can be customed.

4.Cooling process

You can use a cooling fan or cool it by nature about half or one hour

5.Packing and bagger:

After cooling the semi-automatic quantative packing machine can pack the pellet into bag with quantative weight.

America customer visit and India customer

Industrial biomass pellet making machine is high-tech machine,welcome to have a further understood.
