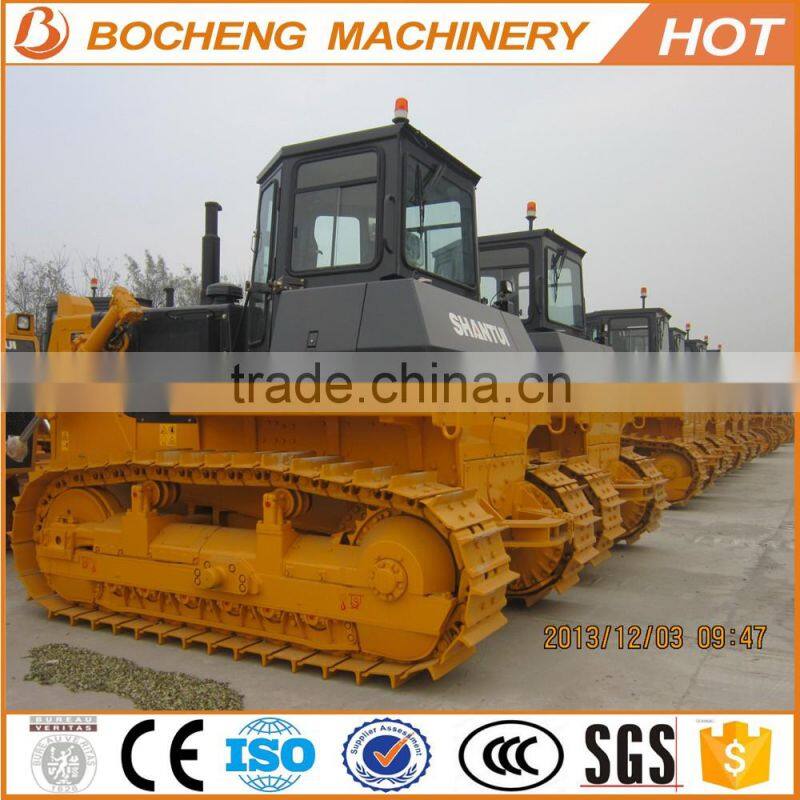

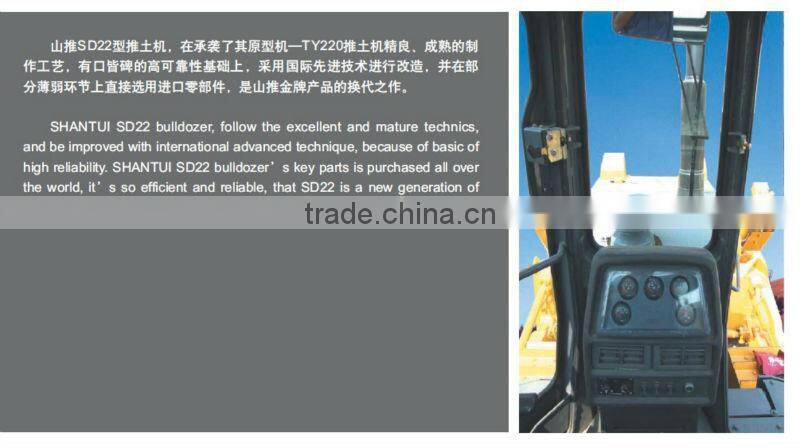

SHANTUI Bulldozer SD22 Bulldozer

Just as leading brand names have become substitutes for product names around the world, savvy Chinese often simply say ‘Shantui’ when they talk about bulldozers.

It makes sense: Shantui is the King of the Hill in China when it comes to the muscular machines that powered much of China’s phenomenal quarter century-long construction boom. For decades, Shantui has led China’s bulldozer market in most every category of market and volume share.

Today, Shantui is well on its way to becoming synonymous with ‘bulldozers’ well beyond the borders of China, delivering the mechanical muscle to construct great walls, not to mention dams, power plants, housing, factories, hospitals, buildings, offices, ports—you name it!—just about everywhere on the planet people put mechanical muscle to work to build structures or tear them down.

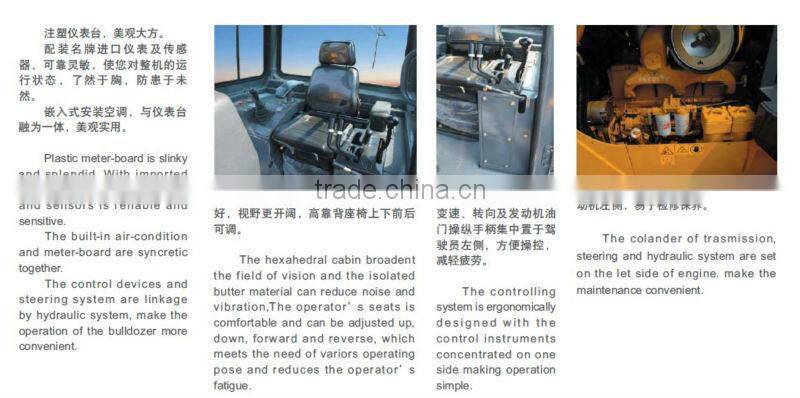

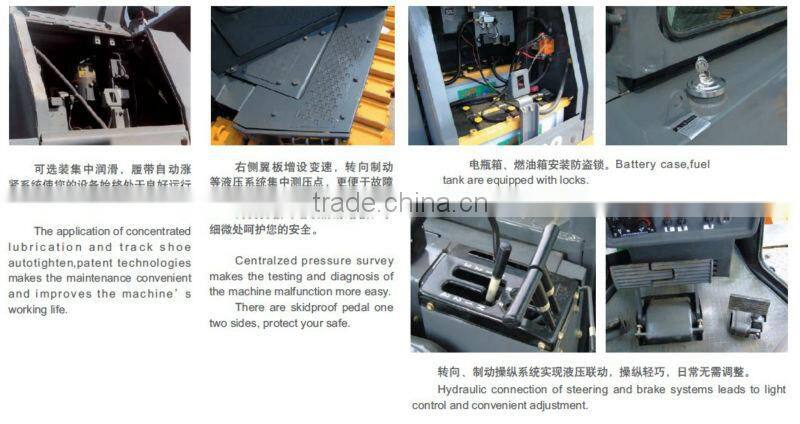

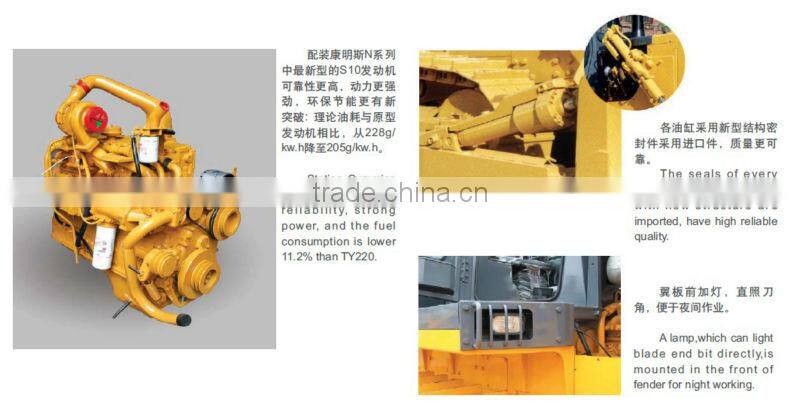

 Engine

Model and Type

 NT855-C280S10; On-line   water cooled; 4-cycle, overhead valve direct injection; turbocharged diesel

Rate revolution (rpm)

1800

Rate horsepower (kW)

162

Cylinder bore (mm) x stroke (mm)

6-139.7 x 152.4

Piston displacement (L)

14010

Min. fuel consumption (g/kw.h)

205

Max. Torque (N.m/rpm)

1030 / 1250

 Power Transmission System

Torque Converter

3-element, 1 stage, 1 phase

Transmission (Shantui)

Planetary gear type, multi-disc   clutch, hydraulically connected, forced lubrication

Main Drive

Spiral bevel gear, splash   lubrication, single-stage speed reduction

Steering clutch

Wet,  multi-disc, spring loaded hydraulically   separated, hydraulic control

Steering brake

Wet, floating, direct on-off   hydraulic inter-linking operation

Final drive

2-stage speed reduction of spur   gear, splash lubrication

 Travel Speed

Gear

1st

2nd

3rd

Forward (km/h)

0-3.6

0-6.5

0-11.2

Reverse (km/h)

0-4.3

0-7.7

0-13.2

 Undercarriage System

Type

Swing type of sprayed beam,   suspended structure of equalizer bar

Carry rollers

2 (each side)

Track rollers

6 (each side) (single flange 4,   double flange2)

Track type

Assemble, single-grouser shoe   (23 each side)

Width of track shoes (mm)

560

Pitch (mm)

216

 Hydraulic System

Max. pressure (MPa)

14

Pump type

Gear pump

Discharge (L/min)

262 (1800rpm) (at revolution of   1800rpm)

Working Cylinder (mm) x No.

Ø120 x 2 (double-acting type)

 Blade

Specification / Blade Type

Straight tilt

Angle

U-Blade

Dozer capacity (m³)

6.4

4.7

7.5

Efficiency (m³/H) (Theoretical value 40mm)

330

245

365

Blade width (mm)

3725

2365

3800

Blade height (mm)

1315

1055

1343

Max. drop below ground (mm)

540

535

540

Max. tilt adjustment (mm)

>735

>500

>755

Weight of blade (kg)

3630

3850

4196

Min. ground clearance(mm)

405

405

405

Operating weight (kg)

23450

23670

24600

Ground pressure (MPa)

0.077

0.077

0.072

Min. turning radius (m)

3.3

3.3

3.3

Gradeability (°)

30

30

30

Track guage (mm)

2000

2000

2000
