2016 New Shehwa Hydraulic Crawler Bulldozer For Sale
US$ 115,900 - 125,900
/ Set
1 Set(Min. Order)
- TianJin Port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HBXG | |
| Model Number | SG7 | Condition | New | |
| Moving Type | Crawler Bulldozer | Machine Weight | 23800kg | |
| Dimension(Long * Breadth * High) | 5677*3500*3402mm | After-sales Service Provided | Overseas service center available |
Product Description

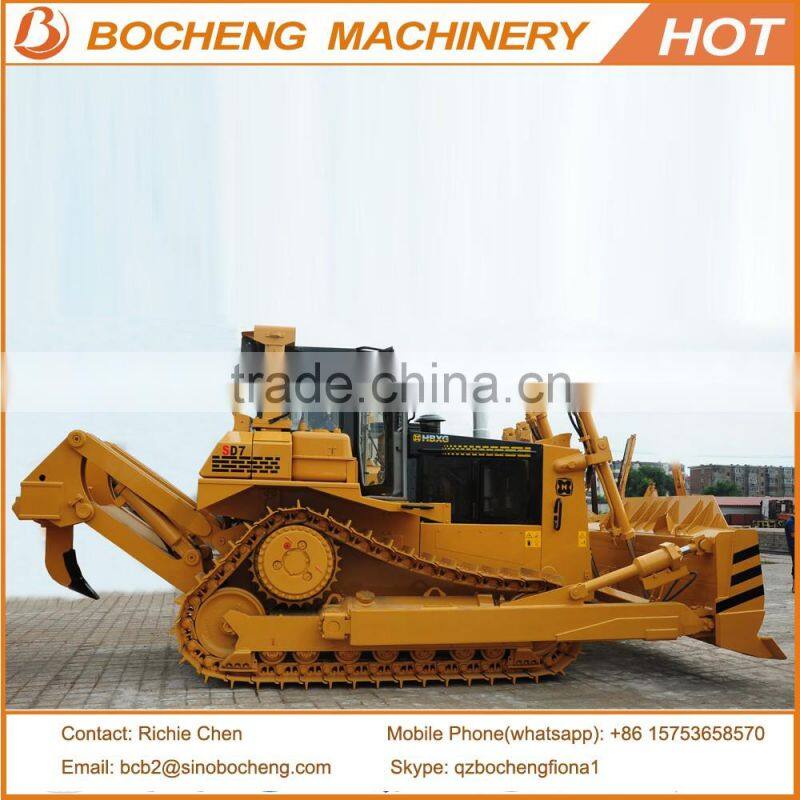

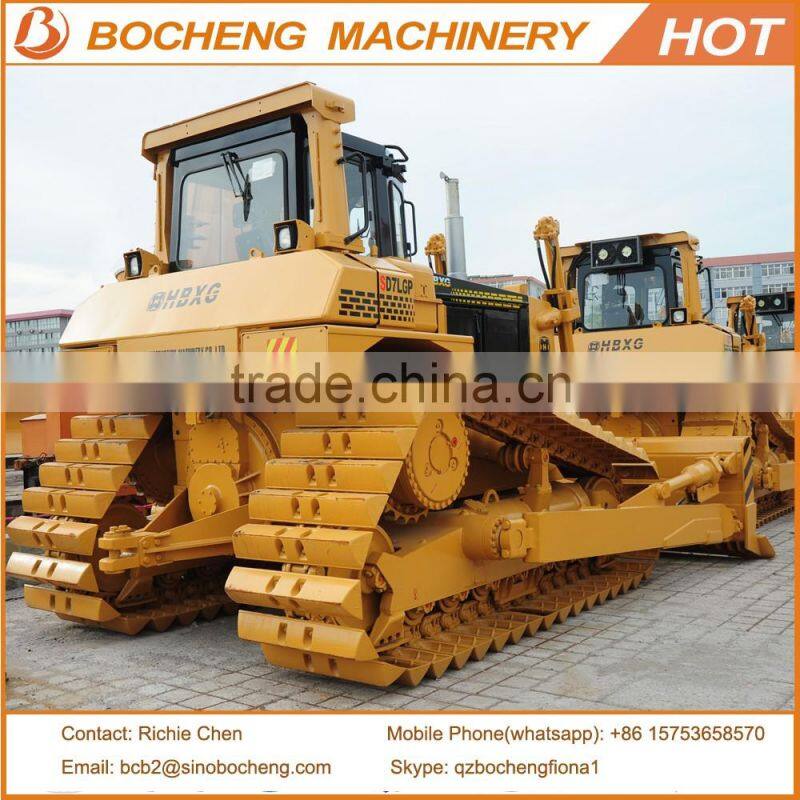

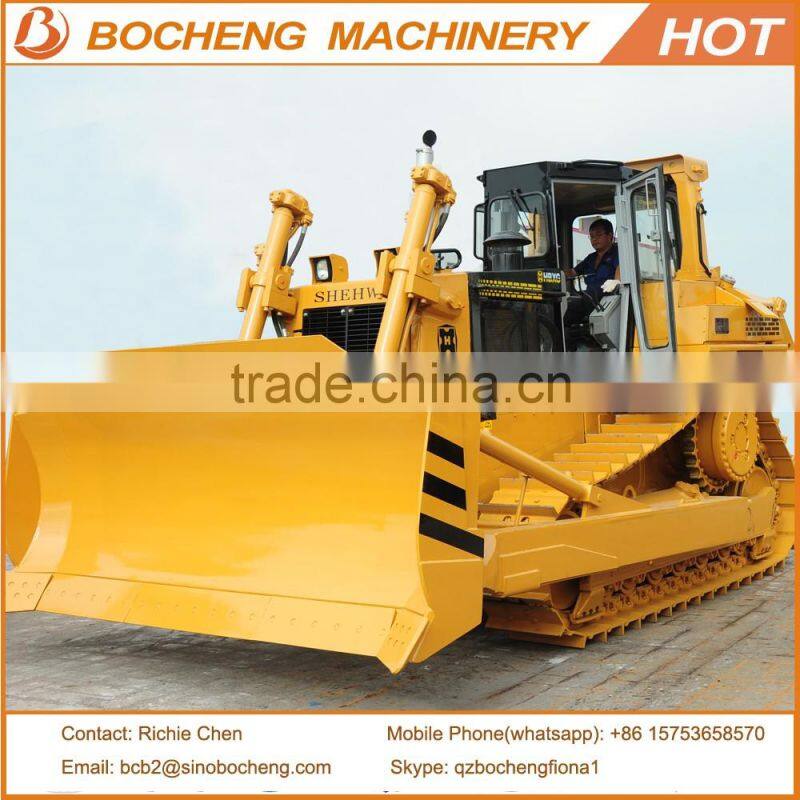

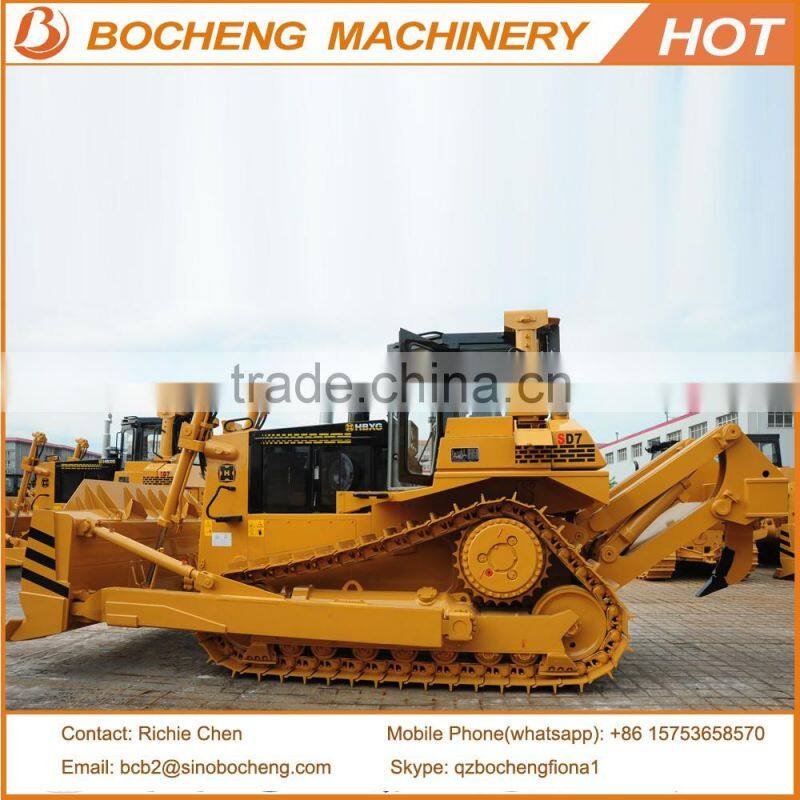

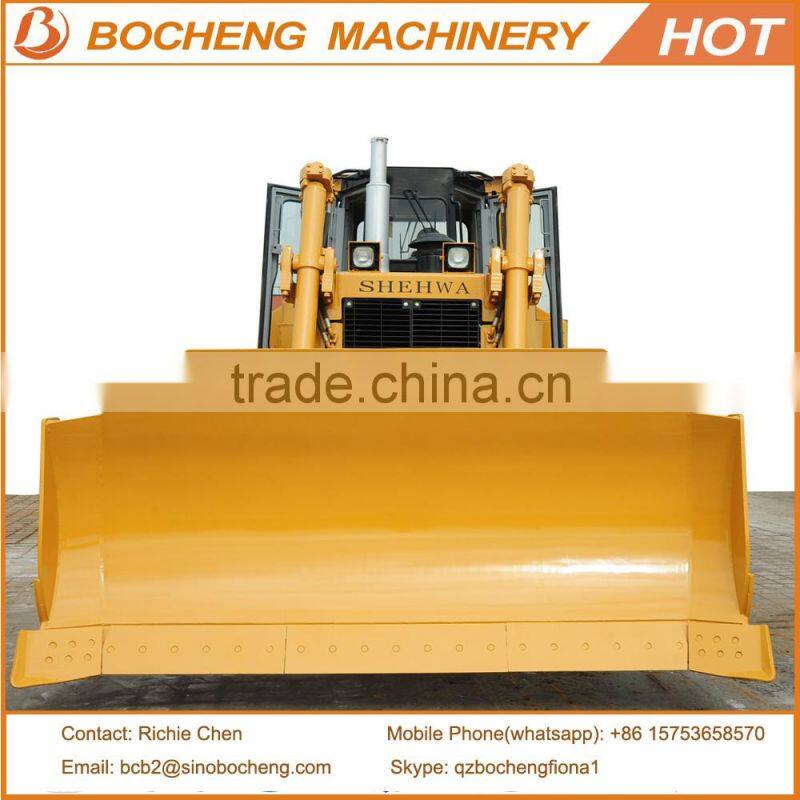

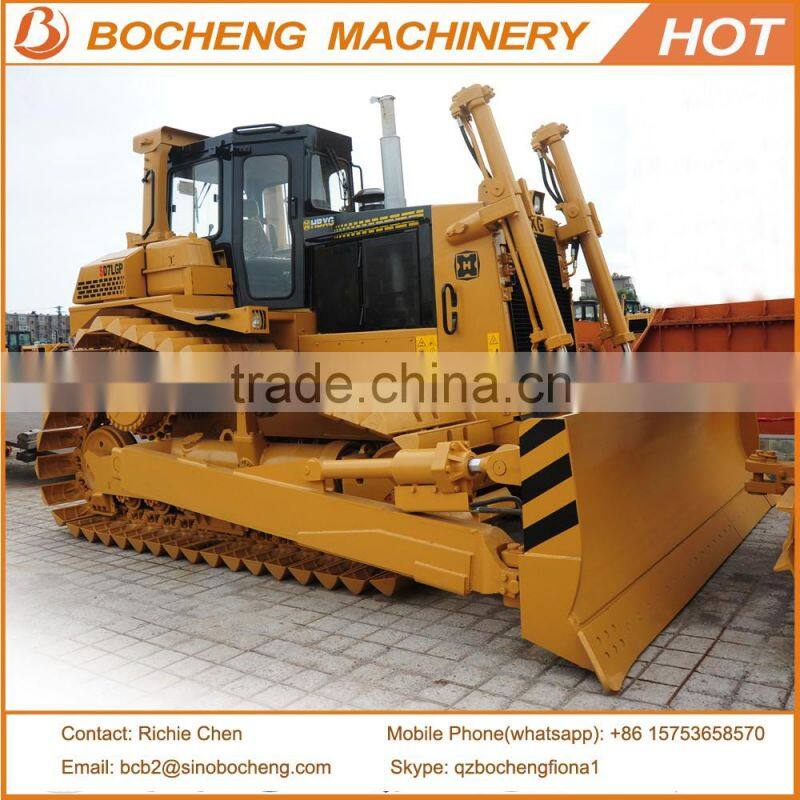

2016 New Shehwa Hydraulic Crawler Bulldozer For Sale
Product Description
1,General Specifications
| Blade | Straight and Tilting |
| Operation weight:(kg) | 23800(without ripper) |
| Ground pressure:(kpa) | 71.9 |
| Track gauge(mm) | 1980 |
| Min. ground clearance:(mm) | 404 |
| Gradient: | 30°/25° |
| Dozing capacity:(m3) | 8.4 |
| Blade width:(mm) | 3500 |
| Max. digging depth:(mm) | 498 |
| Overall dimensions:(L×W×H)(mm) | 5677×3500×3402 |
2,Undercarriage System
| Type: | The track is triangle shape,the sprocket is elevated elastic suspended. |
| Number of track rollers(each side) | 7 |
| Pitch (mm) | 216 |
| Width of shoe (mm) | 560 |
3,Gear
| 1st | 2nd | 3rd | |
| Forward (Km/h) | 0-3.9 | 0-6.5 | 0-10.9 |
| Backward (Km/h) | 0-4.8 | 0-8.2 | 0-13.2 |
4,Engine
| Engine Name: | NTA855-C280S10 |
| Rated revolution:(rpm) | 2100 |
| Flywheel power:(kw) | 169 |
| Max.torque:(N.m/rpm) | 1097/1500 |
| Rated fuel consumption:(g/kw.h) | ≤235 |
5,Implement Hydraulic System
| Max. system pressure:(Mpa) | 18.6 |
| System output:(L/min) | 194 |
| Pump type: | Gears oil pump |
6,Driving System
| Torque converter: | Torque converter is power separating hydraulic-mechanic type. |
| Transmission: | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. |
| Steering clutch: | The steering clutch is hydraulic pressed, usually separated clutch. |
| Braking clutch: | The braking clutch is pressed by spring, separated hydraulic, meshed type. |
| Final drive: | The final drive is two-stage planetary reduction gear mechanism, splash lubrication. |
Packaging & Shipping
Nude package by bulk ship or ro-ro ship.
Our Services
One year warranty, original spare parts available, technical support.
