Home > Products > Farm Tractor > 50HP JINMA Mahindra Tractor Price With 4 in 1 Front End Loader And A/C Cabin

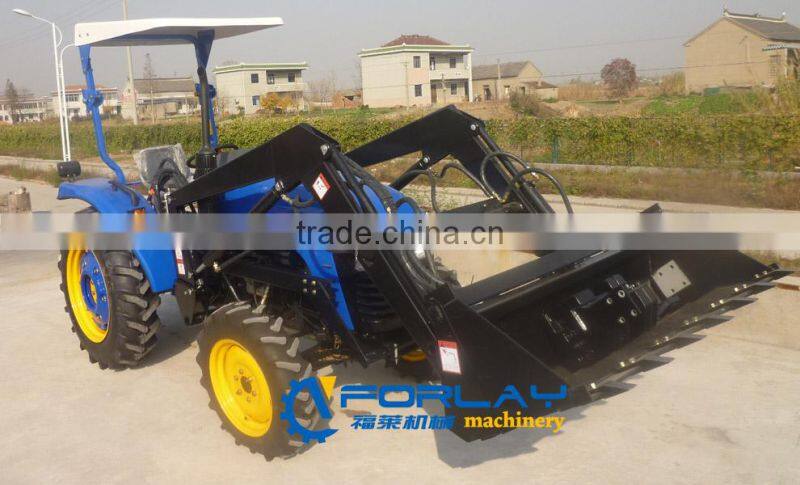

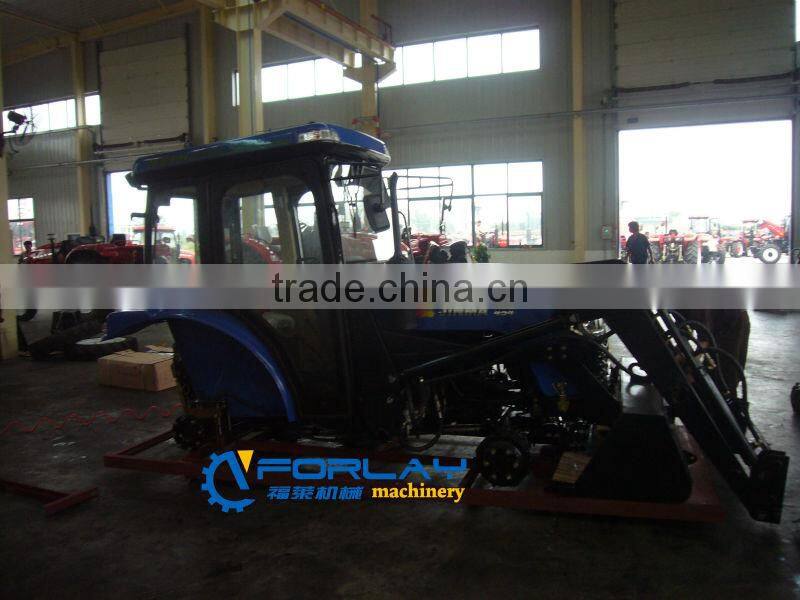

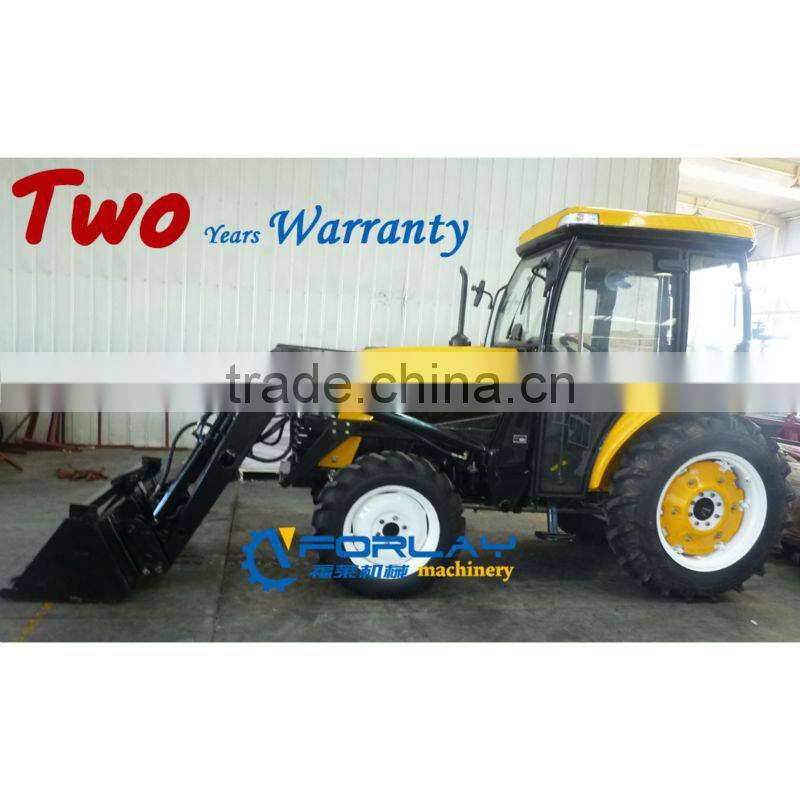

50HP JINMA Mahindra Tractor Price With 4 in 1 Front End Loader And A/C Cabin

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	33100
Certificate	CE	Brand Name	JINMA
Model Number	JM-504	Place of Origin	Jiangsu, China
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

JM50 Agricultural Tractor
50hp,4WD farm tractor
EEC/COC, EPA, OECD approved
Turf tyre available

Product Description

Jinma Two-wheel drive or four-wheel drive wheeled tractors ranging from 18HP to 85HP are series tractors which feature large tractive force, low fuel consumption, varied functions, and being easy to operate, wide applications and reliable operations. They are suitable for dry land, hilly land, vegetable farm, orchard and other farm lands or for gardening use or as a motive power. And what is more, they are the ideal means for short distance transportation. Now the Jinma tractor already got the EEC approval as well as U. S. EPA certificate and approved by OECD as well.

JINMA 504(4WD) Four Wheel Tractors Technical Parameters

Tracor Parameters	Model		JM-504
	Drive Type		4WD
	Overall Dimensions LWH(mm):		394616252220
	Wheel Track (mm)	Front	1300
		Rear	1300-1600
	Wheel Base(mm)		2073
	Ground Clearance (mm)	Under Front Axle	325
		Under Rear Axle	370
	Rated Traction Force(N)
			13000
	Construction Mass(kg)		2148
	Min.Turning Radius(m)		3.42
	Theoretical Speed (With out creeper gear(km/h)	Forward	2.243,3.293,5.355,7.031,10.070,14.793,24.049,31.579
		Reverse	3.327,4.888,7.945,10.433
	Theoretical Speed (With creeper gear(km/h)	Forward	0.336,0.493,0.802,1.053,1.508,2.214,3.600,4.725
		Reverse	0.500,0.732,1.190,1.562
Engine Specifications	Model		SL4100BT
	Type		4-Cylinder 4-stroke cycle water cooled
	Rated Power(kw/hp)		36.8/50
	Rated Speed (rpm)		2300
	Bore*Stroke(mm)		100*110
	Total Displacement(L)		3.456
Drive System	Clutch		Single-function dry constant meshing
	Gear Box		4*(2+1)Sleeve gear
	Main Drive		One Pair of Spiral Bevel Gearing
	Differential		Bevel gear
	Differential Lock		Sliding pin,foot operated
	Final Displacement(L)		Planeatry reduction gear
Travelling Mechanism	Tyre	Front	8.3-20
		Rear	12.4-28
	Steering Gear		Hydraulic steering
	Brake		Oil immerszd multiplate disc
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Pioint (N)	8300
		3-Point Suspension	Category:I
	P.T.O Shaft	Rotating Speed (rpm)	540/1000 Or 540/1000
		Spline Size	6-35Rectangular Spline
OPTIONS			SAFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB
