Home > Products > Farm Tractor > JINMA-354 Mini Garden Tractors 35HP Tractor With 4 in 1 Front End Loader

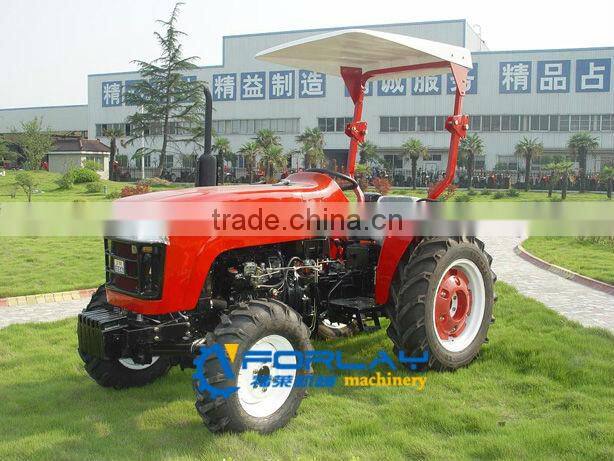

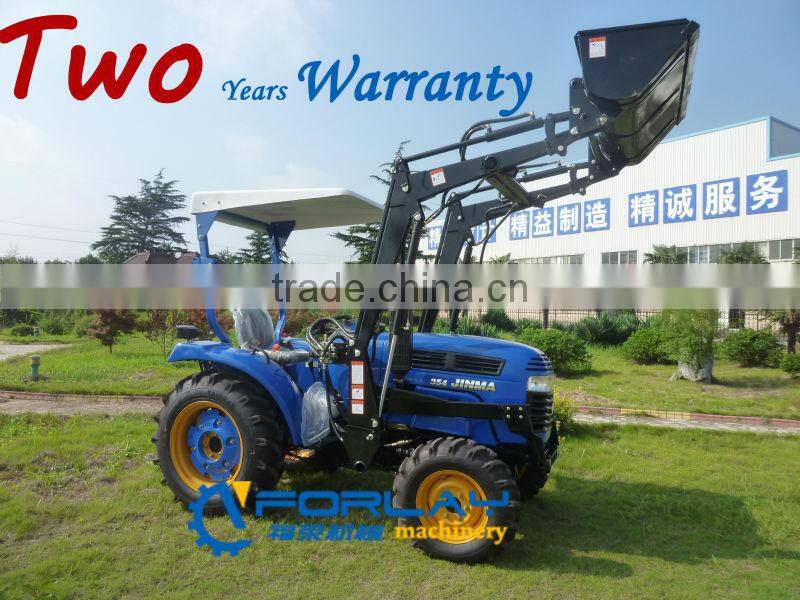

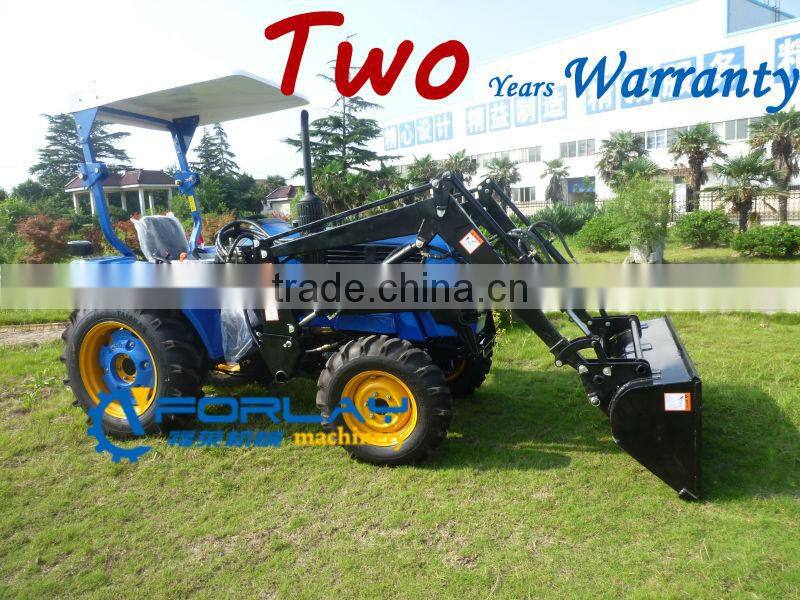

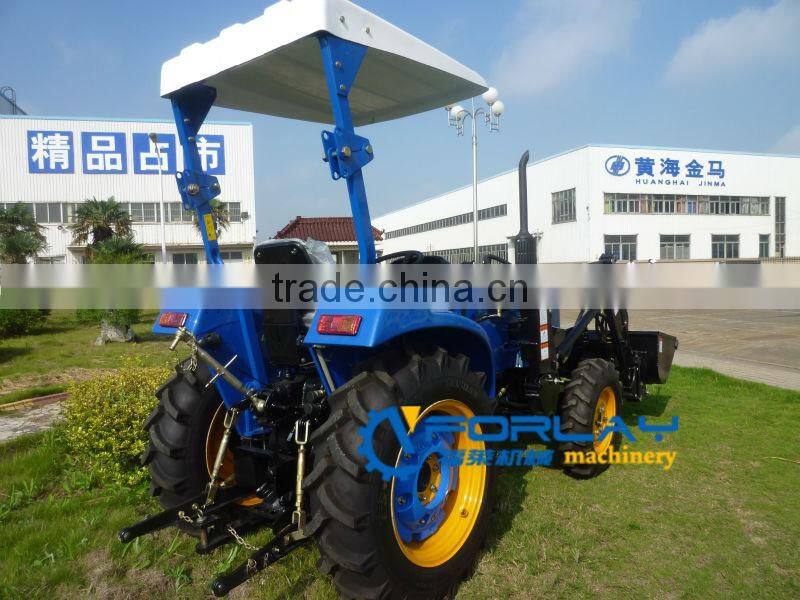

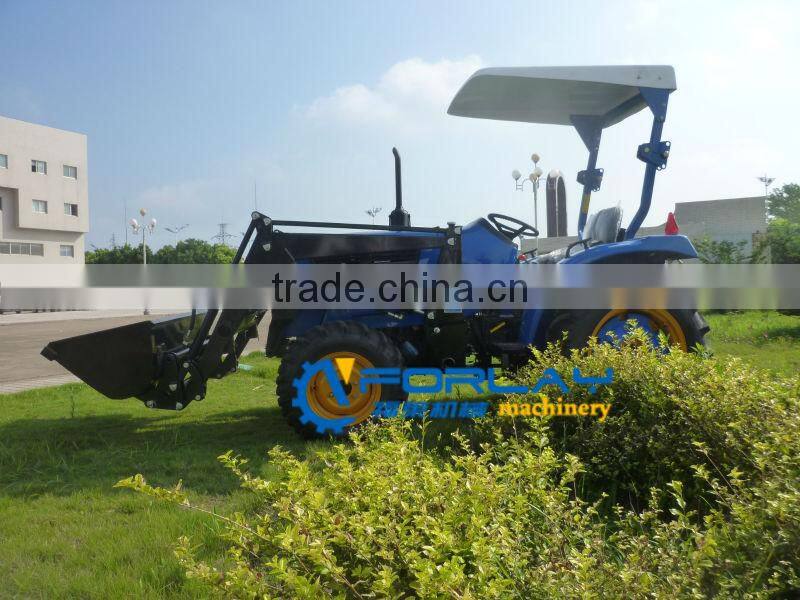

JINMA-354 Mini Garden Tractors 35HP Tractor With 4 in 1 Front End Loader

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	25700
Certificate	CE	Brand Name	JINMA
Model Number	JM-354	Place of Origin	Jiangsu, China
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

JM354 Small Agricultural Tractor
35hp,4WD farm tractor
EEC/COC, EPA, OECD approved
Turf tyre available

Product Description

Jinma Two-wheel drive or four-wheel drive wheeled tractors ranging from 18HP to 85HP are series tractors which feature large tractive force, low fuel consumption, varied functions, and being easy to operate, wide applications and reliable operations. They are suitable for dry land, hilly land, vegetable farm, orchard and other farm lands or for gardening use or as a motive power. And what is more, they are the ideal means for short distance transportation. Now the Jinma tractor already got the EEC approval as well as U. S. EPA certificate and approved by OECD as well.

JINMA 354 Four Wheel Tractors Technical Parameters

Tracor Parameters	Model		JM-354
	Drive Type		4WD
	Overall Dimensions LWH(mm):		3357x1435x1985
	WheelTrack(mm)	Front	1200
		Rear	1150-1450
	Wheel Base(mm)		1833.5
	Ground Clearance (mm)		292
	Rated Traction Force(N)		8800
	Construction Mass(kg)		1800
	Min.Turning Radius(m)		4.2
	Theoretical Speed (With out creeper gear(km/h)	Forward	2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867
		Reverse	2.861,13.2
Engine Specifications	Model		TY3100/4L22T
	Type		3/4-Cylinder,Vertical,Water-Cooed,4 Stroke Cycle
	Rated Power(kw/hp)		25.7/35
	Rated Speed (rpm)		2300/2350
	Bore*Stroke(mm)		100105/8595
	Total Displacement(L)		2.47/2.156
Drive System	Clutch		Dual stage
	Gear Box		(4+1)*2
	Main Drive		One Pair of Spiral Bevel Gearing
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmissions		Spur Gear,External,Gearing
Travelling Mechanism	Tyre	Front	7.5-16
		Rear	11.2-24
	Steering Gear		Power Steering
	Brake		Disc type
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Pioint (N)	5800
		3-Point Suspension	Category:I
	P.T.O Shaft	Speed (rpm)	540/720 or 540/1000
		Spline Size	6-35Rectangular Spline
OPTIONS			ROLL BAR,CANOPY,CAB
