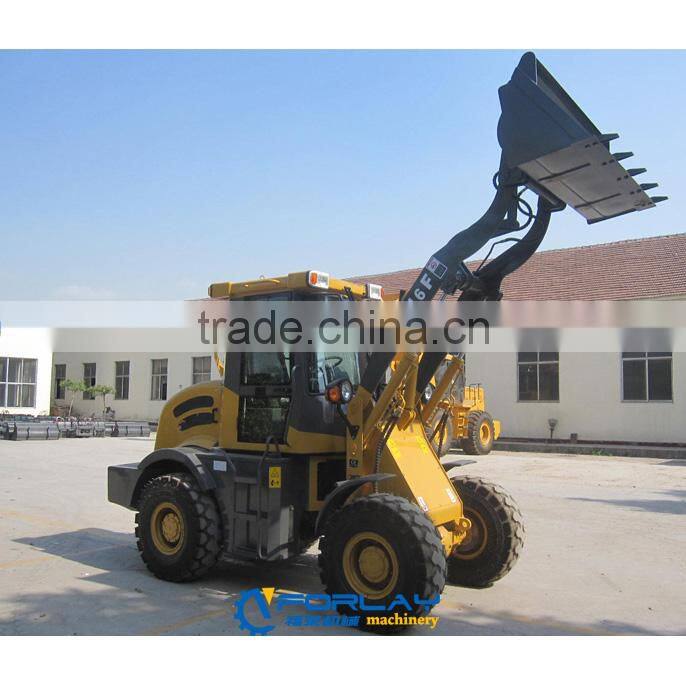

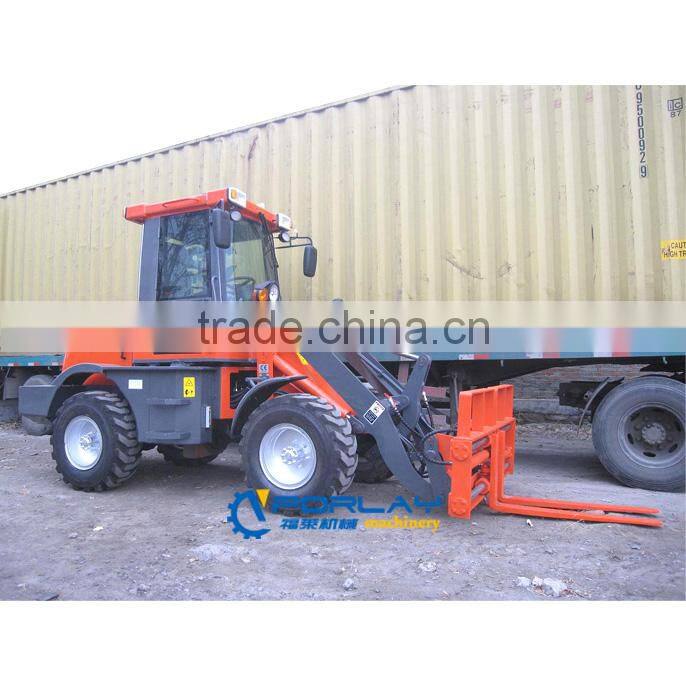

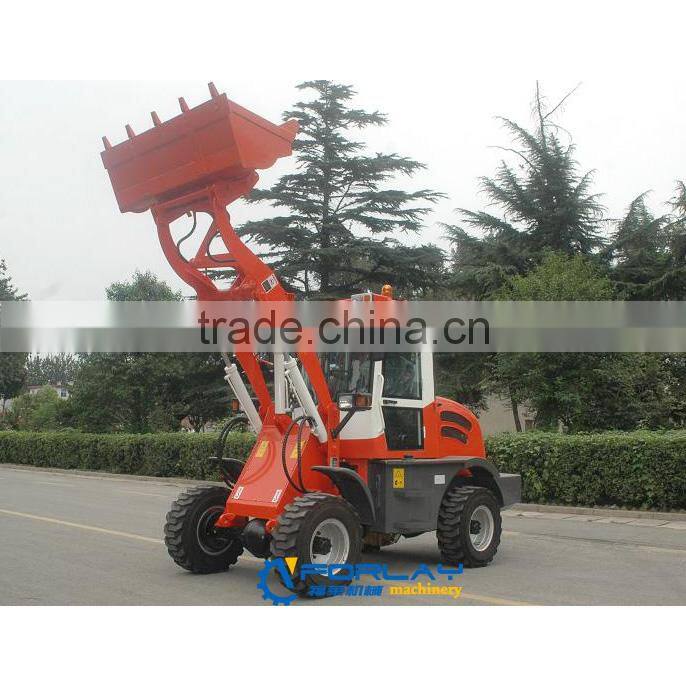

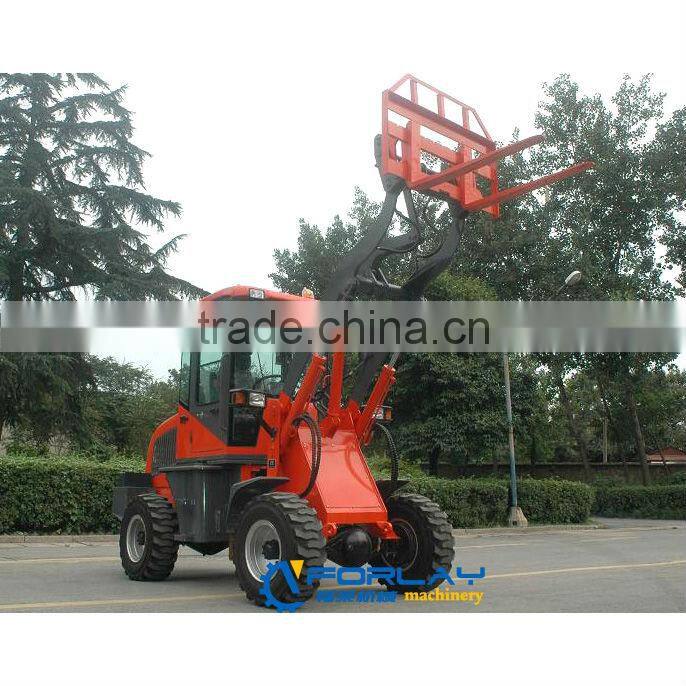

ZL10A Model Mini Wheel Loader With CE Certificate for Sale

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	Forlay
Model Number	ZL-10	Place of Origin	Jiangsu, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	475015002530	Rated Load	1000KGS
Certification	CE	Warranty	2 Years
After-sales Service Provided	Overseas service center available

*Rated Loading weight: 1000kg
*Rated Bucket Capacity: 0.5m3
*Operating weight: 2700KG
*Min. Turning Radius: 4700mm

THE TECHNICAL PARAMETERS OF ZL10A CE CERTIFICATE MINI WHEEL LOADER
Bucket Capacity (m³)		0.4m³	Operating Weight (kg)		2850kg
Bucket width(mm)		1400	Brake mode		Four-wheel hydraulic spead-shoed brake
Rated Load (kg)		1000kg	Driving mode		Four-wheel drive
Max. Breakout Force (KN)		32	Overall Dimensions (mm)		L:4730xW:1600xH:2530
Forward Speed 1^st (km/h)		0-12	Full Bucket Lifting Time (s)		4s
Forward Speed 2^nd (km/h)		0-24	Total Hydraulic Cycle Time (s)		8s
Reverse Speed (km/h)		0-24	Tread Width (mm)		220
Max. Dumping Height (mm)		2350	Wheel Base (mm)		1985
Max. Dumping Reach (mm)		850	Min. Clearance Over Ground (mm)		250
Min. Turning Radius (mm)		4200	MAX.tilt angel(°)		30
Diesel Engine	Brand	Changchai 385 engine	Steering System	Working Pressure (MPa)	10MPa
	Type	In-line arrangement,water cooled,three-cycle diesel engine		Max. Steering Angle (°)	30
	Rated Output (kw)	20kw	Working Hydraulic System	Pressure Of Tire (MPa)	2.5-3.5
	Rated Speed (rpm)	2200rpm		Working Pump Type	Gear pump
	Engine starting mode	Electric		Working Pressure (MPa)	16MPa
Transmission	Type	Fixed-spindle Power shift	Transaxle & Tire	Rear Axle Oscillation	Center oscillation
	Rated Input Speed (rpm)	2200		Oscillating Angle Of Rear Axle (°)	13

Optional for this Vehicle,
