HY Linear Vibratory Separator for Paper-making Industry
- any port in china
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Linear | |
| Application | Other, screening machine | Place of Origin | Henan, China | |
| Brand Name | HENG SHUN | Model Number | HY-1020 | |
| Voltage | as your local require | Certification | ISO CE BV | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Welcome to our website!
What can I do for you ?
- Improve your prouct quality
- Increase you product productivity
- Operator friendly
- Reduce your costs
Let us know more about mining liner vibrating sieve as follows:
Features
1.Simple structure & operation
2. Large processing capacity ,screen any powder and particle.
3.Closed structure without dust scattering,can be up to 200 mesh..
4.It can be single or multi-layer arrangement.
5.low energy consumption and easy maintenance.
6.Automatic discharging,more suitable for the assembly line homework.
Usage and application
This Linear vibration shaker is used for screening and classifying materials like grain and powder in the industry of plastic, Abrasive materials, medicine, chemistry, chemical industry, building materials, food, chemical fertilizers, coal and so on.
Teachnical parameters
Model | HY-520 | HY-525 | HY-1020 | HY-1025 | HY-1030 |
Appearance Dimension | 500×2000 | 500×2500 | 1000×2000 | 1000×2500 | 1000×3000 |
Material Granularity | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 |
Angle | 1°-7° | 1°-7° | 1°-7° | 1°-7° | 1°-7° |
Amplitude | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 |
Layer | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
Power | 2× (0.37-0.75) | 2×(0.37-0.75) | 2× (0.55-1.1) | 2× (0.55-1.1) | 2× (0.55-1.1) |

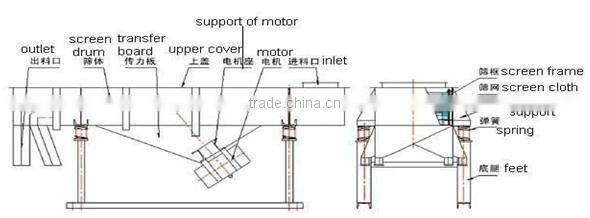

Structure
Pictures
We can design our machine with special specifications according to the technical information such as technical data and size of the equipment provided by customers...
