China Powder and Particle Inclined Conveyor for Mining

China powder and particle inclined conveyor for mining

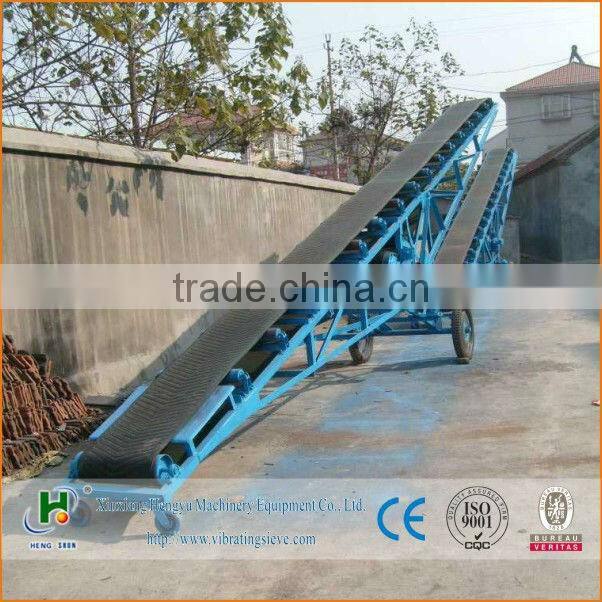

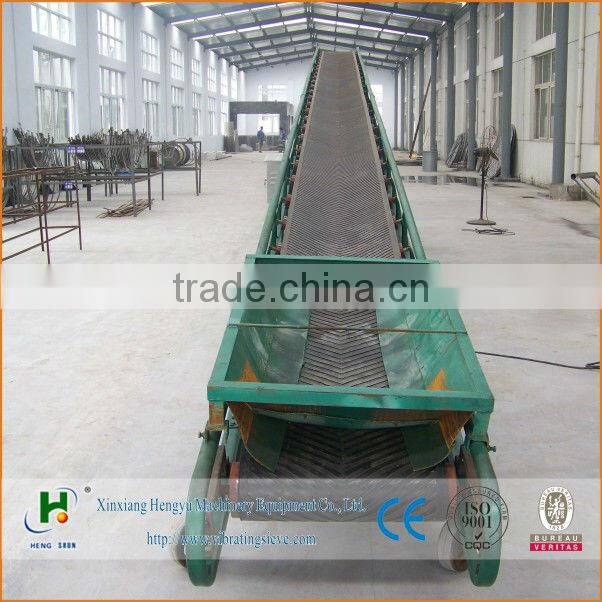

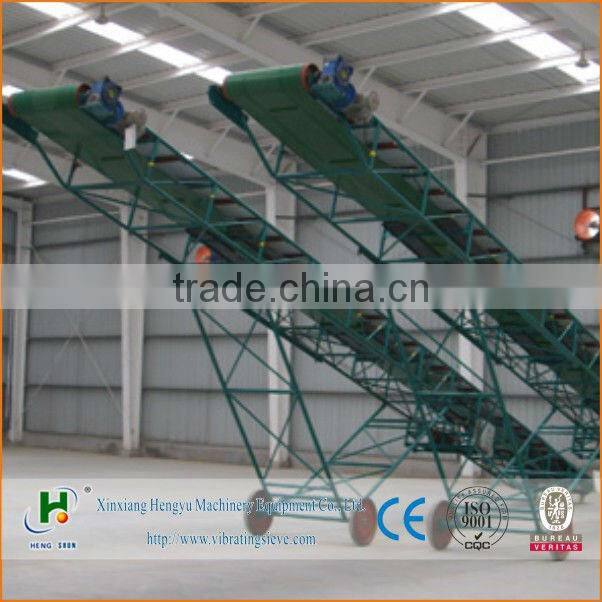

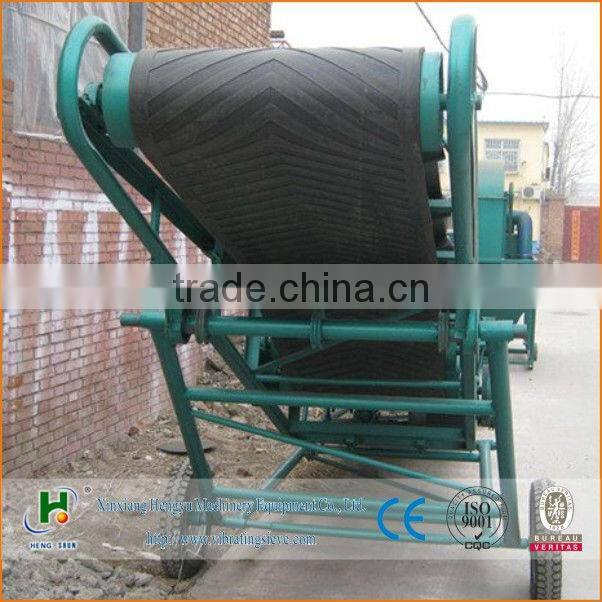

The pictures show of inclined conveyor for mining

The introduction of inclined conveyor for mining

DY type mobile belt conveyor is a kind of the most commonly conveying equipment. There are various of specification, and wide range of application especially suitable for delivering some scattered materials and irregular goods.
The materials of conveyor belt are usual rubber, plastics, PVC, PU and other materials. The frame materials are carbon steel, stainless steel, aluminum. The driving mode is gear motor or electric roller. Through collocating constant speed operating system or adjustable speed operating system, the conveyor can transmit not only bulk materials but also packed material and bags. In addition, the machine can delivery food, medication, chemical by adopting special belt for these industries.
Driving mode : gear motor driving, electric roller driving.
The way of adjusting speed: frequency conversion, stepless variable speed.

The principle of  inclined conveyor for mining

Belt conveyor is a common means of transport used in mining enterprises. It uses the belt conveyance to draw and support components and transport materials by way of the moving belt. It utilizes the inner friction and side pressure of loose material to increases the internal pressure from the pulling force in its moving direction produced by the rolling chamber in the adhesive chamber, thus increasing the internal friction. When inclination falls within certain scope, the inward friction force can ensure the stability between layers and create continuous movement. When the internal friction force between the layers is larger than the external force of the adhesive, the roller beneath the adhesive will move along with the material. When the ratio of internal force and external force meets a condition, the material flow is stable.

The technical parameters

The features of  inclined conveyor for mining

1. long life ( reach 10 years)
2. light weight and small volume (reduce 50%)
pact construction and small floor space (reduce above 50%)
4. High precision, high loading capacity with hard mask gear(2 to 3 times more than soft mask gear)
5. Able to connect with others portable belt conveyor to extend the length of transporting distance

6. Able to adjust the degree of slope in order to achieve preferable height of unloading point via

    adjusting the lifting frame.

The applications of  inclined conveyor for mining

1.Rubber belt conveyer is widely used to transport granular materials or packaged products in many industries, such as agriculture, mining, metallurgical, coal and construction etc.
2. It is the ideal short distance transportation equipment in dock, station, coal yard,
grain depot, boiler, sand yard, container for goods loading and unloading.
3. According to different requirements, it can be used in single, multiple or combined with other

equipment to form horizontal or incline transportation system to

The service of inclined conveyor for mining

How to choose belt conveyor suitable for you:

1. What’s capacity? Such as 5t/h,10t/h,20t/h etc.
2. How long you need conveying distance? Such as 5m,20m,50m,100m etc.
3. What’s material you need conveying? Such as coal, cement, stone, grain etc.
4. What’s max inclined angle? Such as 5°,10°,15°25°etc.
Tell me those data, we can help you choose the belt conveyor for you

If you are interested in inclined conveyor for mining, pls email or call

Tel:+86-373-3807161   Fax:+86-373-3807161 Skype:peterdeng2005

Our team is ready for your needs, please contact
