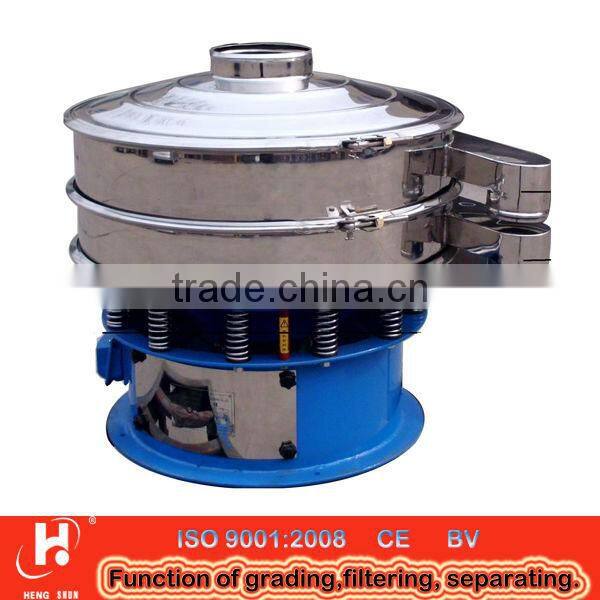

HY-1000 Single Layer Mining Sifter
- Shanghai port
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Circular, circular | |
| Application | Other, screening machine | Place of Origin | Henan, China | |
| Brand Name | HENG SHUN | Model Number | HY-1000-1S | |
| Voltage | 220V,380V,415V or as your request. | Power(W) | 0.75kw-1.5kw | |
| Dimension(L*W*H) | 1160x1160x810 mm | Weight | 210 kg | |
| Certification | BV & CE certificate & ISO9001:2008 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
More details for Vibratory Sifter Machine
It is a good helper For Particle, Powder and Liquid.
What can we do for you?
1. Improves your product quality
2. Increases your productivity
3. Reduces your costs
4. Operator friendly
More Features
A. Mature technology, stable structure, high performance at a good price.
B. Stainless steel 304 sieves with long service life.
C. The thickness of our plate is up to the international standard
D. Quickly change the screen in less than 5 minutes.
E. Three functions of our machine, such as grading particles into different levels, remove the impurity from powder, separate solid from liquid.
F. Sort material into muti-levels at one operation.
G. IP55 protection level motor and higher or lubrication free motor as request.
Technical Parameters
Model |
Diameter | Screen surface |
Screen opening |
Power |
Deck | |
Diameter | Area | |||||
(mm) | (mm) | (m2) | (kw) | |||
HY-400 | 400 | 360 | 0.1017 |
5-500mesh | 0.18 | 1-4 |
HY-600 | 600 | 560 | 0.2461 | 0.25-0.55 | 1-4 | |
HY-800 | 800 | 760 | 0.4534 | 0.55-0.75 | 1-4 | |
HY-1000 | 1000 | 930 | 0.6789 | 0.75-1.5 | 1-4 | |
HY-1200 | 1200 | 1130 | 1.0023 | 1.10-1.75 | 1-4 | |
HY-1500 | 1500 | 1430 | 1.6052 | 1.50-2.20 | 1-4 | |
HY-1800 | 1800 | 1730 | 2.3494 | 2.20-3.0 | 1-4 | |
You can choose the models with two ways:
Quality assurance
Quality assurance is the process of verifying or determining whether products or services meet or exceed customer expectations. We use the following methods to ensure the quality of our products:
A. Experienced staff
B. Quality Control Department
C. Third-party supervision
Our products passed the ISO9001:2008 and CE certificate
Welcome to our website, we are happy to solve the screening problem together with you!
