Home > Products > Vibrating Sieve for Powder Metallurgy Industry > Three Decks With Carbon Steel Sieve Equipment for Soil Screening

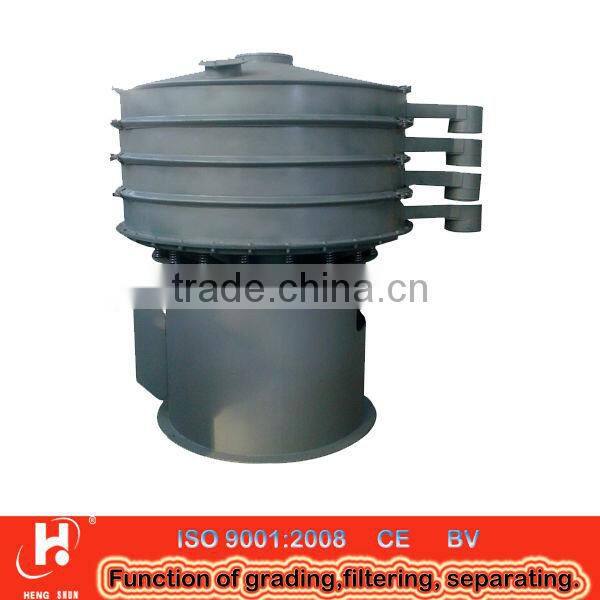

Three Decks With Carbon Steel Sieve Equipment for Soil Screening
- Shanghai port
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Other, screening & classifier machine, circular | |
| Product Type | Other, granule, powder and liquid | Place of Origin | Henan, China | |
| Brand Name | HENG SHUN | Model Number | HY-600-3S | |
| Voltage | 220V,380V415V or as your request | Power(W) | 0.55kw-0.75kw | |
| Weight | 150 kg | Dimension(L*W*H) | 800x800x1030 mm | |
| Certification | BV, CE & ISO9001:2008 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Soil Sieve Equipment's overview
It is a good helper For Particle, Powder and Liquid.
What can we do for you?
1. Improves your product quality
2. Increases your productivity
3. Reduces your costs
4. Operator friendly
More Features
A. Mature technology, stable structure, high performance at a good price.
B. Stainless steel 304 sieves with long service life.
C. The thickness of our plate is up to the international standard
D. Quickly change the screen in less than 5 minutes.
E. Three functions of our machine, such as grading particles into different levels, remove the impurity from powder, separate solid from liquid.
F. Sort material into muti-levels at one operation.
G. IP55 protection level motor and higher or lubrication free motor as request.
Technical Parameters
Model |
Diameter | Screen surface |
Screen opening |
Power |
Deck | |
Diameter | Area | |||||
(mm) | (mm) | (m2) | (kw) | |||
HY-400 | 400 | 360 | 0.1017 |
5-500mesh | 0.18 | 1-4 |
HY-600 | 600 | 560 | 0.2461 | 0.25-0.55 | 1-4 | |
HY-800 | 800 | 760 | 0.4534 | 0.55-0.75 | 1-4 | |
HY-1000 | 1000 | 930 | 0.6789 | 0.75-1.5 | 1-4 | |
HY-1200 | 1200 | 1130 | 1.0023 | 1.10-1.75 | 1-4 | |
HY-1500 | 1500 | 1430 | 1.6052 | 1.50-2.20 | 1-4 | |
HY-1800 | 1800 | 1730 | 2.3494 | 2.20-3.0 | 1-4 | |

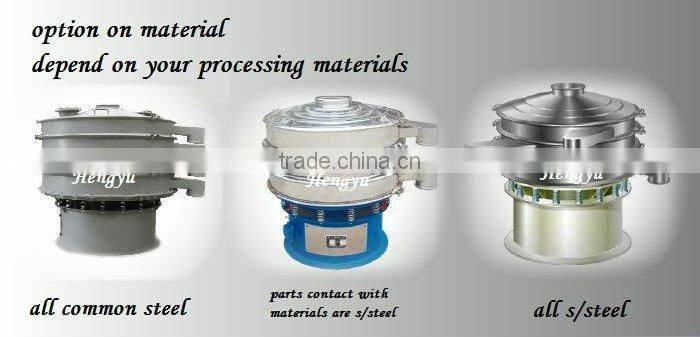

Two ways to let you know which models of our machine is suitable for you?
First, according to the production capacity per hour you demand, different decks of themachine can be offered,
Second, according to the characteristics of your processing material, different material of the machine can be offered,
Choose us, the good sieving result promised for you, contact now!
