Home > Products > insulating sleeving > HEAT-TREATMENT FIBERGLASS SLEEVING (JB/T 7091-1993 eqv IEC 60684-3-300)
HEAT-TREATMENT FIBERGLASS SLEEVING (JB/T 7091-1993 eqv IEC 60684-3-300)
- 0 per Month
- T/T
You May Like
Product Details
| Type | Insulation Sleeving | Material | Fiberglass |
Product Description

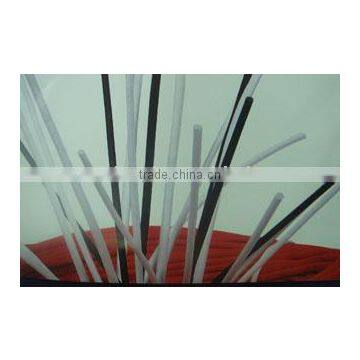

Heat-treatment sleeving is the non-alkali fiberglass braided sleeving with wax refined out and weaves set then impregnated with silicone. it possesses the characteristic of high tensile strength and Heat-resistance. it can be used as an excellent insulating material for the wiring of electrical machinery and appliances and domestic electrical appliances.
Appearance:
the sleeving is round and smooth with a white surface.
Length:
usually as 1000+20/-10mm ,continuous length may be negotiated.
properties
Properties | Unit | Requirements |
Hot weightlessness | % | ≤0.50 |
Tensile strength | Mpa | ≥90 |
Cutting feature | - | When the sleeving is cut ,the crosscut will not get loose ,but remain smooth . |
Heat resistance | - | The sleeving will not harden and give off any smoke at the temperature of 500±10 in a stone. |
Inside diameter and wall thickness: mm
Nominal | tolerance | Wall thickness |
1.0;1.5;2.0;2.5;3.0;3.5;4.0 | +0.30 -0.20 | ≥0.25 |
5.0;6.0;7.0;8.0;9.0;10.0 | +0.50 -0.30 | ≥0.30 |
12.0;14.0;16.0;18.0;20.0 | +0.80 -0.50 | ≥0.45 |
