Home > Products > insulating sleeving > polyurethane fiberglass sleeving

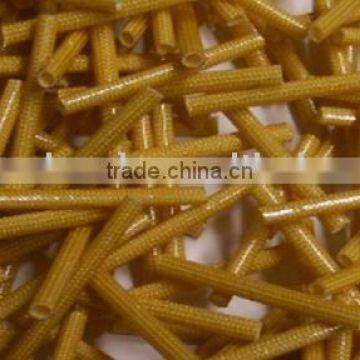

polyurethane fiberglass sleeving
- china port
- T/T D/P D/A
You May Like
Product Details
| Brand Name | ENC | Model Number | PU | |
| Type | Insulation Sleeving | Material | Fiberglass | |
| Application | High Voltage |
Product Description
polyurethane sleeving series is a glassfiber sleeving coated with a polyurethance resin.After a heat treatment the resin changes its mechanical and thermal characteristics: the result of this treatment is a final product that belongs to F class (155) .Main characteristics are : good wall resistance ,excellent electrical properties and good elasticity Widely used as electrical insulation for connections in the electrical motors field.
Property Requirements
Property | Requirements | ||
Resistance to soldering hear | Pass (only for sleeving having nominal bore dia, up to and including 5mm) | ||
Bending after heating | No cracking or detachment of the coating shall be visible and the original colour shall be clearly recognizable after 48±1hr, at 180±3°C. | ||
Thermal endurance, temperature index at 20000 hours | 155°C | ||
Breakdown voltage, kv, min Straight mandrel with 25mm electrode Room temp
| Type I | Type II | Type III |
4.0 | 2.5 | 1.5 | |
