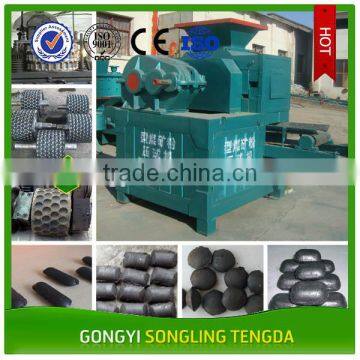

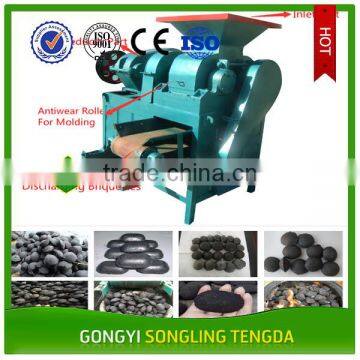

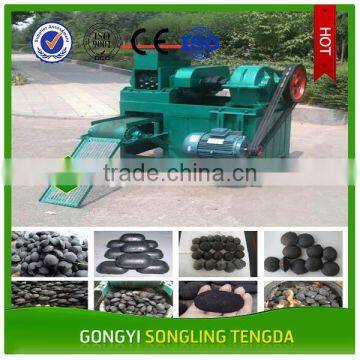

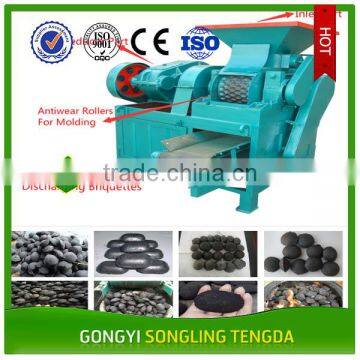

Low Cost Double Roller Coal Ball Press Machine Bbq Charcoal Ball Briquette Making Machine

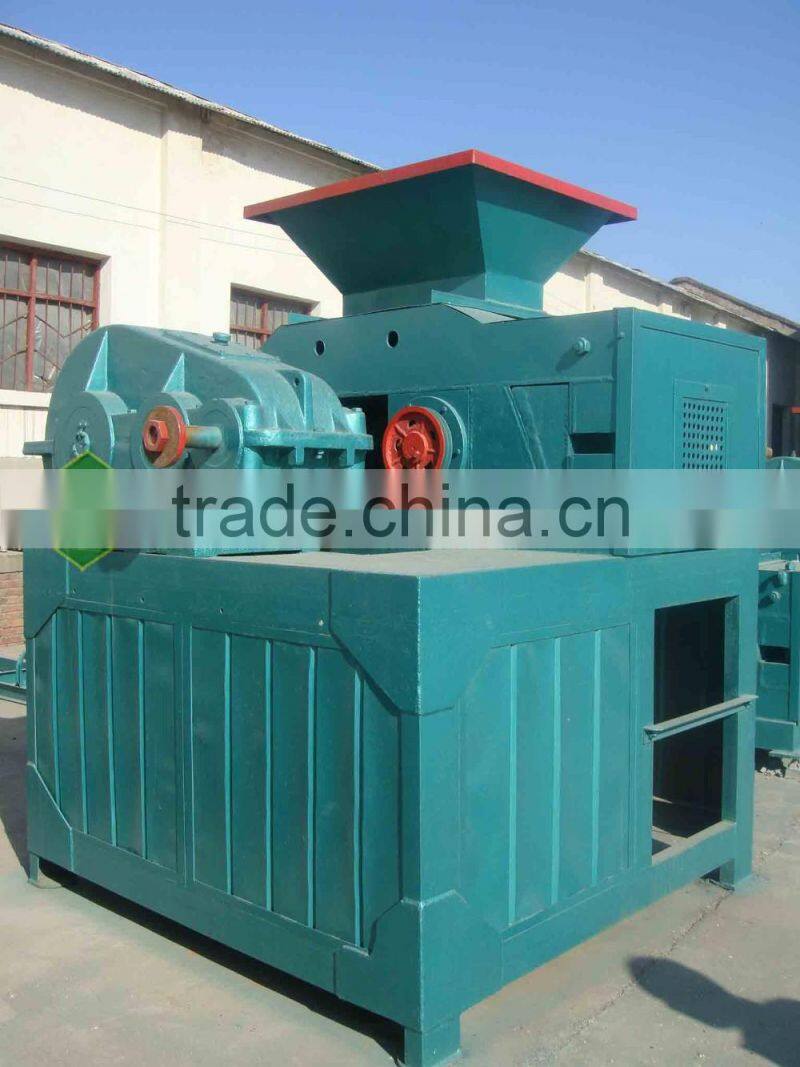

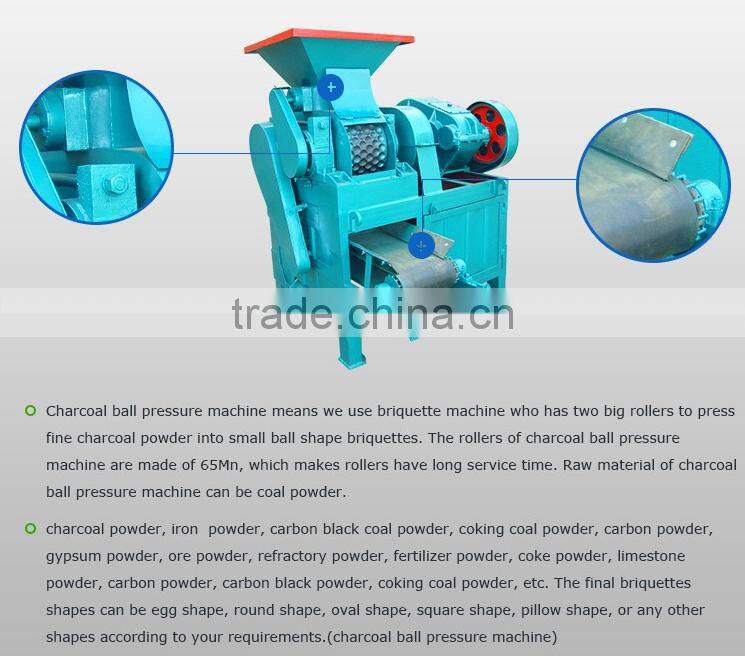

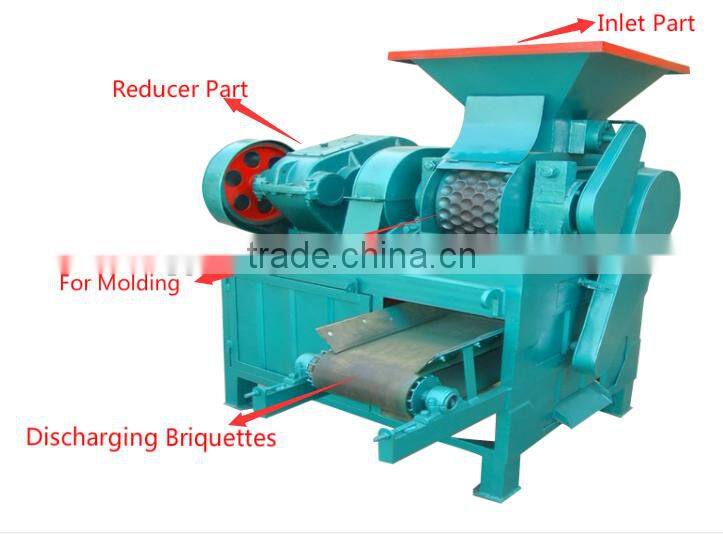

Structure of coal/charcoal ball press machine:
Our coal/charcoal ball press machine consists of three main parts: the feeding part; transmission part; molding part.
1. The feeding part: it is meanly for coal powdery material from hopper evenly into the machine between the rollers for briquetting.
2. The transmission part: it is the main drive system, including the motor, reducer, triangle strip, coupling, driving spindle, open gear.

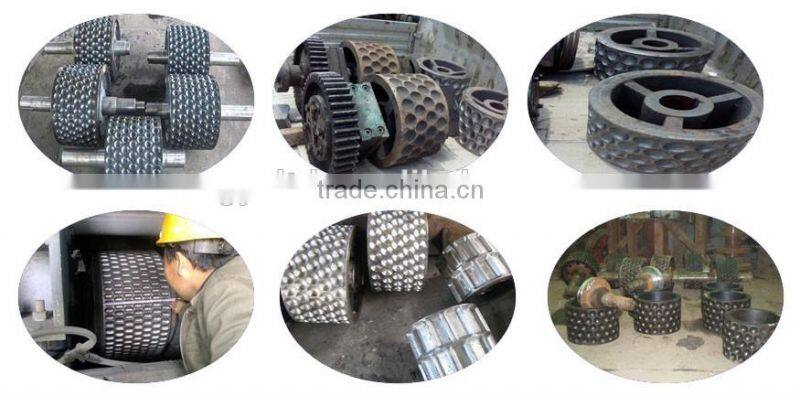

3. The Molding part: this is the core and also the most important of the machine for press the coal powder into coal briquettes.

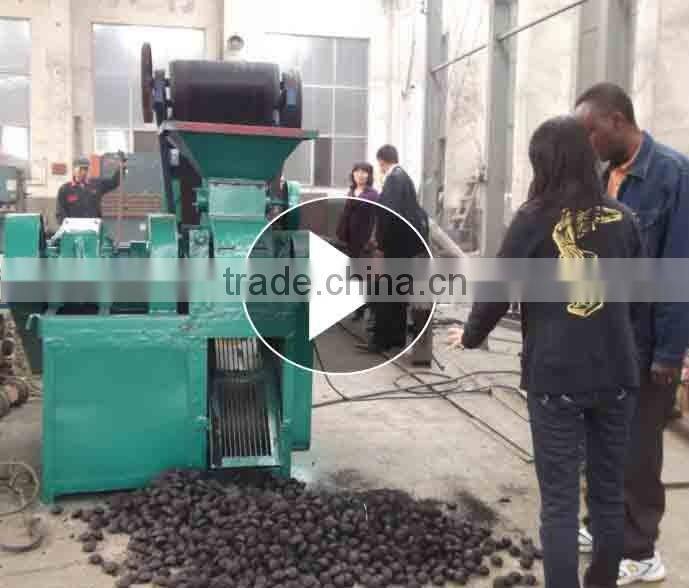

Click the follow picture to see the machine how to work!!!

Final Product

Production line of ball roller-pressing machine
(1).Binder mixer: It is using for dissolving and thicking binder.
(2).Crusher and mixer: It is a machine with the function of crushing and mixing together, crushing the raw material below 5mm, and mixing them uniformly. The moisture need controlled between 25%-30%.

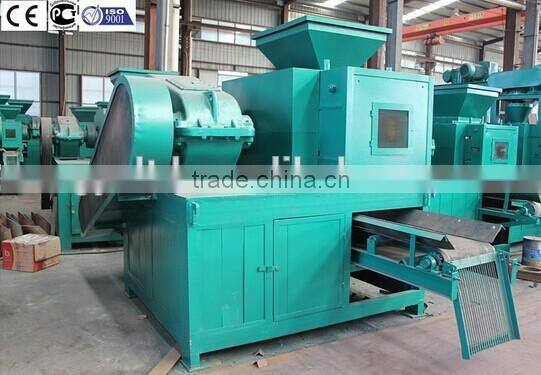

(3).Coal briquette machine: It presses coal powder, charcoal powder, or other powders into different shapes and size.
(4).Dryer. We have vertical dryer, box dryer and mesh belt dryer. I will suggest suitable dryer according to your raw machine, shape and size.

Click the follow picture to see the detail information !!!.

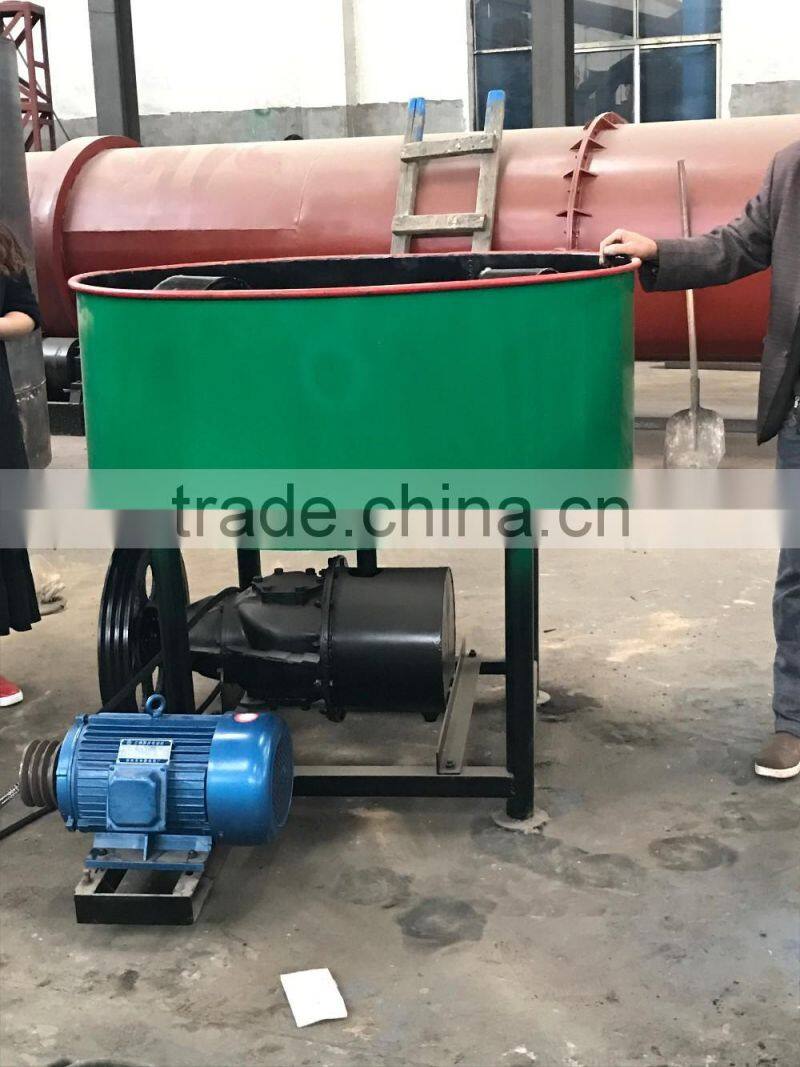

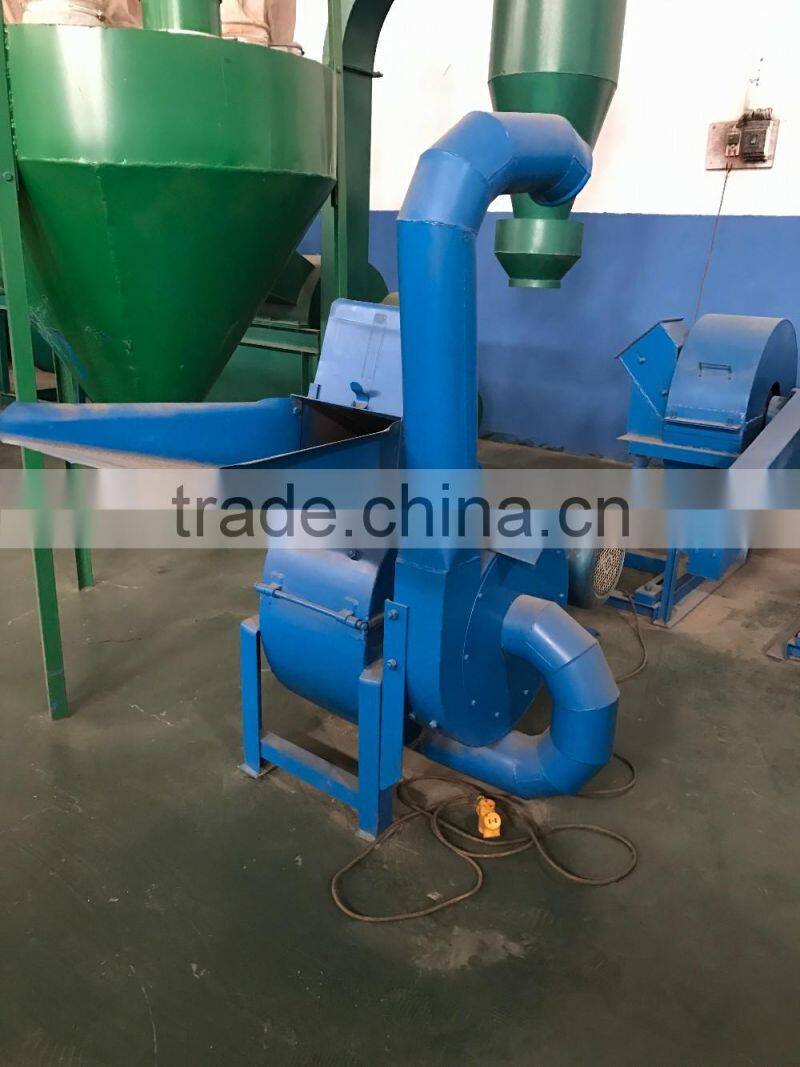

Charcoal Powder Mixer         Charcoal Crusher

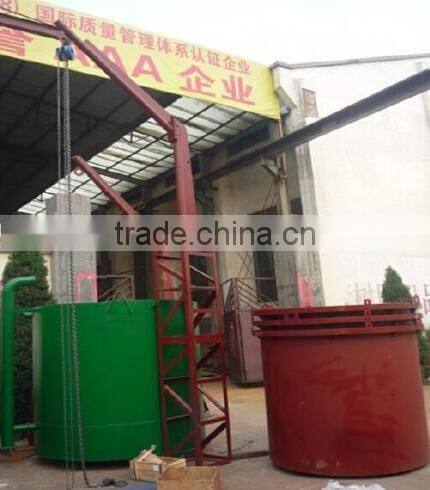

Mesh-belt Dryer               Carbonization Furnace

Honeycomb Briquette       Shisha Charcoal Machine

Machine

Our Service

♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.

♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.

♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
