Multi-functional Extruder Rods Coal Forming Machine
- Qingdao Ningbo or as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hi-tech 180 Kg Per Hour Wood Briquette Machine
-
Most Popular Chromium Powder Briquette Making Machine Manufacturer
-
Coal Charcoal Rods Briquette Making Machine/coal and Charcoal Sticks Briquette Extruder Machine
-
Factory Direct Sale Coal Ball Briquette Machine and Coal Powder Briquette Ball Machine
-
Sawdust Rice Husk Shisha Charcoal Briquette Machine 11-22Pcs per Minute
-
Factory Supply Biomass Sawdust Briquette Charcoal Making Machine Price
Product Details
| Condition | New | Production Capacity | 90% | |
| Motor Type | AC Motor | Power(W) | 7.5kw | |
| Place of Origin | Henan, China | Brand Name | sltd | |
| Model Number | 140 | Dimension(L*W*H) | 2200*1600*800MM | |
| Certification | CE and ISO, ISO9001,CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

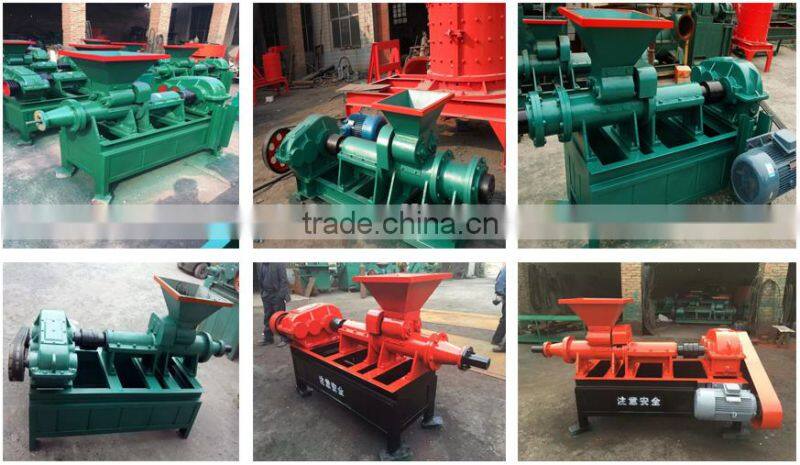

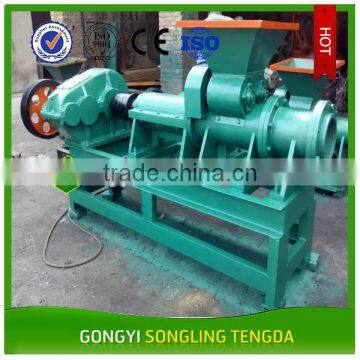

extruder rods coal forming machine
Product specification:
1.Features of extruder rods coal forming machine
a. The lead of feeding screw is big, so the feeding speed is fast; the lead of pushing screw is small, this can save power.
b. High concentricity, resist reverse thrust and reliable working.
c. The sealing parts adopts faultage design, the dirts can leak out through the faultage
d. Drived by V-belt, low noise, and also over load protection.
e. Simple and firm structure, easy operate and maintenance by the workers.

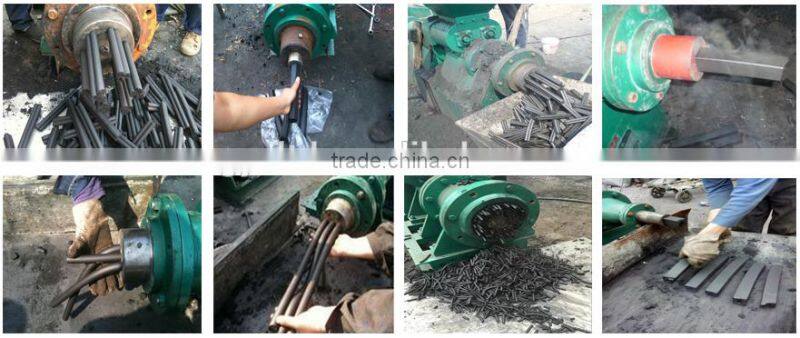

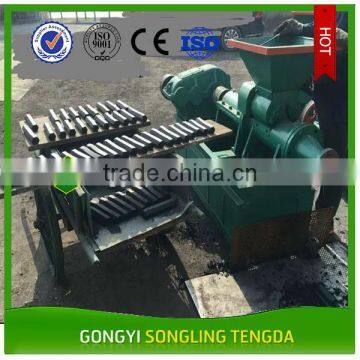

2.Finished products of extruder rods coal forming machine

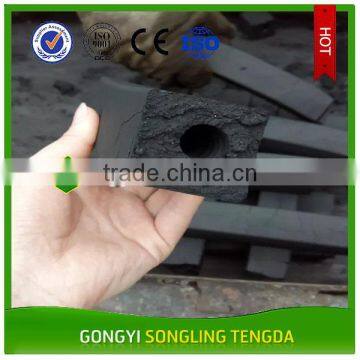

Shapes : The shapes can be various, such as finger shape,cubic shape, bar, hexagon, etc.
Features: High density, high hardness, stable shape, good performance, long burning time, convenient to store and transport.
raw material :powder of coal, charcoal, carbon black and other materials
size: 3- 5mm moisture : 25-30%
3.Technical data
Type Item | MBJ140 | MBJ180 | MBJ210 | MBJ300 | MBJ400 |
|
| ||||||
Capacity for charcoal | 500kg/h | 1000kg/h | 1500kg/h | 2000kg/h | 3000kg/h |
|
capacity for coal | 1000-1200kg/h | 2000-3000kg/h | 3000-4000kg/h | 4000-5000kg/h | 5000-6000kg/h |
|
Dimension of final products | Diameter 20-40mm | diameter 20-60mm | diameter 20-80mm | diameter 20-80mm | diameter 20-80mm |
|
Spindle Speed | 46-60 rev/min | 39-60 rev/min | 35-60 rev/min | 35-60 rev/min | 35-60 rev/min |
|
Quantity of helical blade | 4 | 4 | 4 | 4 | 4 |
|
Motor | Y160m-4 11kw | Y180m-4 18.5kw | Y200L-4 30kw | Y225s-4 37kw | Y315m-4 160kw |
|
Y160L-4 15kw | Y180L-4 22kw | Y225s-4 37kw | Y225m-4 45kw |
| ||
Speed reducer | ZQ350 | ZQ400 | ZQ500 | ZQ650-750 | ZQ850 |
|
Bearing | 7511,211,210,1305 | 7614,314,313,1206 | 7619,319,318,1206 | 32320,320,319,1207 | 32322,322,321 |
|
| ||||||
Note | This is the minimum speed of spindle. It can be adjusted on the basis of the current intensity, load and output. | |||||

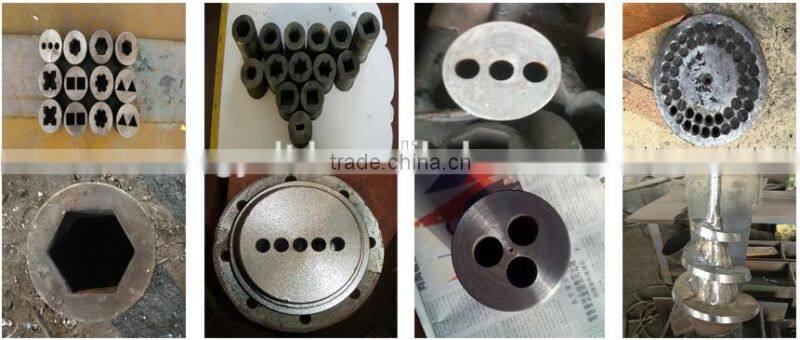

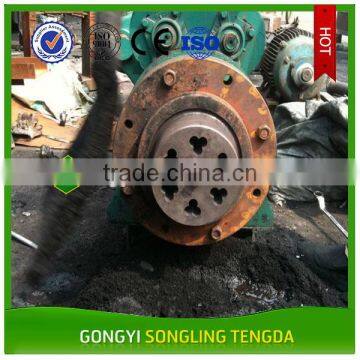

4.Moudles:

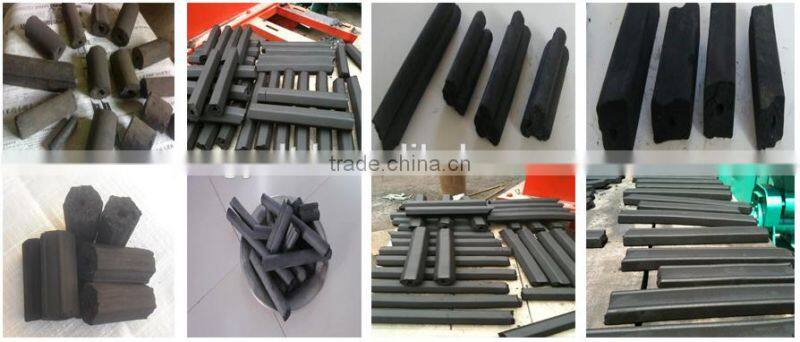

5. different shape of final charcoal briquettes:

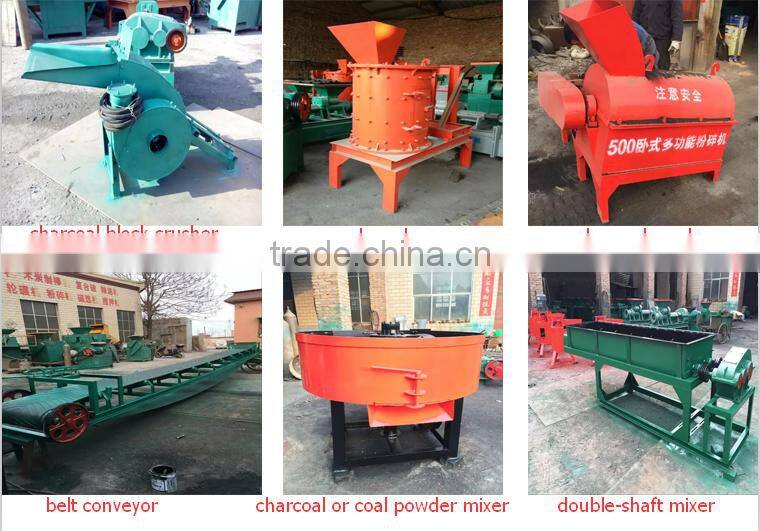

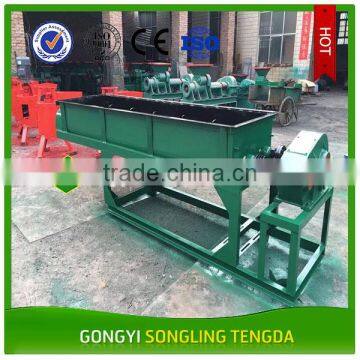

6. related charcoal briquette machines:
6.customer visit:
7. contact information:
