Home > Products > Biomass Gasifier > 300Nm3 to 20000Nm3 Biomass Fluidized Bed Gasifier for Boiler and Generator Wheat Straw Gasification Power Plant
300Nm3 to 20000Nm3 Biomass Fluidized Bed Gasifier for Boiler and Generator Wheat Straw Gasification Power Plant
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | DEBO | |
| Model Number | 300Nm3 to 20000Nm3 | |||
| Electricity Generator Type | Biomass Gasification |
Product Description
Fluidized Gasifier Stucture
1 Biomass Feeding Devices
It consist of buffer silo and screw conveyor . Screw conveyor is used to send satisfied biomass into furnace. The sent biomass amount is regulated
based on the load of gasifier
2 Gasifier body
Gasifier body is composed of auto ignition devices, air distributing chamber , Dense-phase zone ,and floating zone . Biomass is gasified here
and converted into hot gas .

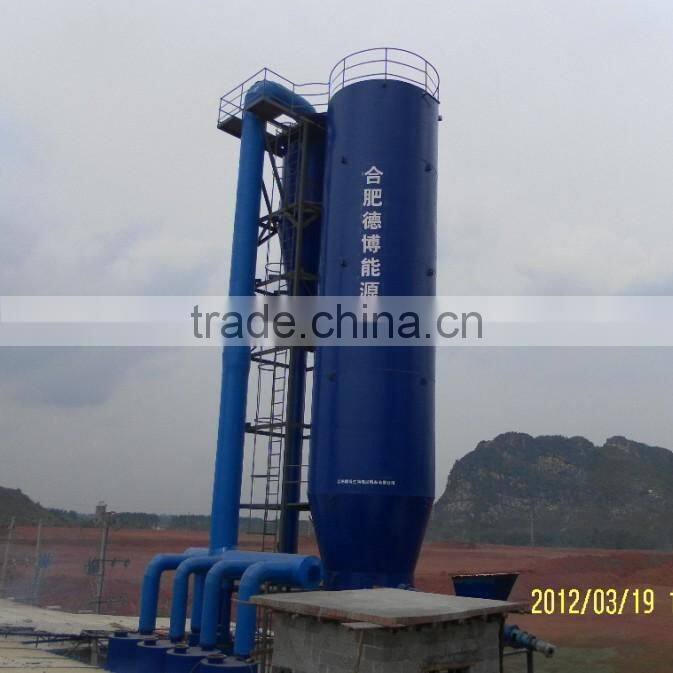

P1 Biomass Fluidized Bed Gasifier

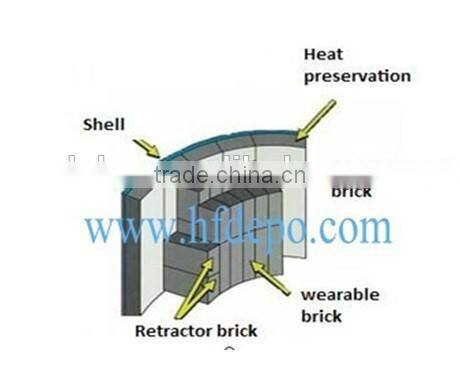

P3 Insulation and refractory layers Inner wall

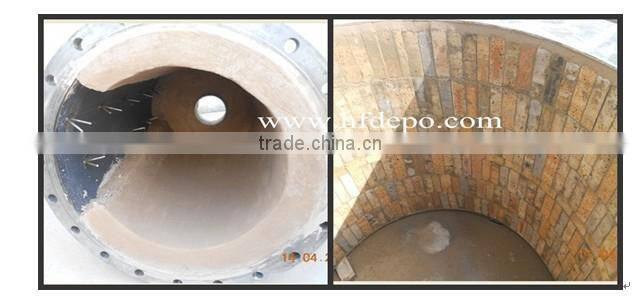

P4 Inner layer pictures
3 Ignition Devices
Ignition Devices is fixed on the front of air distributor to ignite gasifier automatically . The fuel is diesel .
4 Sand Feeding Device
Sand Feeding Devices consist of sand silo , screw conveyor . Satisfied sand is sent to furnace . to regulate rotate speed of sand feeding screw conveyor control sand amount fed into furnace so as to meet the demand of gasification system.
5 Air Distributing Device
Air distributor is composed of air blower , air distributor and wind cap . Primary air is sprayed to dense-phase zone to make sure evenly fluiding and gasifying.in the middle of air distributor ,slag discharging pipe is fixed .
