Biomass Gasification Power Generation System Biomass Gas Generator Wood Chips Gasifier Power Plant

we offer whole biomass gasification power plant and biomass gas engine and generator

About Biomass gasification power plant:

convert various biomass energy into fuel gas through gasification and then supply to the power generating set for power generation.

the new system will not only realize the effective use of renewable energy resources but also reduce the environment pollution caused by various organice wastes

Specifications:

Models &specifications300kw-6mw etc

applicable raw materials: all organic wastes, agriculture waste, forestry waste ,like rice husk , wood chips, wheat straw

Efficiency: 1.2~1.5kg produce 1kwh electricity .

Emission: no dirty water emission . dirty water will be recycled .

Gasifier type: downdraft fixed bed gasifier, updraft fixed bed gasifier and fluidized bed gasifier.

we will depend on the feature of biomass to use difference gasifier . different gasifier has different feastures .

About Biomass Gas engine and Generator

1.IC Engine
Model                                                           8300
Cylinder NO.                                                  8
Rated Rotate Speed                                         500r/min
Rated Powr                                                   500kW
Direction of Rotation

(see from the end of flywheel)                       Clockwise
Starting Mode                                             Compress Air
Exhaust Temperature                                    ≤600℃
Gas Pressure kPa                                          ≥2.5
Gas Inlet Temperature                                 ≤40℃
Oil Consumption Rate                                  ≤1.0g/kW•h
2.Generator
Model                                                         400GFM
Voltage                                                        400 V
Rated Power                                                450 kW
Power Factor                                              0.8(Lagging)
Excitation mode                                             Brushless
Phase &Connection                                  3 phase 4 line

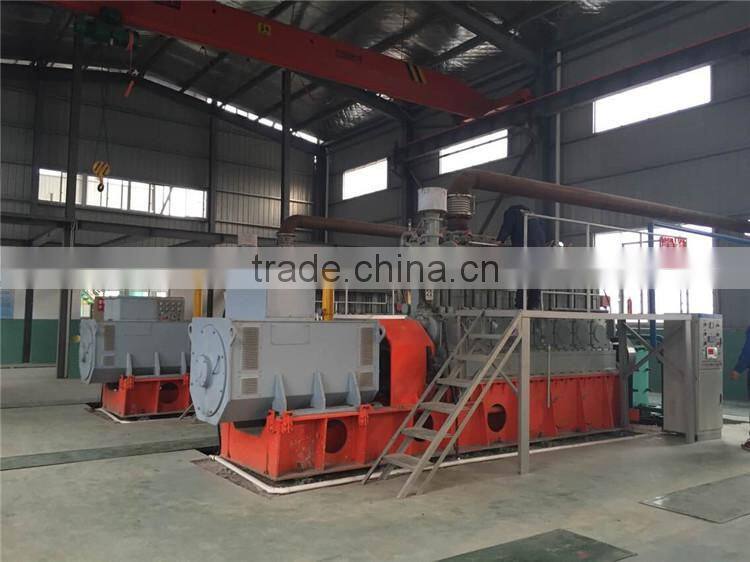

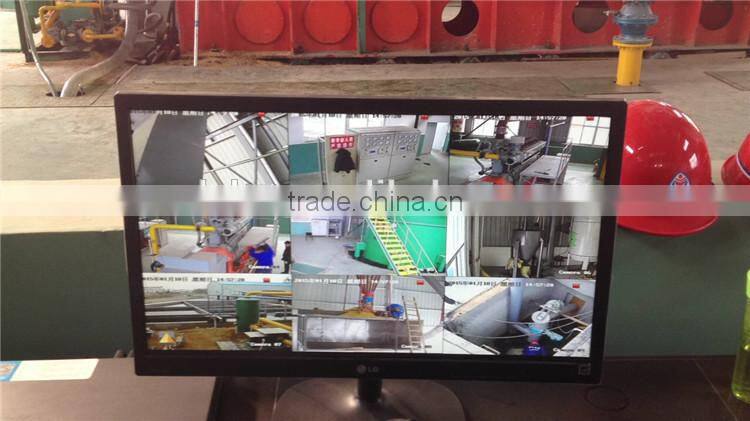

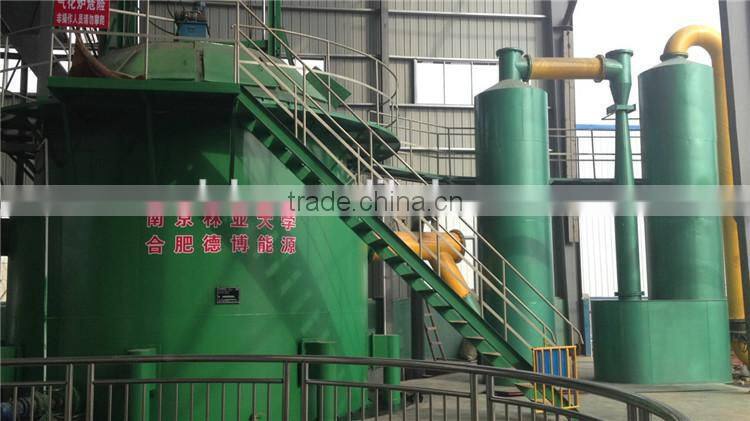

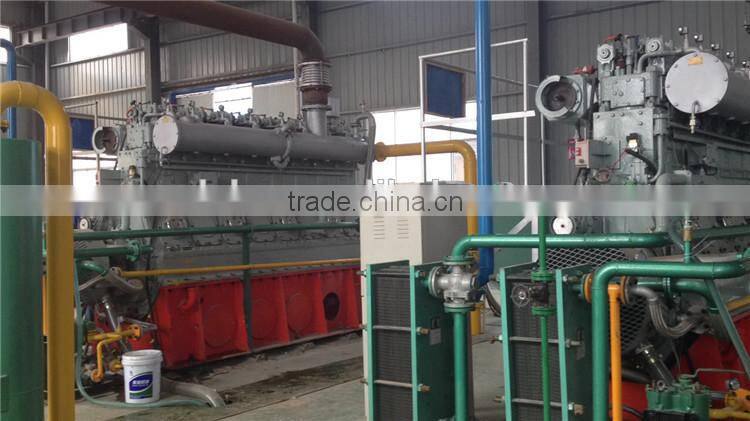

Some pictures during installation
