Product Details

Place of Origin	Anhui, China		Brand Name	DEBO
Model Number	DB-LG-1000		Application	Other, Heating Oil

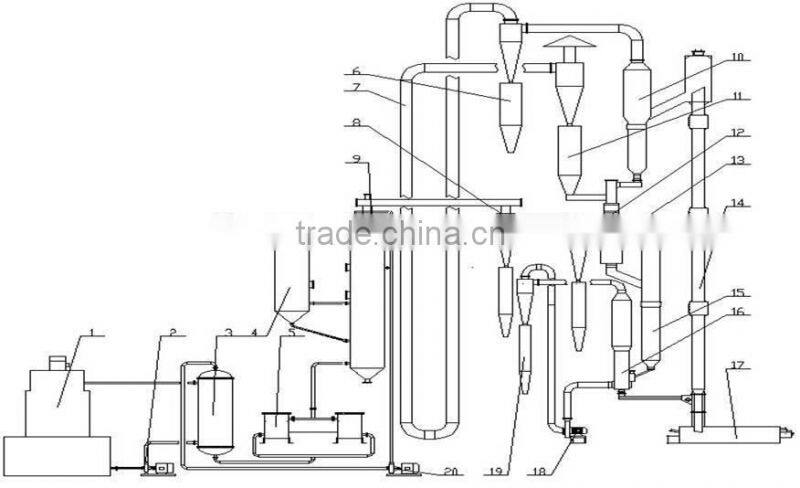

Comprehensive the characteristic of biomass, To design 1 set biomass pyrolysis system to output 1000kg/h oil. The system consist of circulation fluidized bed combustion system, Pyrolysis system ,Condensate system, Separating system and Auxiliary System. biomass is sent to pyrolysis system. Intensively mix with heat carrier and reacted to produce gas (include Gaseous oil and Noncondensing fuel gas ) and charcoal .Hot Gas pass into condensing system through Separating system. Gaseous Oil is collected by condensing system. The rest fuel gas is sent to combustion system after purifying .the fuel gas from combustion system can be used for drying wheat straw . Try your best to reduce the humidity of biomass In order to avoid water from wheat straw mix with oil. To reasonable design and control straw stay and reaction time inside reactor have wheat straw convert to oil efficiently .Below is the diagram
1,cooling tower 2,circulation pump 3,Heat exchange pipes4,setting chamber5,filter 6,cyclone 7,dryer8,2 step cyclone 9,Spray Tower 10,top carrier chamber11,silo,12,first step cyclone 13,Pyrolysis chamber14,horizontal combustor 15,down carrier chamber16,separating chamber 17,vertical combustor 18, separating fan 19,separating cyclone 20,Circulation oil pump

working parameter of system

No	Item	Unit	Specifications	Remark
1	Biomass		Wheat straw
2	Humidity	%	10
	Pyrolysis system
1	Biomass buffer time	min	>25
2	Regulation mode		Frequency converter
3	Transportation mode		Pneumatic transmission and screw conveyor
4	Model		DB-L-1500
5	Rated biomass consumption	kg/h	2000
6	Oil amount	kg/h	≥1000
7	Charcoal amount	kg/h	≥370
8	Ignition mode		Diesel burner
9	Ignition time		<2h
10	Running Temperature of combustion chamber	℃	600~850
11	Running temperature of Pyrolsysis chamber	℃	500~600
	Quality of Oil
1	Heat value	MJ/KG	16~23
2	Viscosity	Cp	50~120
3
	Charcoal quality
1	carbon content	%	≥75
