Home > Products > Biomass Gasifier > 2000kw Biomass Gasifier to Burn Kilns Boilers Dryer Biomass Gasification Power Plant Wood Gasifier
2000kw Biomass Gasifier to Burn Kilns Boilers Dryer Biomass Gasification Power Plant Wood Gasifier
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | DEBO | |
| Model Number | DEBO-6000 | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
our gasifier can supply gas to power generator, and also our gasifier can supply gas to boiler ,kilns ,dryer
the gas rate can be 300Nm3 to 20000Nm3 per hour
Product Description

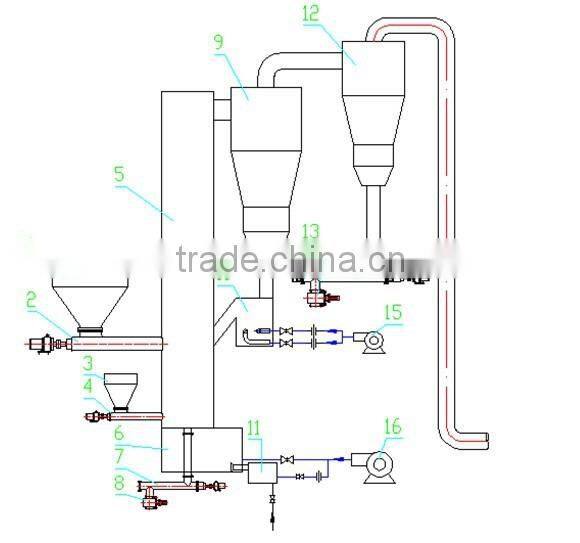

1. Diagram of biomass gas to boiler,dryer ,kilns.
Draw1 technical process diagram
1. Biomass silo 2. Biomass feeding screw conveyor 3. Sand silo 4. Sand feeding screw conveyor 5. Gasifier 6. Pressure-equalizing chamber 7. Slag discharging screw conveyor
8. Air lock 9. Cyclone 10 . Ash returning device 11. Diesel burner 12 cyclone 13 ash discharging srew conveyor 14 air lock 15 fan 16 air blower .
2.Gas Composition
Item |
| Data |
CO | % | 20.3~24.1 |
CO2 | % | 6.3~9.8 |
CH4 | % | 3.2~4.8 |
CnHm | % | 0.3~0.7 |
H2 | % | 6.2~9.8 |
N2 | % | 40.1~46.6 |
H2O | % | 13.2~17.5 |

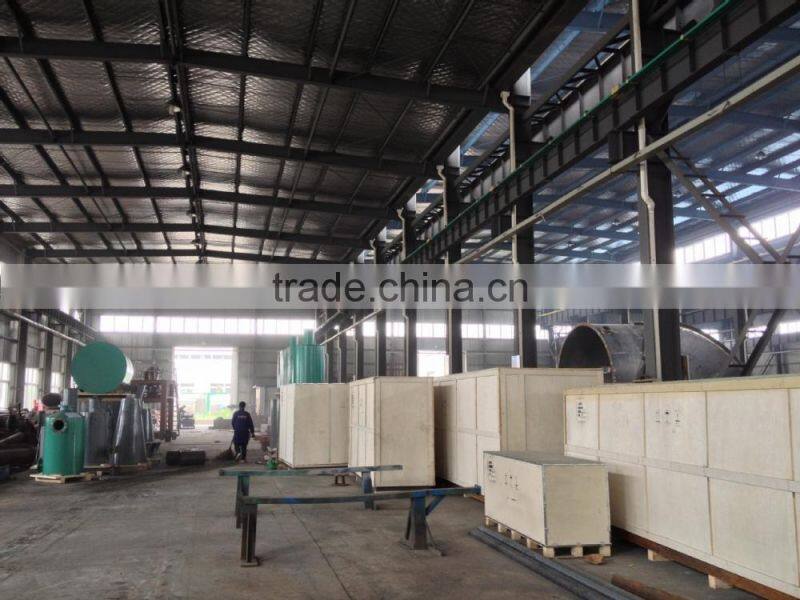

Production Line
